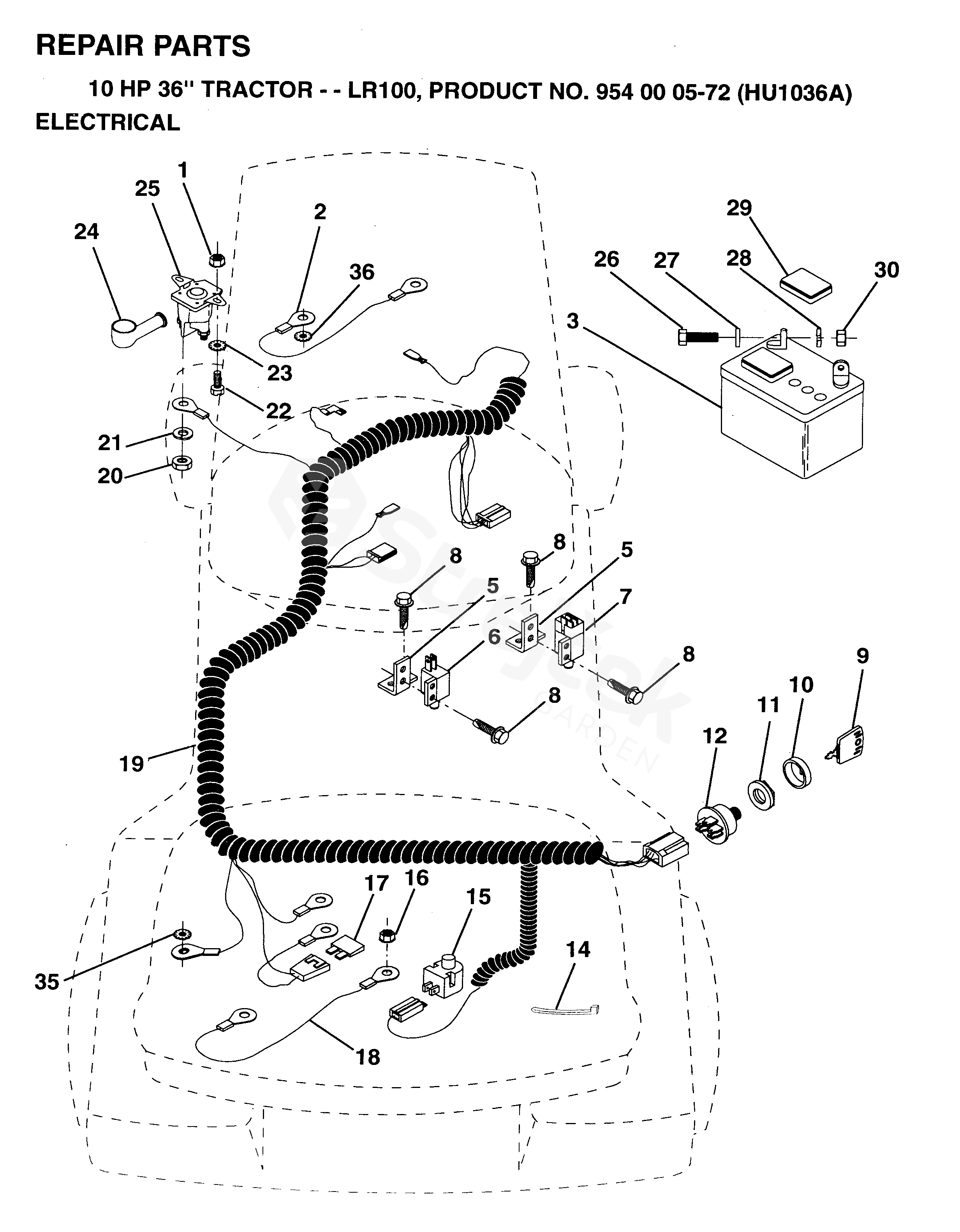

Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > LR100 LR100, 954000572, 1995-03 > ELECTRICAL
Back to
ELECTRICAL
LR100 LR100, 954000572, 1995-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LR100, 954000572, 1995-03
1 MATICE 873510400
2 CABLE ASSY 532128353
3 BATTERY 532133909
5 BRACKET 532108236
6 SWITCH 532104445
7 SWITCH 532109553
8 SCREW 817021008
9 KEY 532122147
10 PROTECTOR 532123620
11 NUT 532124211
12 SWITCH 532125104
14 STRAP 532124756
15 SWITCH 532121305
16 NUT 873510500
17 FUSE 532108824
18 CABLE ASSY 532108423
19 CABLE ASSY 532131467
20 NUT 873350400
21 WASHER 810090400
22 BOLT 874780408
23 WASHER 811050400
24 COVER 532131563
25 SOLENOID 532138406
26 BOLT 874760412
27 WASHER 819091016
28 WASHER 810040400
29 COVER 532121264
30 NUT 873220400
35 PODLOŽKA 811050600
