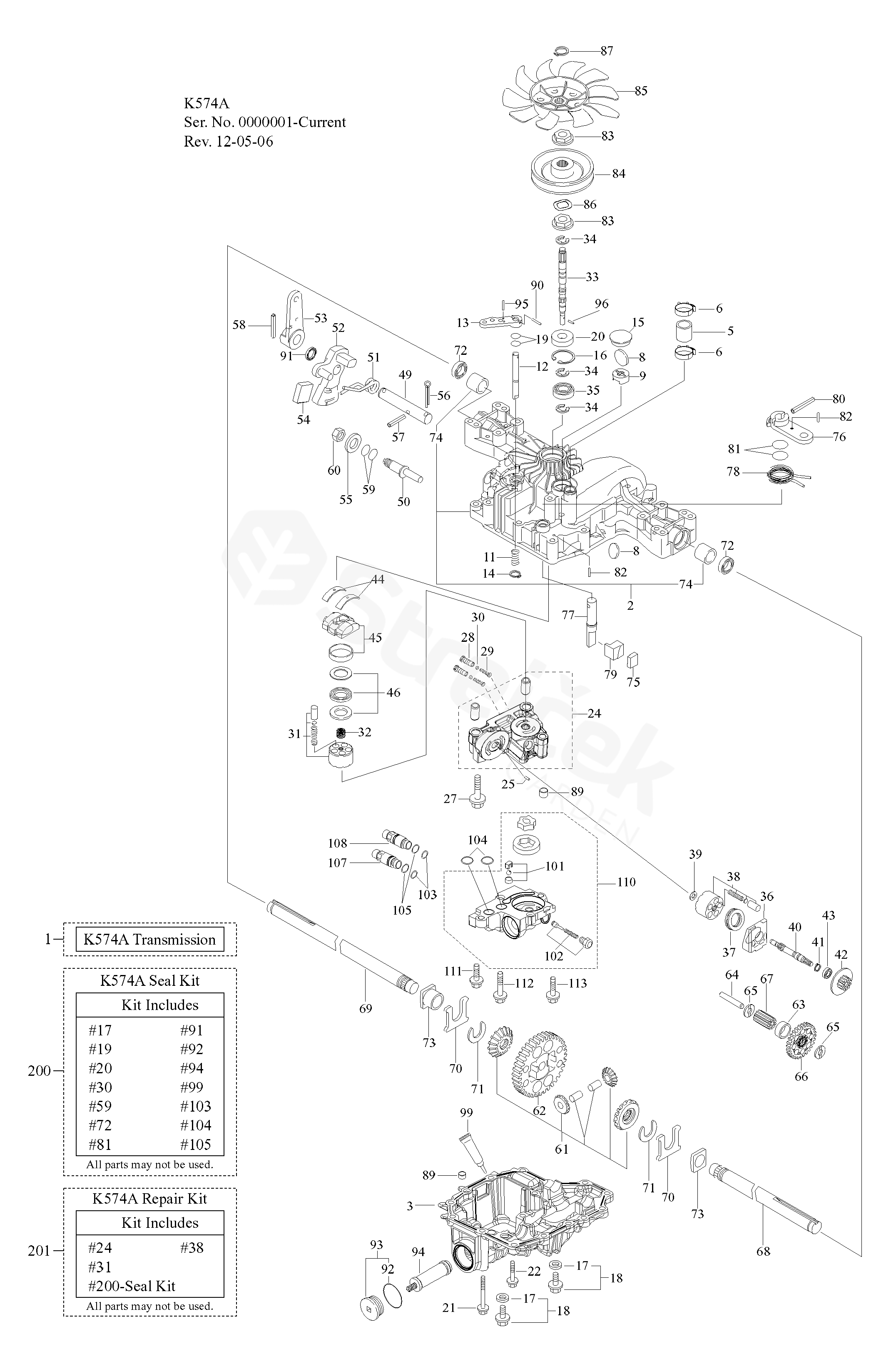

Spare parts > Husqvarna > ACCESSORIES AND TOOLS > ENGINE TRANSMISSION K574A, 2007-07 > TRANSMISSION
Back to
TRANSMISSION
ENGINE TRANSMISSION K574A, 2007-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K574A, 2007-07
1 PŘEVODOVKA 544116101
2 UPPER CASE KIT 502452901
3 TRANSMISSION COVER 502852001
5 TUBE 502451601
6 HOSE CLAMP 506987001
8 MAGNET 535402829
9 MAGNET HOLDER 502452001
11 SPRING 502460101
12 SHAFT 502852101
13 LEVER 535402817
14 RETAINING RING 535402849
15 PLUG 535402832
16 RETAINING RING 535402850
17 WASHER 506957501
18 BOLT 535402852
20 SEALING 506957201
21 BOLT 502852201
22 SCREW 535402828
24 PUMP HOUSING 502852301
25 PIN RETAINING SCREW 535402858
27 BOLT 535402863
28 VALVE 535402860
29 SPRING 535402861
30 FILTER 535402862
31 HOUSING 535402864
32 SPRING 535402869
33 SHAFT 502852501
34 CLIP 535402807
35 BEARING 535402871
36 HOUSING 502852601
37 THRUST (BALL) BEARING 502460001
38 BLOCK 502852701
39 WASHER 535402879
40 MOTOR SHAFT 502451701
41 RETAINING RING 535402881
42 GEAR 535402882
43 BEARING 535402883
44 BEARING 535402884
45 PLATE 502852801
46 BEARING KIT 523058901
49 CONTROL SHAFT 502452201
50 SHAFT 502853001
51 TORSION SPRING HEAVY 502452101
52 ARM 535414951
53 CONTROL LEVER 502453201
54 PLATE 535402891
55 WASHER 535402813
56 COTTER PIN 1/8" * 3/4" 502452401
57 SPRING PIN 6 * 36 502461801
58 PIN RETAINING SCREW 535402809
60 NUT 506956601
61 DIFFERENTIAL 535402899
62 PINION 535414604
63 SLEEVE 535414605
64 SHAFT 535414606
65 WASHER 502460701
66 PINION 535414608
67 FINAL PINION GEAR (10T) 502452701
68 SHAFT 535414610
69 SHAFT 535414611
70 WASHER 535414612
71 RETAINING RING 535414613
72 SEALING 535402837
73 BUSHING 535414614
74 BUSHING 502853301
75 SPACER 535414616
76 LEVER 535402838
77 SHAFT 535414617
78 RETURN SPRING 535402839
79 RETAINER 535414618
80 PIN RETAINING SCREW 535402840
82 PIN RETAINING SCREW 535402841
83 DISTANCE 506986601
84 PULLEY 502451901
85 FAN 506986801
86 SPRING WASHER 506986501
87 CIRCLIP 735311500
89 PIN RETAINING SCREW 535414699
90 PIN RETAINING SCREW 535402816
91 SEALING 535402846
92 O-RING 535402820
93 COVER 535402818
94 FILTER 535402819
95 PIN RETAINING SCREW 535402833
96 PEN 502853401
101 3RD CHECK VALVE 502451501
102 VALVE ASSY 502853701
105 O-RING 502462001
107 PIPE ASSY 502851601
108 PIPE ASSY 502851701
110 PUMP HOUSING 502853901
111 BOLT 502854001
112 SCREW 502854101
113 BOLT 502854201
200 SEALING 502851801
