Spare parts > Husqvarna > ACCESSORIES AND TOOLS > ENGINE TRANSMISSION K55, 2003-03 > HOUSING
Back to

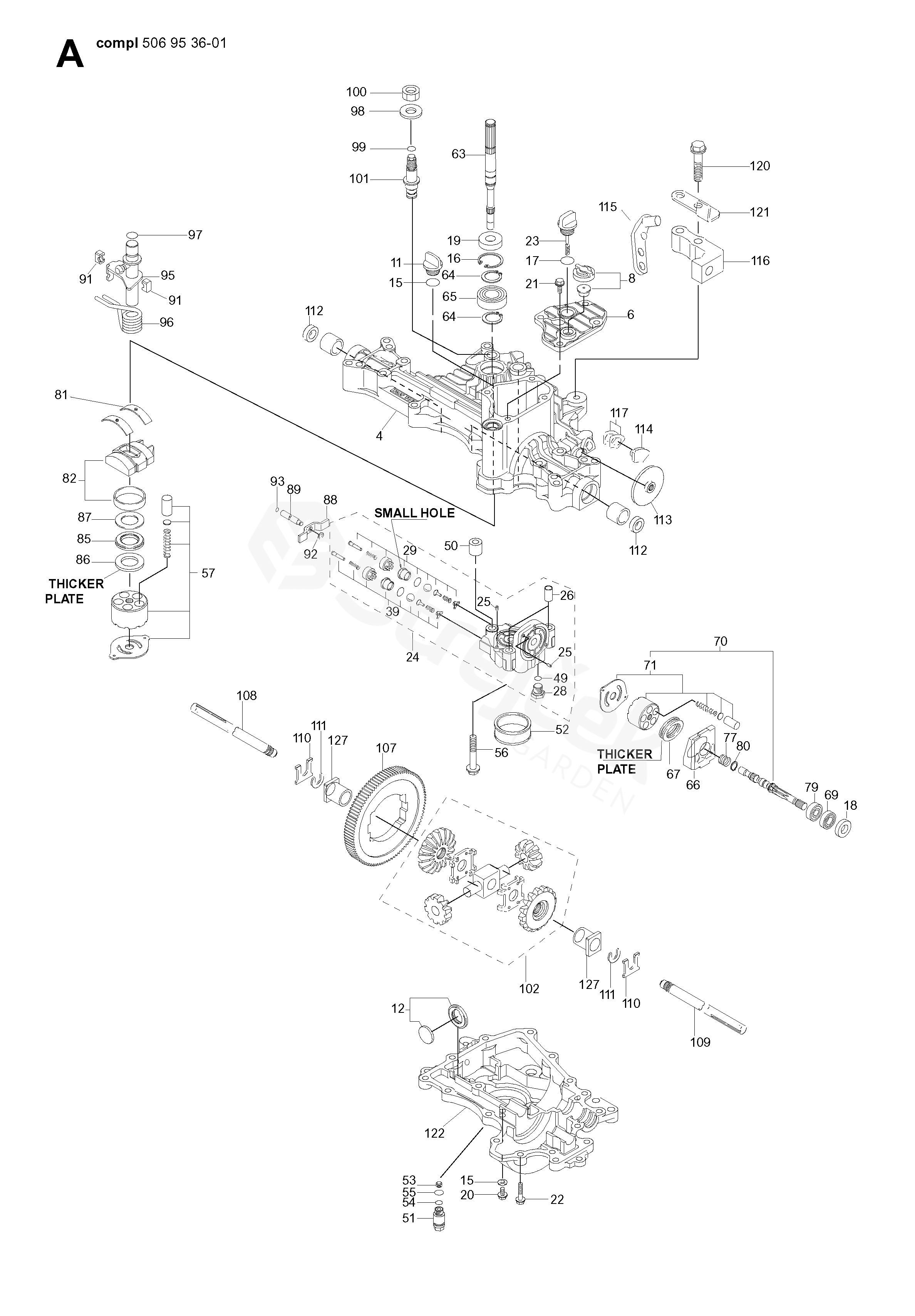

HOUSING
ENGINE TRANSMISSION K55, 2003-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K55, 2003-03
1 TRANSMISSION 506953601
4 HOUSING 535414779
6 COVER 535414739
8 VALVE 535414740
11 COVER 535414741
12 MAGNET 535414694
15 O-RING 535402822
16 RETAINING RING 535402850
18 SEALING 535414742
19 SEALING 506957201
20 BOLT 535414743
21 BOLT 535414945
22 SCREW 535402828
23 COVER 535414947
24 HOUSING 535414745
25 PIN RETAINING SCREW 535414746
26 PIN RETAINING SCREW 535414747
28 PLUG 535414748
29 VALVE 535414749
38 WASHER 506957501
39 VALVE 535414751
49 O-RING 535414752
50 COLLAR 535414753
51 CONNECTOR 535414754
52 FILTER 535402859
53 PLUG 535414755
55 O-RING 535402814
56 BOLT 535414756
57 CYLINDER BLOCK 535414757
63 SHAFT 535414758
64 RETAINING RING 535402881
65 BEARING 535402871
66 HOUSING 535414759
67 BEARING 535402873
69 BALL BEARING 535414761
70 SHAFT 535414763
71 KIT 535414781
79 BALL BEARING 535414762
81 THRUST METAL 535414764
82 PLATE 535402885
85 BEARING 535402888
86 PLATE 535402889
87 PLATE 535402890
88 LEVER 535414765
89 PIN RETAINING SCREW 535414766
91 SHIFT BLOCK KIT 535414767
92 SNAP RING 535414768
93 O-RING 535414769
95 SHAFT 535414782
96 SHAFT 535414770
97 O-RING 535414619
98 WASHER 535402813
99 O-RING 535402815
100 NUT 506956601
101 FULCRUM 535414771
102 DIFFERENTIAL GEAR KIT 535414772
107 FINAL GEAR 535414774
108 SHAFT 535414775
109 SHAFT 535414776
110 HOLDER 535414712
111 RING 535414777
112 SEALING 535402837
113 DISC 531006501
114 BRAKE PAD 531006502
115 BRAKE LEVER 531006503
116 HOLDER 531006504
117 SHIM 531006505
120 SCREW 531006506
122 HOUSING 535414783
127 BUSHING 535414778
