Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > LT100 LT100, 1992-03 > TRANSMISSION
Back to

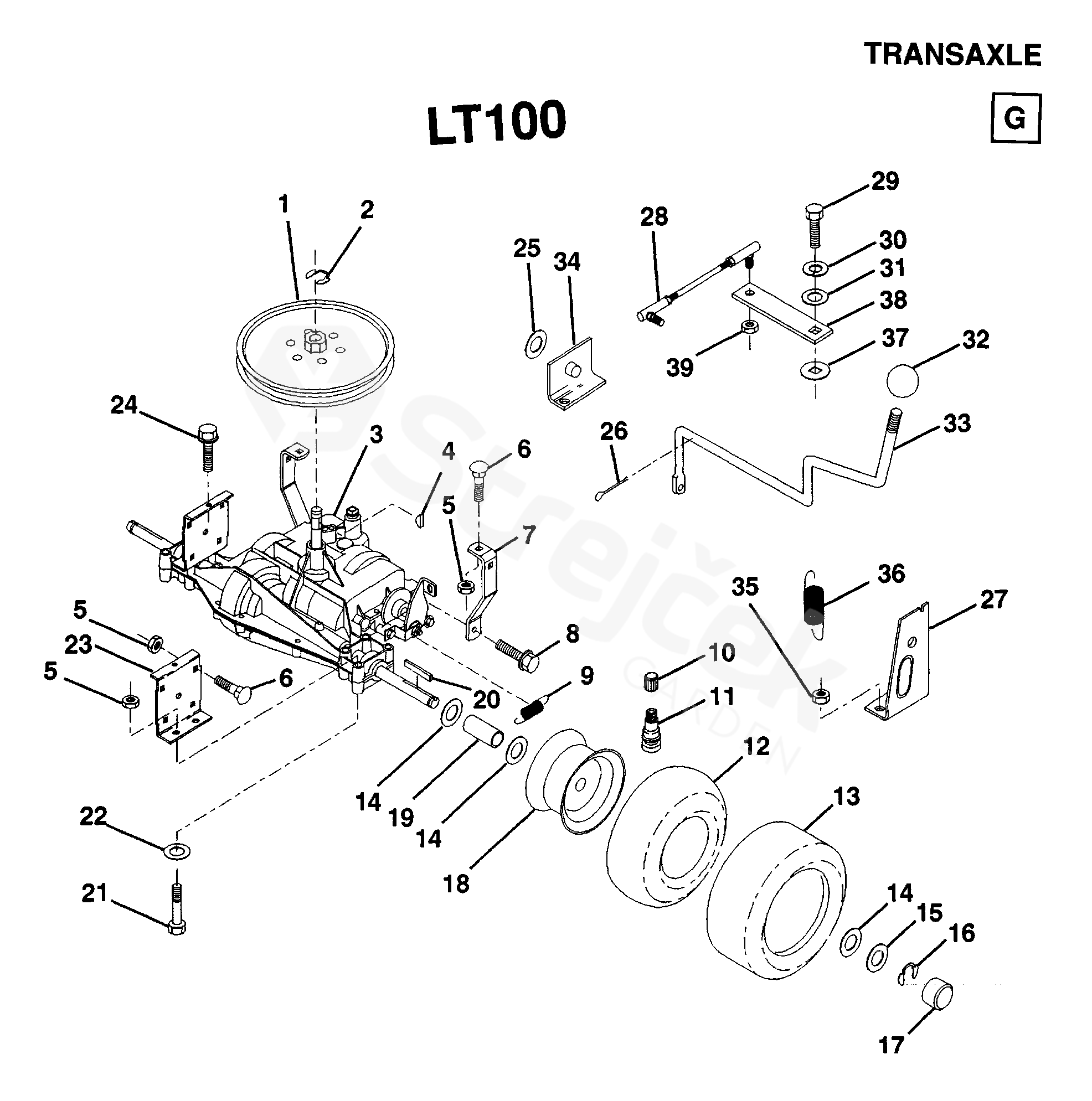

TRANSMISSION
LT100 LT100, 1992-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT100, 1992-03
1 PULLEY 532123385
2 CLIP 812000028
3 GETRIEBE 532127052
4 WOODRUFF KEY 532125096
5 MATICE 873680500
6 BOLT 872140506
7 HOLDER 532123378
8 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
9 SPRING 532110422
10 CAP VALVE 532059192
11 NIPPLE 532065139
12 HOSE 532008134
13 TIRE 506802701
14 WASHER 532121749
15 PODLOŽKA 532121748
16 RETAINER RING 812000001
17 HUB CAP 532104757
18 RIM, REAR 532124973
19 SPACER 532123409
20 KEY 532123583
21 BOLT 874760540
22 WASHER 819111416
23 BRACKET 532123377
24 BOLT 874760514
25 819176116
26 SPLIT PIN 876020416
27 BRACKET 532128084
28 JOINT 532126293
29 BOLT 871040412
30 WASHER 810040400
31 WASHER 819091413
32 KNOB 532106933
33 GEAR LEVER 532128215
34 BRACKET 532124600
35 MATICE 873680500
36 SPRING 532128085
37 WASHER 532105701
38 LEVER 532126292
39 NUT 873810500
