Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > LT120 LT120, 1992-03 > ELECTRICAL
Back to

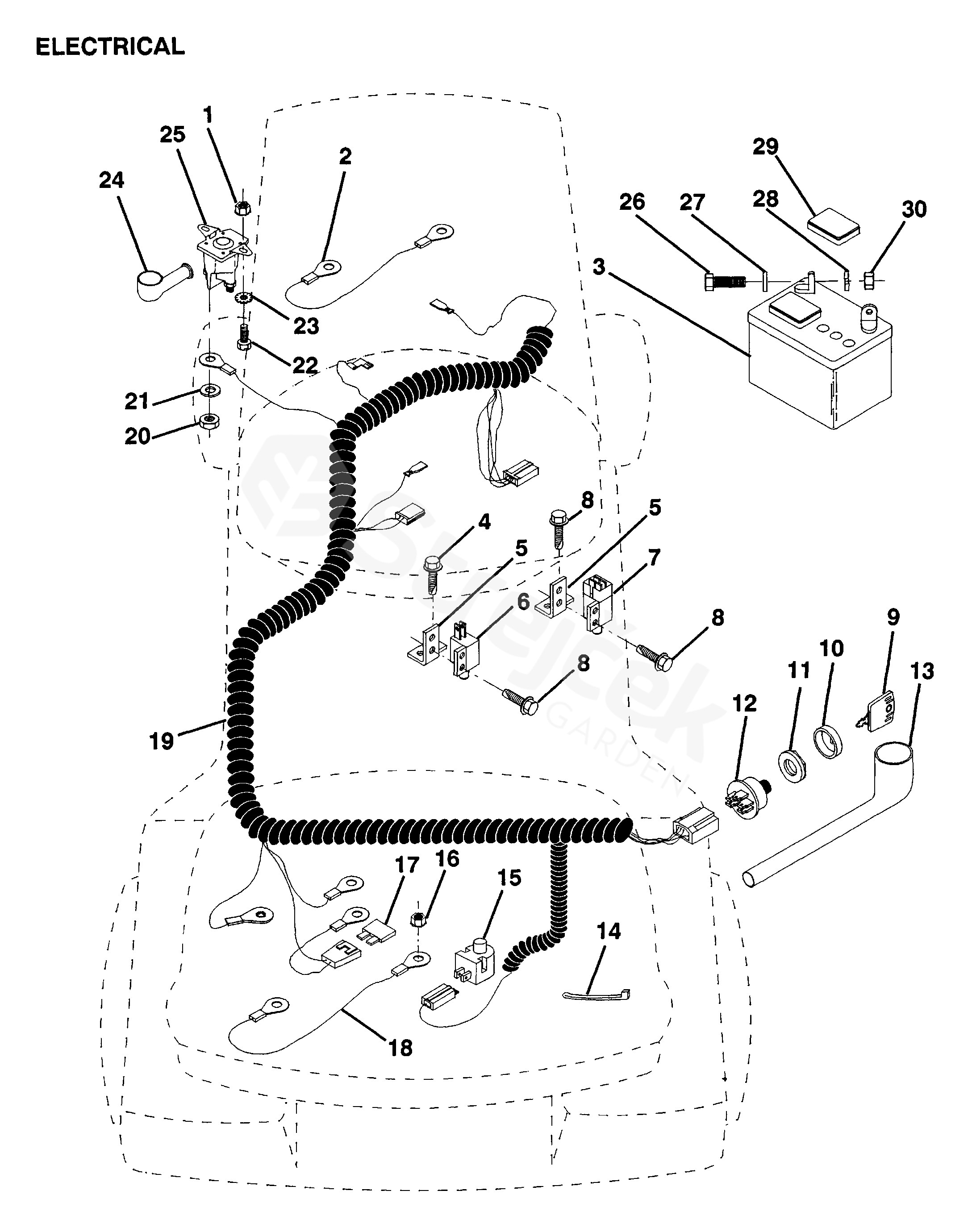

ELECTRICAL
LT120 LT120, 1992-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT120, 1992-03
1 NUT 873220400
2 CABLE 532131562
3 BATTERY 506788801
4 SCREW 817211010
5 BRACKET 532108236
6 SWITCH 532104445
7 SWITCH 532109553
8 SCREW 817021008
9 KEY 532122147
10 PROTECTOR 532123620
11 NUT 532124211
12 SWITCH 532125104
13 PROTECTOR 532124083
14 STRAP 532124756
15 SWITCH 532121305
16 MATICE 873680500
17 FUSE 532108824
18 CABLE 532002955
19 CABLE ASSY 532131561
20 NUT 873680400
21 WASHER 810040400
22 BOLT 874760412
23 WASHER 810040400
24 COVER 532000719
25 SOLENOID LT10/36 532109081
26 BOLT 874760412
27 WASHER 819091016
28 WASHER 810040400
29 COVER 532121264
30 NUT 873220400
