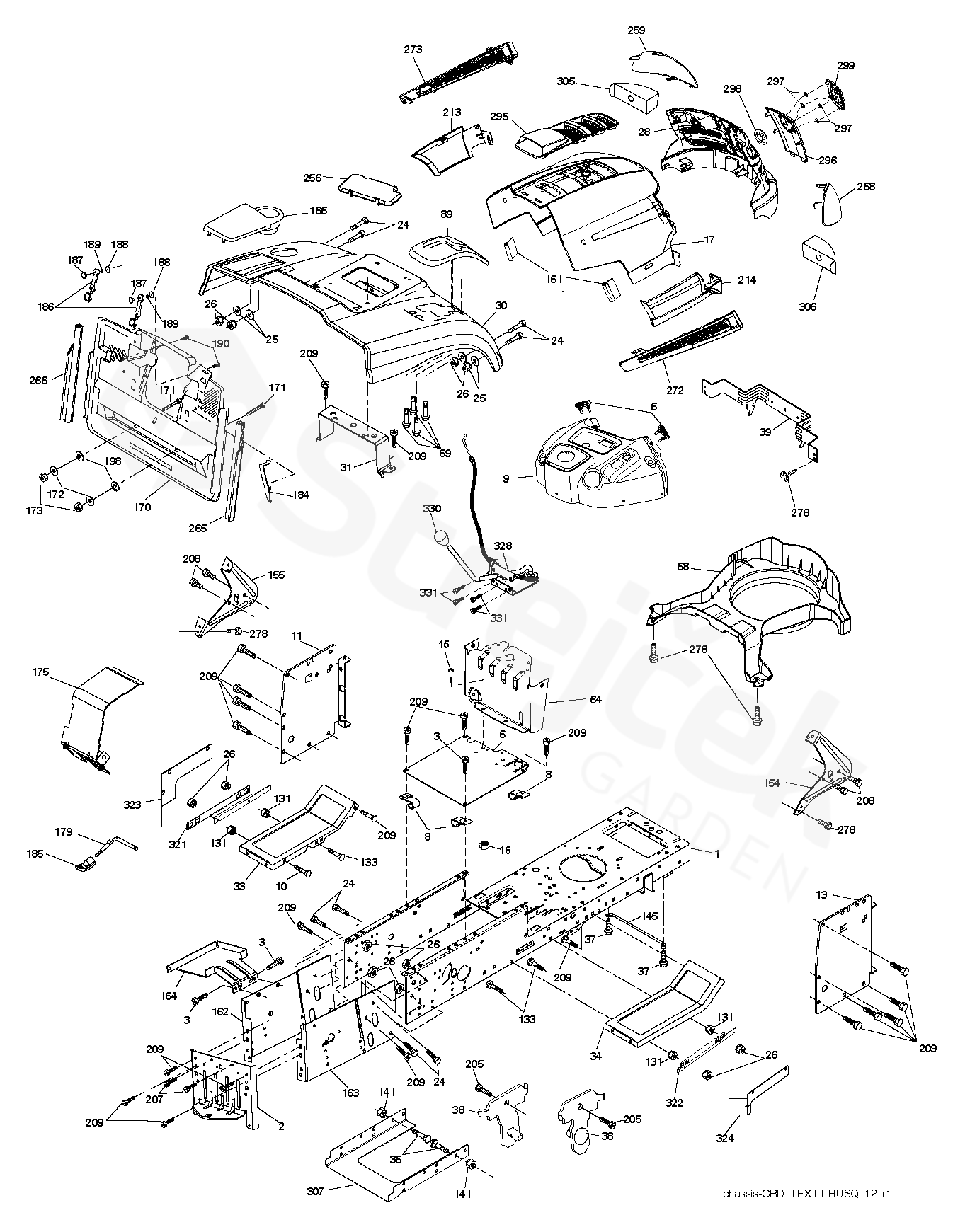

CTH192 CTH192, 96061031700, 2010 - 12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For CTH192, 96061031700, 2010 - 12

1	CHASSIS	532174620
2	DRAWBAR	532180384
3	SCREW	817060612
5	DAMPING PIECE	532407590
6	PLATE	532184419
8	CLIP	532126471
9	DASH	532440603
10	BOLT	872140610
11	DASHBOARD	532174996
13	PANEL	532175149
15	SCREW	874180512
16	NUT	873510500
17	HOOD	532441267
24	BOLT	874780616
25	PODLOŽKA	819131312
26	NUT	873800600
28	GRILLE	532426963
30	FENDER	532441265
31	BRACKET	532165156
33	FOOTREST	532181057
34	FOOTREST	532181058
35	BOLT	872110606
37	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
38	BRACKET	532181748
39	BRACKET	532407807
58	AIR CONDUCTOR	532407537
64	DASH	532439325
69	SCREW	532142432
89	DASH	532439109
131	NUT	873220600
133	BOLT	872110608
141	MATICE	873900600
145	ROD	532409167
154	BRACKET	532408122
155	BRACKET	532408123
161	DAMPING PIECE	532404742
162	BRACKET	532180382
163	BRACKET	532180383
164	SUPPORT	532165605
165	COVER	532441516
170	COVER	532199488
171	5/8-11 NUT TOP LOCK	872140620
172	WASHER	819132016
173	MATICE	873510600
175	DOOR TRAP	532188203
179	ROD PIVOT FBI	532188202
184	BRACKET	532174662
185	KNOB	532441416
186	LATCH	532160793
187	NUT	532125004
188	WASHER	819061216
189	WASHER	810071000
190	SCREW	871081010
198	PODLOŽKA	532168937
205	SCREW	817490608
207	SCREW	817670508
208	SCREW	817670608
209	SCREW	817000612
213	SKIRT	532441345
214	SKIRT	532441344
256	COVER	532181361
258	LENS	532441427
259	LENS	532441428
265	SEALING	532185704
266	SEALING	532185703
272	COVER	532441342
273	COVER	532441343
278	SCREW	532416358
295	COVER	532441375
296	SPARE PARTS	532441374
297	CLIP	532199145
298	BEARING	532110485
299	LOGOTYPE	532405012
305	INSERT	532406665
306	INSERT	532416501
307	SHIELD	532425125
321	SHIELD	532430309
322	SHIELD	532431014
323	PLATE	532432400
324	PLATE	532432401
328	CONTROL	532438971
330	KNOB	532440639
331	SCREW	532400776
