Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
TRACTORS/RIDE MOWERS
>
CTH202 T CTH202 T, 96061031200, 2010-12
>
CHASSIS & ENCLOSURES
Back to
CTH202 T
CTH202 T, 96061031200, 2010-12

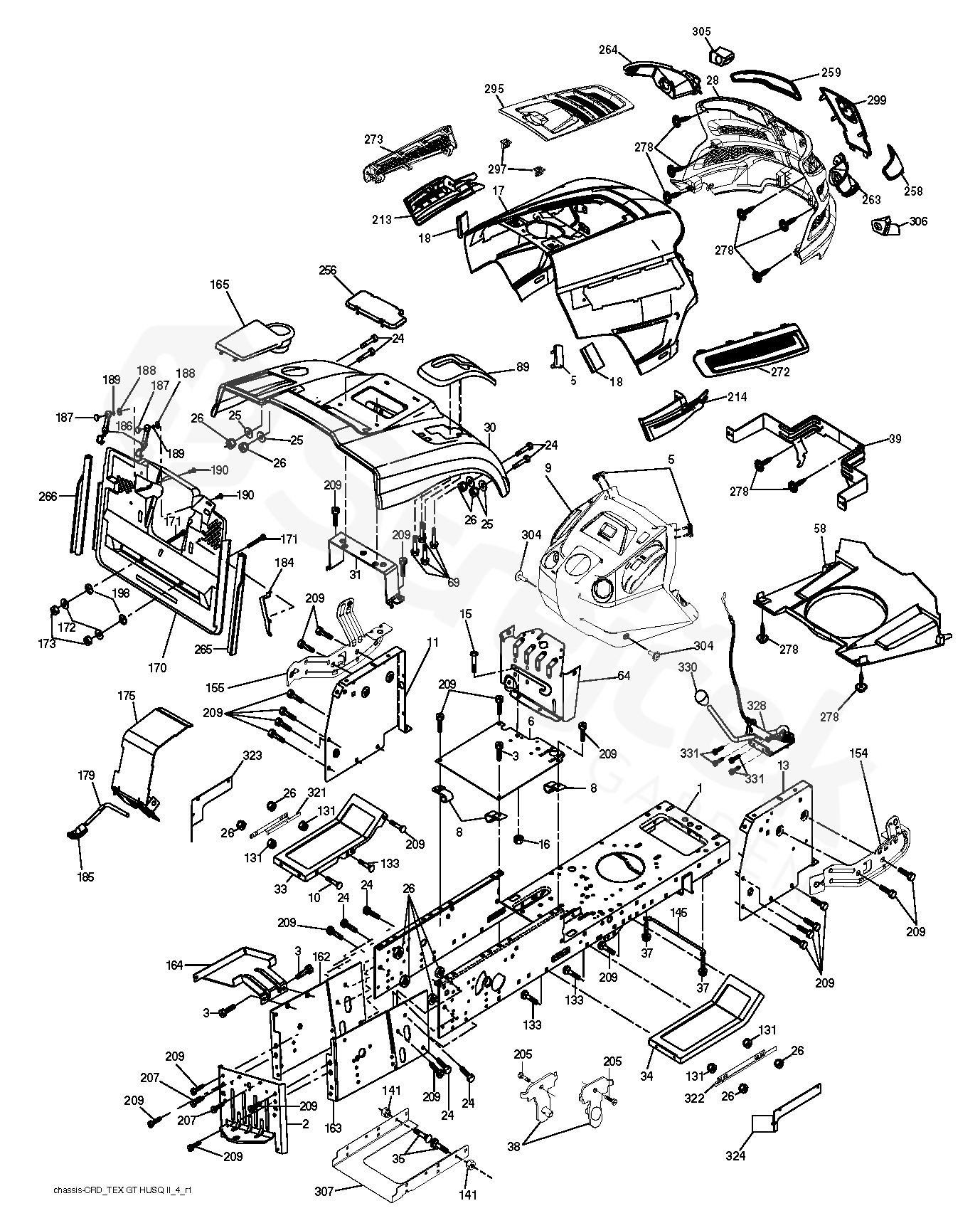

CHASSIS & ENCLOSURES
CTH202 T
CTH202 T, 96061031200, 2010-12
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CTH202 T, 96061031200, 2010-12
1
CHASSIS
532174620
2
DRAWBAR
532180384
3
SCREW
817060612
5
DAMPING PIECE
532407590
6
PLATE
532184419
8
CLIP
532126471
9
DASH
532437500
10
BOLT
872140610
11
PLATE
532167203
13
PANEL
532178298
15
SCREW
874180512
16
NUT
873510500
17
HOOD
532441177
18
DAMPING PIECE
532404742
24
BOLT
874780616
25
PODLOŽKA
819131312
26
NUT
873800600
28
GRILLE
532440653
30
FENDER
532441265
31
BRACKET
532165156
33
FOOTREST
532181057
34
FOOTREST
532181058
35
BOLT
872110606
37
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
38
BRACKET
532181748
39
BRACKET
532436670
58
AIR DUCT
532439774
64
DASH
532438270
69
SCREW
532142432
89
CONSOLE
532441574
131
NUT
873220600
133
BOLT
872110608
141
MATICE
873900600
145
ROD
532409167
154
BRACKET
532408690
155
BRACKET
532408691
162
BRACKET
532180382
163
BRACKET
532180383
164
SUPPORT
532165605
165
COVER
532441772
170
COVER
532199488
171
5/8-11 NUT TOP LOCK
872140620
172
WASHER
819132016
173
MATICE
873510600
175
DOOR TRAP
532188203
179
ROD PIVOT FBI
532188202
184
BRACKET
532174662
185
KNOB
532441416
186
LATCH
532160793
187
NUT
532125004
188
WASHER
819061216
189
WASHER
810071000
190
SCREW
871081010
198
PODLOŽKA
532168937
205
SCREW
817490608
207
SCREW
817670508
209
SCREW
817000612
213
SKIRT
532439729
214
SKIRT
532439730
256
COVER
532181361
258
LENS
532439732
259
LENS
532439733
263
CUP
532439734
264
CUP
532439735
265
SEALING
532185704
266
SEALING
532185703
272
COVER
532439728
273
COVER
532439727
278
SCREW
532416358
295
COVER
532435715
297
CLIP
532199145
299
LOGOTYPE
532439752
304
SCREW
817060410
305
INSERT
532437456
306
INSERT
532437455
307
SHIELD
532425125
321
SHIELD
532430309
322
SHIELD
532431014
323
PLATE
532432400
324
PLATE
532432401
328
CONTROL
532438971
330
KNOB
532440639
331
SCREW
532400776
PLUG
532187801
