Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > GT48 XLS GT48 XLS, 96043015800, 2012-10 > CHASSIS & ENCLOSURES
Back to

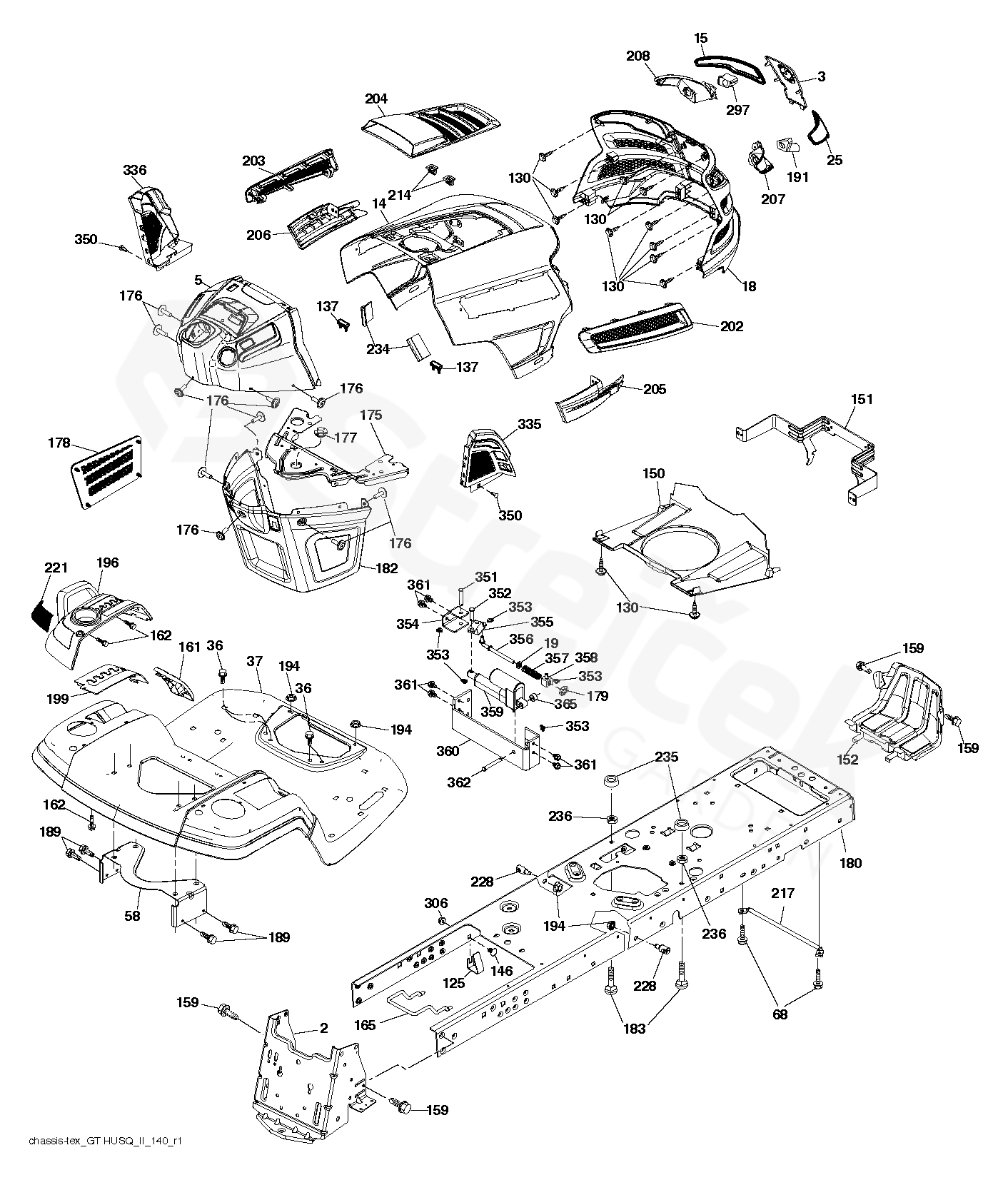

CHASSIS & ENCLOSURES
GT48 XLS GT48 XLS, 96043015800, 2012-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GT48 XLS, 96043015800, 2012-10
2 DRAW BAR 580434401
3 LOGOTYPE 532444481
5 DASH 581674201
14 HOOD 532441177
15 LENS 532439733
18 GRILLE 532440653
19 PODLOŽKA 819131312
25 LENS
RH 		532443385
36 SCREW 817060512
37 FENDER 532441208
58 BRACKET 532194314
68 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
125 CLIP 581684801
130 SCREW 532416358
137 DAMPING PIECE 532407590
146 BOLT 581857901
150 AIR DUCT 532439774
151 BRACKET 532436670
152 SHIELD 532439870
159 SCREW 817000612
161 CONSOLE 532439929
162 SCREW 532142432
165 SUPPORT 532194330
175 CROSS MEMBER 532196304
176 SCREW 532400776
177 BUSHING 532195227
178 NET 532199782
179 PODLOŽKA 532168937
180 CHASSIS 532445559
182 DASH 532406859
183 BOLT 874520520
189 SCREW 817000512
191 INSERT 532437455
194 MATICE 873900500
196 CONSOLE 532439674
199 PLATE 532198259
202 COVER
RH 		532439728
203 COVER
LH 		532439727
204 COVER 532435714
205 SKIRT
RH 		532439730
206 SKIRT
LH 		532439729
207 CUP
RH 		532439734
208 CUP
LH 		532439735
214 CLIP 532199145
217 ROD 532409167
221 LENS
LH 		532198909
228 ŠROUB 532195161
234 DAMPING PIECE 532404742
235 1/4-20X3/4 CARR BLT 532406129
236 MATICE 873930500
297 INSERT 532437456
306 MATICE 873900600
335 COVER 532448204
336 COVER 532445309
350 CLIP 532445143
351 PEN 532421734
352 CLEVIS PIN 532448634
353 CLIP 532178062
354 SUPPORT 532448619
355 BELLCRANK 532448636
356 LINK 532448693
357 COMPRESSION SPRING 532448684
358 STUD 580366601
359 ACTUATOR 580366201
360 BRACKET 532448618
361 SCREW 817490610
362 CLEVIS PIN 532448633
365 SPACER 532447368
GUARD 532431882
