Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > YTH22V42 LS YTH22V42 LS, 96043009701, 2010-06 > SEAT
Back to

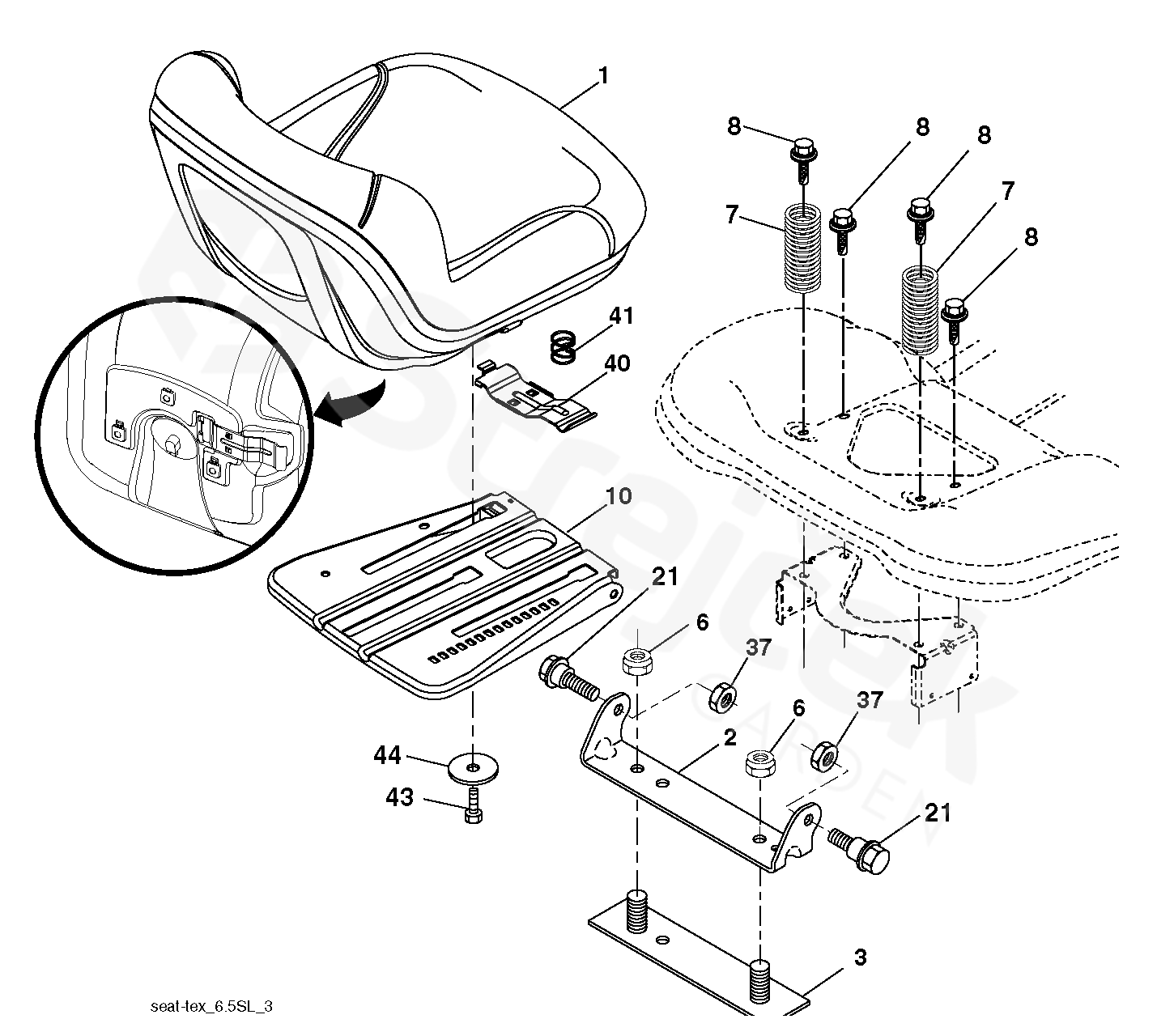

SEAT
YTH22V42 LS YTH22V42 LS, 96043009701, 2010-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YTH22V42 LS, 96043009701, 2010-06
1 SEAT 532424068
2 BRACKET 532180166
3 PÁSEK 532140675
6 NUT 873800600
7 SPRING 532124181
8 BOLT 532171877
10 DESKA 532196977
21 BOLT 532171852
37 BRACKET 873800500
40 HANDLE 532425919
41 PRUŽINA 532198200
43 BOLT 874760612
44 WASHER 819133812
