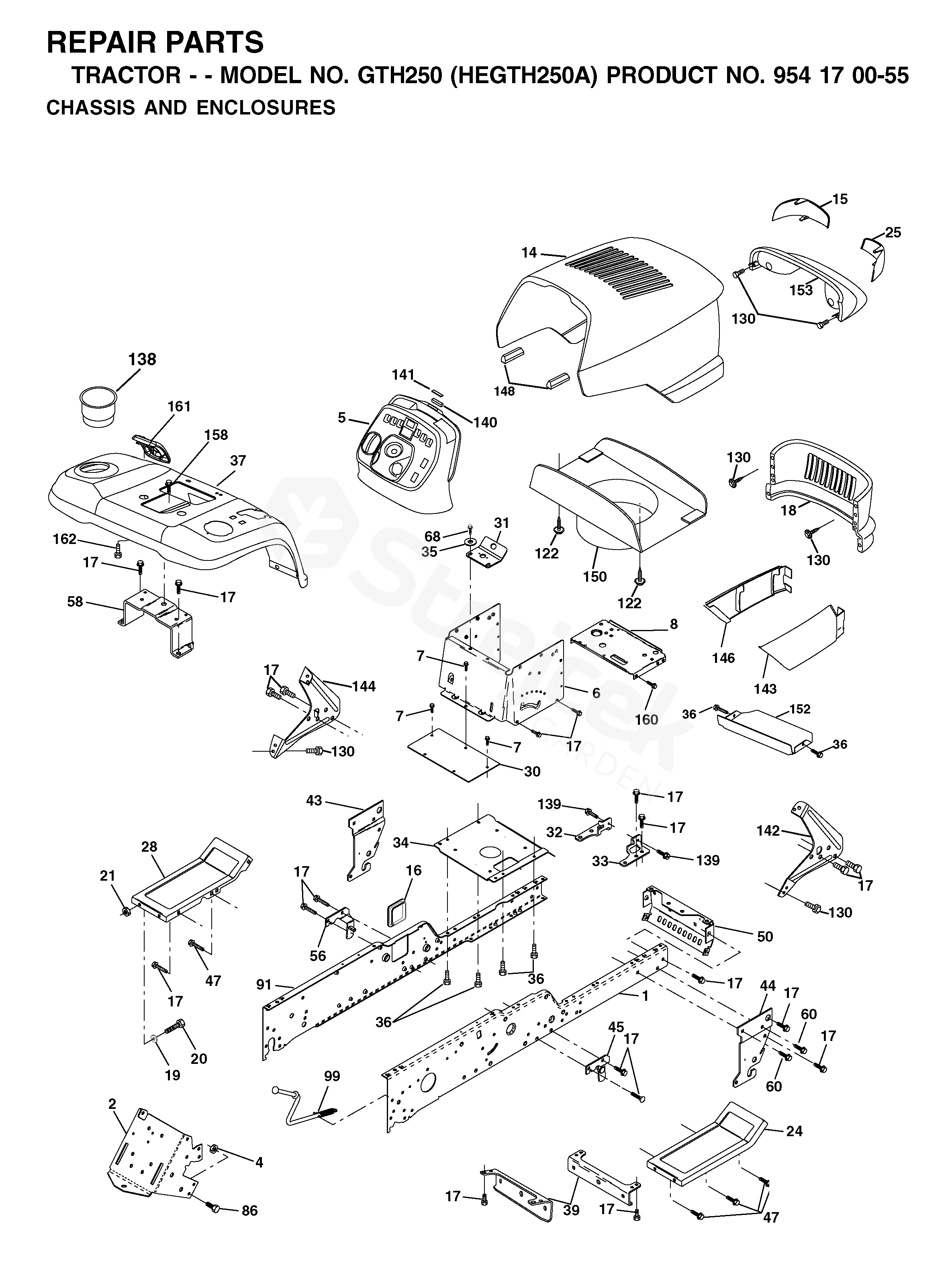

GTH250 GTH250, HEGTH250A, 954170055, 2002-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For GTH250, HEGTH250A, 954170055, 2002-03

1	LONGERON*RPL.PAR 532180375	532180372
2	PLATE	532175282
4	NUT	873680700
5	TABLEAU*RPL.PAR 532163976	532177582
6	PANEL	532157882
7	SCREW	817720408
8	SUPPORT	532145166
14	HOOD	532177583
15	LENS	532161842
16	COVER	532121794
17	SCREW	817060612
18	CALANDRE*RPL.PAR 532169846418	532177584
19	PODLOŽKA	819131312
20	BOLT	874760616
21	NUT	873800600
24	FOOTREST	532181058
25	LENS	532161841
28	FOOTREST	532181057
30	SUPPORT	532145052
31	SUPPORT COLONNE DE DIRECTION	532161419
32	CONSOLE	532161327
33	CONSOLE	532161326
34	PLATE	532177018
35	PODLOŽKA	819111116
36	SCREW	817060512
37	CARROS.RPL.PAR 532178510422	532181720
39	CONSOLE	532175278
43	BRACKET	532136939
44	BRACKET	532136940
45	CONSOLE	532176018
47	SCREW	817490608
50	POTENCE DE CHASSIS AVANT	532175476
56	CONSOLE	532176016
58	BRACKET FENDER	532175315
60	SCREW	817060620
68	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
86	BOLT	874780716
91	LONGERON*RPL.PAR 532180374	532180366
99	AXE	532177143
122	SCREW	532161464
130	SCREW	532164863
138	REPOSE*RPL.PAR 532179125418	532181798
139	BOLT	532171873
140	PIN RETAINING SCREW	532163806
141	PIN RETAINING SCREW	532163805
142	BRACKET	532161897
143	COTE*RPL.PAR 532169847418	532177586
144	BRACKET	532161900
146	COTE*RPL.PAR 532169848418	532177587
148	ABSORBER	532164655
150	CARTER DE VENTILATION MOTEUR	532161237
152	PLATE	532177956
153	LENS	532179761
158	SCREW	817670608
160	SCREW	817060508
161	TRAPPE*RPL.PAR 532179612418	532181787
162	SCREW	532142432
