Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TC 238 TC 238, 96051016300, 2017-02 > MOWER DECK / CUTTING DECK
Back to

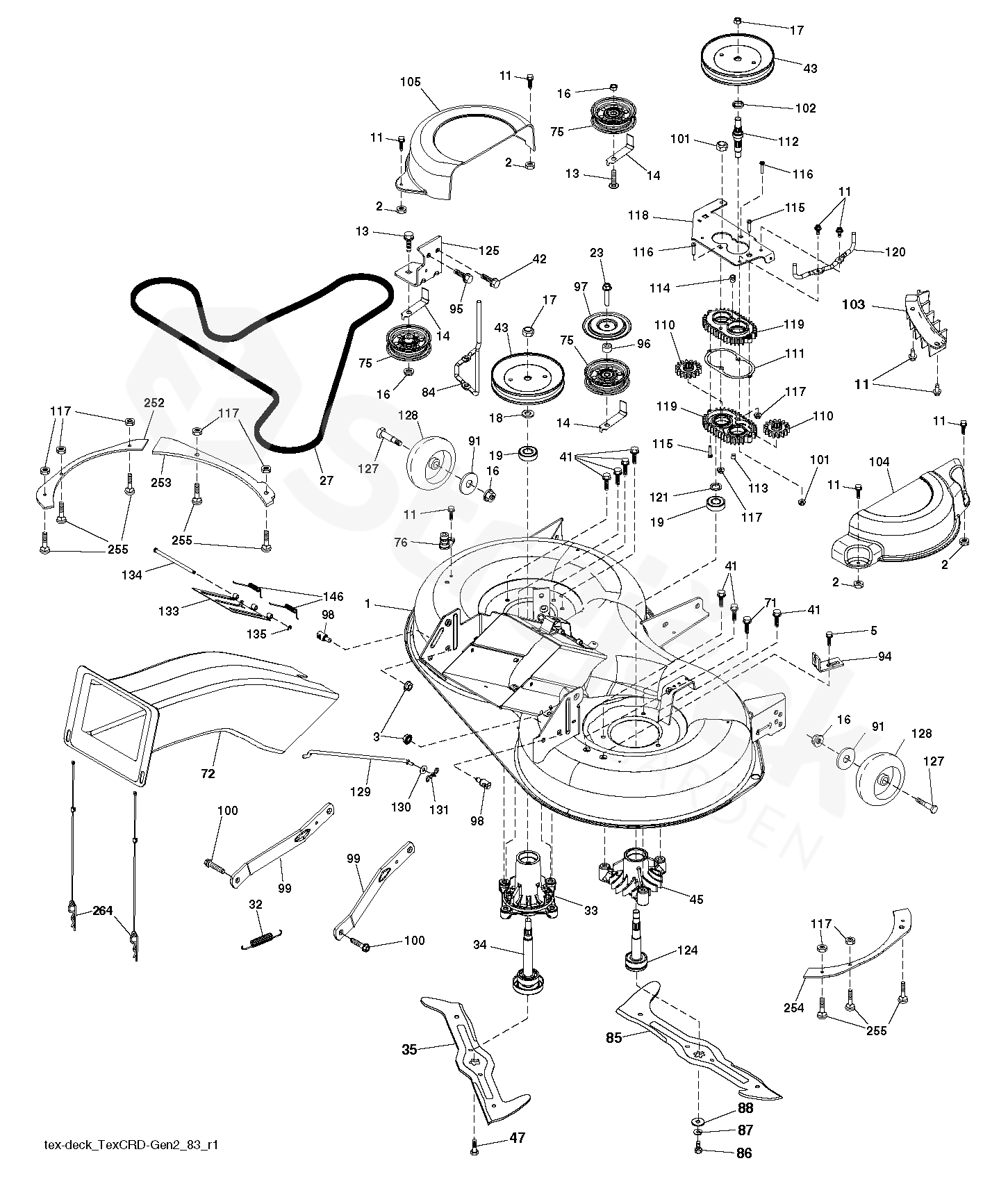

MOWER DECK / CUTTING DECK
TC 238 TC 238, 96051016300, 2017-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TC 238, 96051016300, 2017-02
1 CUTTING DECK 580465302
2 MATICE 532423062
3 MATICE 873900500
5 BOLT 817000510
11 SCREW 532137729
13 BOLT 872110612
14 BELT GUIDE 532156085
16 MATICE 873900600
17 MATICE 532400234
18 PODLOŽKA 532187690
19 BEARING 585323901
23 SCREW 817490628
27 BELT 532445834
32 PRUŽINA 532446205
33 BEARING HOUSING 532187281
34 HRÍDEL 587256501
35 RIDE ON BLADE 532427984
41 BOLT 584953901
42 SCREW 817000512
43 PULLEY 532199789
45 BEARING HOUSING 532137152
47 SCREW 584309301
71 SCREW 817670608
72 CHUTE 581454103
75 PULLEY 532131494
76 PORT.WASHOUT 532415598
84 KEEPER. MANDREL BELT 532400140
85 RIDE ON BLADE 532427985
86 BOLT 532181713
87 PODLOŽKA 539990118
88 PODLOŽKA 532140296
91 PODLOŽKA 819132012
94 BRACKET 532197250
95 SCREW 817000612
96 ROZPĚRKA 532400271
97 PROTECTOR 532182061
98 ŠROUB 532195161
99 ARM 532195186
100 BOLT 532196539
101 MATICE 873680900
102 ROZPĚRKA 532402511
103 GUARD 532436992
104 DOMEČEK 532438968
105 DOMEČEK 532438744
110 GEAR 587934801
111 GASKET 532436979
112 HRÍDEL 532443852
113 PLUG 532438533
114 BREATHER 588170501
115 SCREW 818031016
116 BOLT 872110414
117 MATICE 873900400
118 ARM 532436989
119 GEARCASE 532438166
120 BRACKET 532436991
121 PODLOŽKA 532436985
124 HRÍDEL 532436986
125 BRACKET 532440420
127 BOLT 532193406
128 KOLO 532174873
129 ROD 532443237
130 PODLOŽKA 819131312
131 KOLÍČEK 532194208
133 DOOR 532435538
134 PEN 532435861
135 KROUŽEK 532437988
146 PRUŽINA 532445896
252 REINFORCEMENT PLATE 585308705
253 REINFORCEMENT PLATE 585308805
254 REINFORCEMENT PLATE 585309005
255 BOLT 539109800
264 POJISTNÝ KROUŽEK 589392901
CUTTING DECK 532448132
