Spare parts
>
Husqvarna
>
TRACTORS/RIDE MOWERS
>
TC 242 TC 242, 96051012701, 2015-07
>
MOWER DECK / CUTTING DECK
Back to
TC 242
TC 242, 96051012701, 2015-07

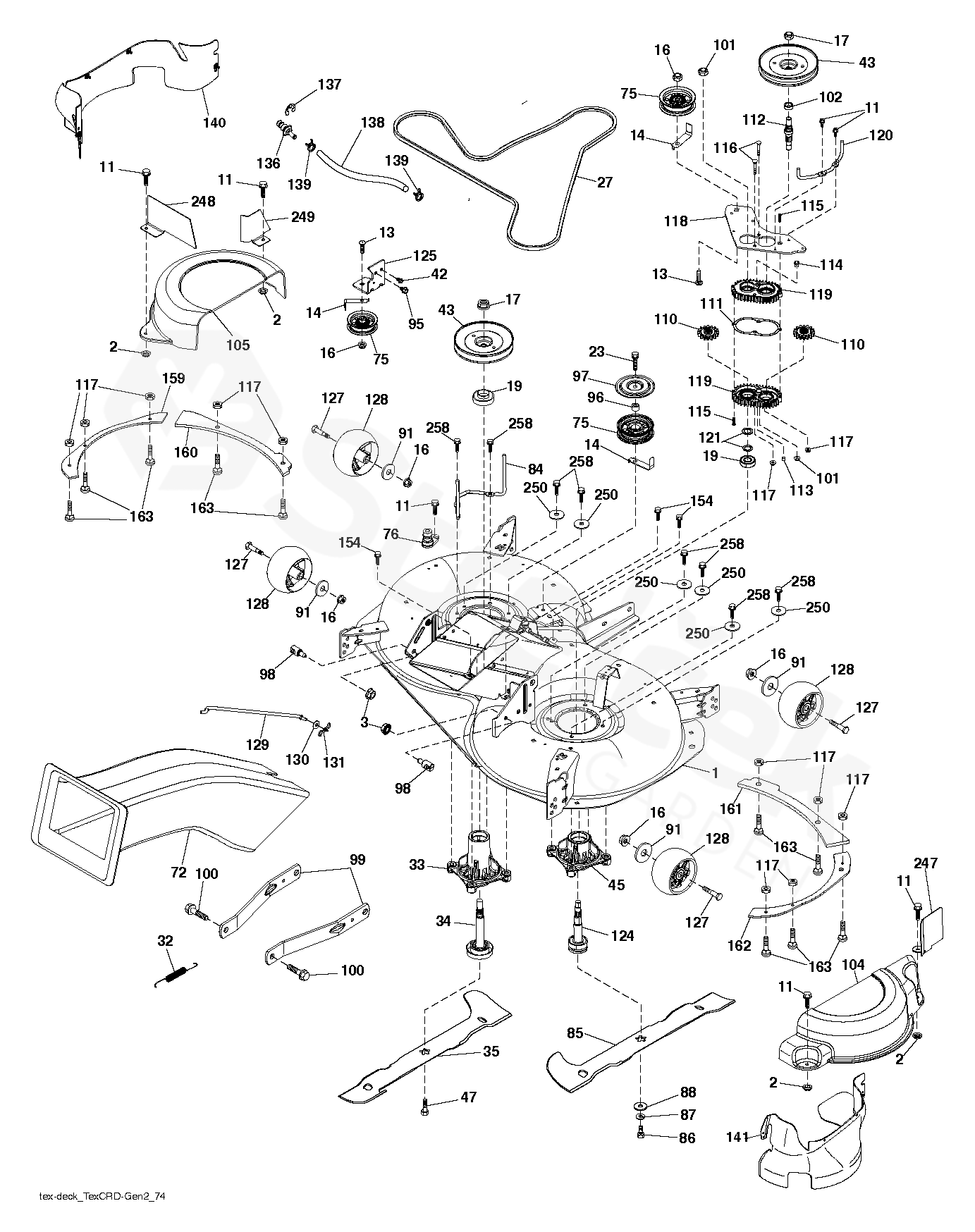

MOWER DECK / CUTTING DECK
TC 242
TC 242, 96051012701, 2015-07
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TC 242, 96051012701, 2015-07
1
DECK
580973301
2
MATICE
532423062
3
MATICE
873900500
11
SCREW
532137729
13
BOLT
872110612
14
BELT GUIDE
532156085
16
MATICE
873900600
17
MATICE
532400234
19
BEARING
585323901
23
SCREW
817490628
27
BELT
532445887
32
PRUŽINA
532446205
33
DOMEČEK
580796101
34
HRÍDEL
580854701
35
BLADE
581517901
42
SCREW
817000512
43
PULLEY
532443239
45
HOUSING
581650801
47
SCREW
584309301
72
CHUTE
581454102
75
PULLEY
532131494
76
PORT
532439640
84
HLÍDAČ
532443235
85
BLADE
581518001
86
BOLT
532181713
87
PODLOŽKA
810030600
88
PODLOŽKA
532140296
91
PODLOŽKA
819132012
95
SCREW
817000612
96
ROZPĚRKA
532400271
97
PROTECTOR
532182061
98
ŠROUB
532195161
99
ARM
532195186
100
BOLT
532196539
101
MATICE
873680900
102
ROZPĚRKA
532402511
104
COVER
581714001
105
COVER
532444755
110
GEAR
587934801
111
GASKET
532436979
112
HRÍDEL
532443852
113
PLUG
532438533
114
BREATHER
588170501
115
SCREW
818031016
116
BOLT
872110414
117
MATICE
873900400
118
ARM
532443232
119
GEARCASE
532438166
120
HLÍDAČ
532443236
121
PODLOŽKA
532436985
124
HRÍDEL
581650701
125
MANUAL
532436944
127
BOLT
532193406
128
KOLO
532174873
129
ROD
532443237
130
PODLOŽKA
819131312
131
KOLÍČEK
532194208
136
PLUG
532439639
137
POJISTNÝ KROUŽEK
812000029
138
HADICE
532447667
139
CLAMP
532440742
140
GUARD
501580001
141
GUARD
501579602
154
SCREW
532199855
159
REINFORCEMENT PLATE
585309505
160
REINFORCEMENT PLATE
585309405
161
REINFORCEMENT PLATE
585316005
162
REINFORCEMENT PLATE
585316105
163
1/4-20X3/4 CARR BLT
872110406
247
GUARD
581263402
248
GUARD
581263602
249
GUARD
581263502
250
PODLOŽKA
819111212
258
BOLT
584953901
CUTTING DECK
532448132
