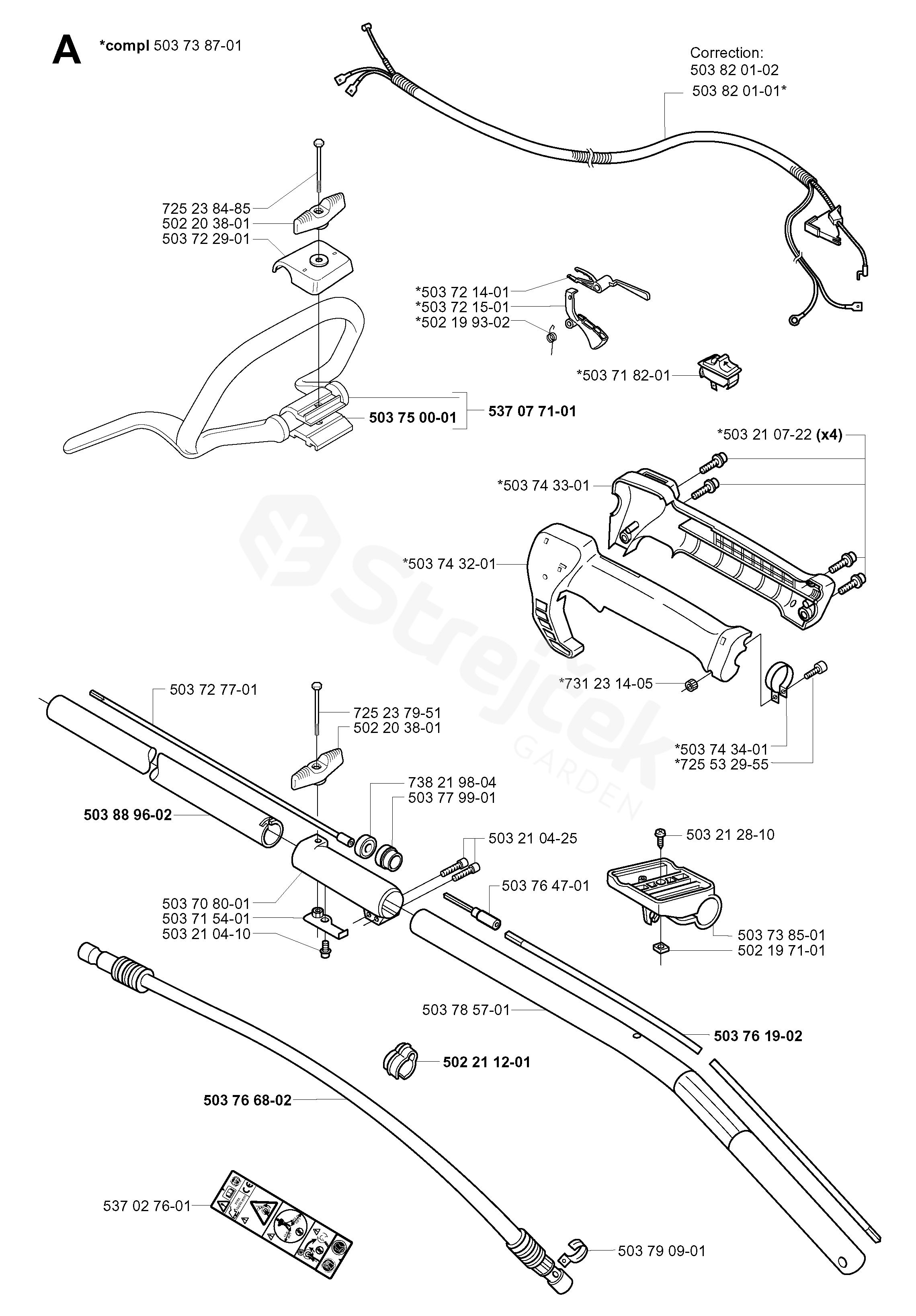

240 RBD 240 RBD, 2000-10

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 240 RBD, 2000-10

502197101	ČTYŘHRANNÁ MATICE	502197101
502199302	SPRING	502199302
502203801	KNOB	502203801
502211201	SKOBA	502211201
503210410	SCREW IHSCFTT	503210410
503210425	SCREW IHSCFTT	503210425
503210722	SCREW IHSCT	503210722
503212810	SCREW CCRPANT	503212810
503708001	COMPRESSION SLEEVE	503708001
503715401	LOCKING PLATE	503715401
503718201	SWITCH	503718201
503721401	THROTTLE LOCKOUT	503721401
503721501	THROTTLE TRIGGER	503721501
503722901	COVER	503722901
503727701	DRIVE SHAFT ASSY	503727701
503738501	BRACKET	503738501
503738701	CONTROL	503738701
503743201	HANDLE HALF	503743201
503743301	HANDLE HALF	503743301
503743401	CLIP	503743401
503750001	HANDLEBAR BRACKET	503750001
503761902	SHAFT FLEXIBLE	503761902
503764701	ADAPTER	503764701
503766802	HOUSING	503766802
503779901	BEARING CAGE	503779901
503785701	TUBE	503785701
503790901	CIRCLIP	503790901
503820102	WIRING	503820102
503889602	TUBE	503889602
537027601	LABEL	537027601
537077101	HANDLE	537077101
725237951	SCREW EHHM	725237951
725238485	SCREW EHHM	725238485
725532955	SCREW IHSCM	725532955
731231405	HEXAGON NUT	731231405
738219804	BALL BEARING	738219804
