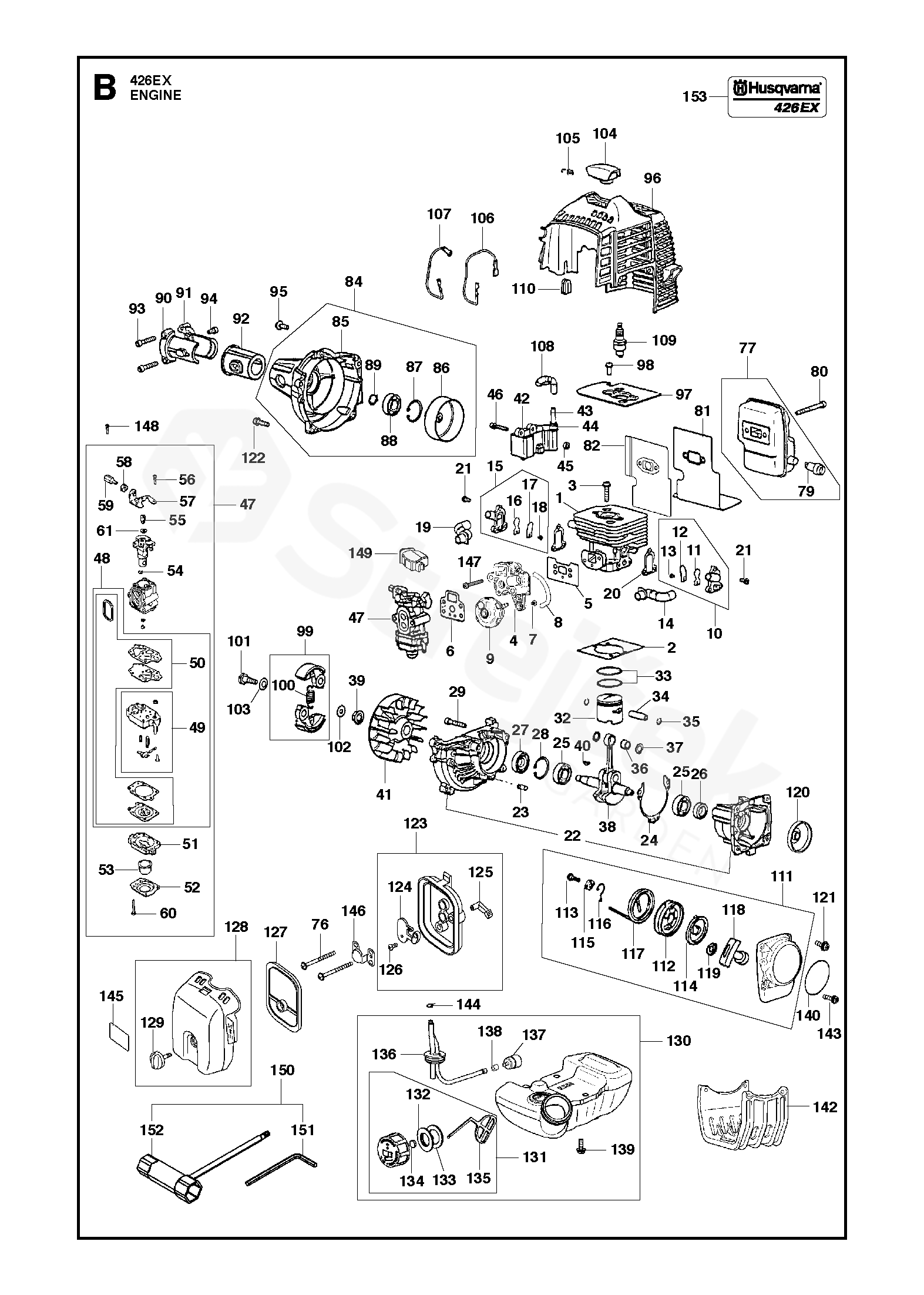

Spare parts - Partlist - 426 Ex 426 Ex, 2010-01 - ENGINE

Everything for your machines

426 Ex 426 Ex, 2010-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 426 Ex, 2010-01

1	CYLINDER	521611601
2	GASKET	521611701
3	BOLT	506745201
4	INSULATOR	521613301
5	GASKET	521613401
6	GASKET	521755001
7	SCREW	521519101
8	TUBE	521523601
9	PUMP ASSY	521613901
10	AIR CHECKER (S) ASSY	521612301
11	REEDVALVE	521612601
12	STOPPER	515380701
13	SCREW	515381101
14	PIPE	521612701
15	AIR CHECKER (F) ASSY	521612501
16	REEDVALVE	521612601
17	STOPPER	515380701
18	SCREW	515381101
19	PIPE	521612801
20	GASKET	521612901
21	SCREW	504119201
22	CRANKCASE	515381601
23	KOLÍČEK	505296101
24	GASKET	515381801
25	BEARING	523071701
26	SEALING	504121501
27	SEAL	506612901
28	KROUŽEK	506609901
29	BOLT	515388101
32	PISTON	521613601
33	KROUŽEK	506618101
34	PEN	521522601
35	KROUŽEK	505045201
36	BEARING	506685001
37	WASHER	521520401
38	SHAFT-COMP	521613201
39	MATICE	504118001
40	KEY	506689401
41	ROTOR	515384501
42	COIL	512320001
43	CORD	521749201
44	HUB CAP	505042801
45	ROZPĚRKA	504118601
46	BOLT	506745701
47	CARBURETTOR	575406801
48	REBUILD KIT	506657901
49	CARBURETTOR BODY	502238401
50	GASKET KIT	506615501
51	BODY	521613701
52	COVER	506741001
53	ČERPADLO	505306701
54	KROUŽEK	506738601
55	OTOČNÝ	506741201
56	SCREW	505307901
57	BRACKET	506746001
58	MATICE	506612601
59	SCREW-CABLE-ADJ	505308201
60	SCREW	506741101
61	PODLOŽKA	506746101
76	SCREW	529268001
77	MUFFLER ASSY	521613501
79	ARRESTER	506615601
80	SCREW	504116501
81	GASKET	521612001
82	PLATE	521612101
84	HOUSING	525942001
85	COVER	515382601
86	DRUM	515388501
87	KROUŽEK	506609901
88	BEARING	525953201
89	KROUŽEK	516124101
90	BRACKET	515649401
91	BRACKET	515649501
92	CUSHION	515649601
93	BOLT	515388101
94	BOLT	521516101
95	BOLT	506745601
96	COVER	575331001
97	PLATE	521611801
98	SCREW	504119601
99	SHOE	515389101
100	SPRING	515389301
101	SCREW	513189601
102	PODLOŽKA	505054401
103	WASHER	513189501
104	HUB CAP	521610001
105	PRUŽINA	505298901
106	CORD	515384801
107	CORD	515384901
108	TUBE	521749501
109	SPARK PLUG	506615101
110	GROMMET	506615901
111	STARTER ASSY	515385401
112	REEL	504114701
113	SCREW	515367101
114	SPRING.SPIRAL	504115001
115	COLLAR	504114601
116	ARM	504114801
117	ROPE	504114901
118	KNOB	506614701
119	PLATE.STOPPER	515385601
120	PULLEY	504114401
121	BOLT	521746501
122	BOLT	506745201
123	BODY	528062601
124	PLATE,CHOKE	528074301
125	LEVER	528074401
126	SCREW	506673801
127	FILTER	528074701
128	COVER	575331101
129	KNOB	575331401
130	TANK-A	528064401
131	CAP	505309601
132	HOLDER	515369401
133	PACKING	506744301
134	FILTER	506746801
135	STOPPER	506745801
136	PIPE	515387201
137	FILTER	506614601
138	CLIP	506707001
139	BOLT	515391301
140	LABEL	575332401
142	GUARD	511371201
143	BOLT	506745201
144	CLIP	506741501
145	LABEL	523071401
146	PLATE	528074801
147	SCREW	504114301
148	SCREW	505308301
149	COVER	506744201
150	TOOL-SET	521532701
151	BAR	505312001
152	SOCKET	521533101
153	DECAL	575766301
