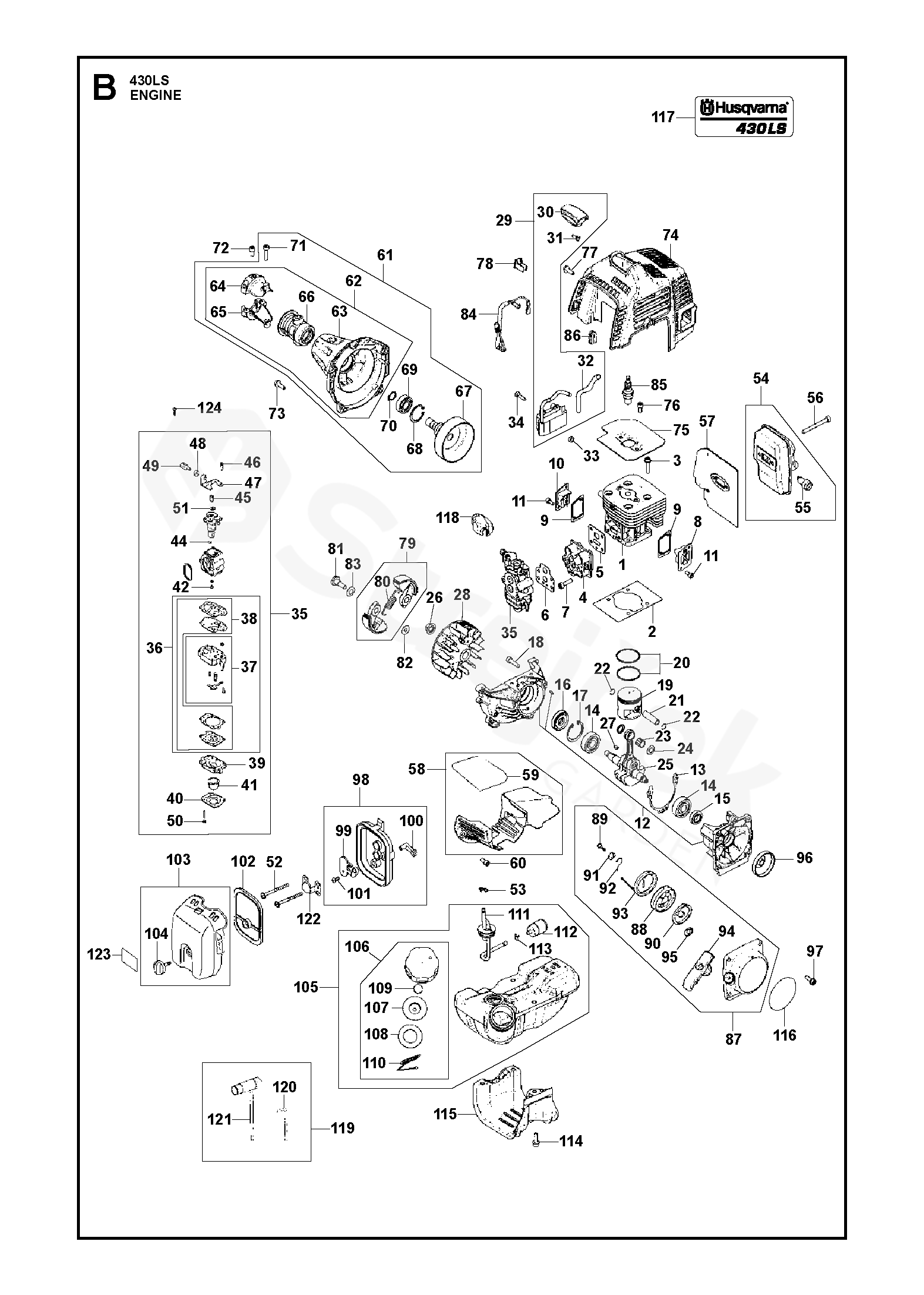

Spare parts - Partlist - 430 LS 430 LS, 2010-01 - ENGINE

Everything for your machines

430 LS 430 LS, 2010-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 430 LS, 2010-01

1	CYLINDER	528073301
2	GASKET	504119101
3	BOLT	506745201
4	INSULATOR	528073701
5	GASKET	528070201
6	GASKET	521755001
7	BOLT	505040401
8	COVER	521614501
9	GASKET	521614801
10	COVER	521614701
11	SCREW	504119201
12	CASE-COMP	521615501
13	GASKET	504121201
14	BEARING	504121401
15	SEALING	504121501
16	SEAL	505296701
17	POJISTNÝ KROUŽEK	504121001
18	SCREW	504114301
19	PISTON	528073801
20	PISTON RING	504120501
21	PISTON PIN	504120601
22	SNAP RING	504120901
23	BEARING	504120101
24	WASHER	504120201
25	SHAFT-COMP	521616001
26	MATICE	504118001
27	KEY	506689401
28	ROTOR	521769301
29	COIL	512332001
30	HUB CAP	521610001
31	SPRING	521739501
32	TUBE	513764701
33	ROZPĚRKA	504118601
34	BOLT	506745701
35	CARBURETOR-A	528075501
36	GASKET KIT	528070101
37	CARBURETTOR BODY	502238401
38	GASKET KIT	515378701
39	BODY	506740901
40	COVER	506741001
41	ČERPADLO	505306701
42	NEEDLE	511351401
44	KROUŽEK	506738601
45	OTOČNÝ	506741201
46	SCREW	505307901
47	BRACKET	506746001
48	MATICE	506612601
49	SCREW-CABLE-ADJ	505308201
50	SCREW	506741101
51	PODLOŽKA	506746101
52	SCREW	521515501
53	CLIP	506741501
54	MUFFLER	575584201
55	ARRESTER	506615601
56	SCREW	504116501
57	GASKET	528070301
58	PLATE	521615201
59	SHEET	521615401
60	SCREW	504119601
61	HOUSING	528071001
62	HOUSING	521755101
63	HOUSING	521755201
64	BRACKET	521768201
65	BRACKET	521768301
66	ANTIVIBRATION ELEMENT	512360501
67	DRUM	521609801
68	KROUŽEK	506609901
69	BEARING	525953201
70	KROUŽEK	516124101
71	SCREW	504114301
72	BOLT	529268101
73	BOLT	515391301
74	COVER	575584301
75	PLATE	511377601
76	SCREW	504119601
77	BOLT	506745601
79	SHOE	515389101
80	SPRING	515389301
81	SCREW	513189601
82	PODLOŽKA	505054401
83	WASHER	513189501
84	CORD	512328601
85	SPARK PLUG	528074001
86	GROMMET	506615901
87	STARTER	512328801
88	REEL	521326701
89	SCREW	515367101
90	SPRING	516541701
92	SWING ARM	521327101
93	ROPE	504114901
94	KNOB	506614701
95	PLATE.STOPPER	515385601
96	PULLEY	504114401
97	BOLT	506745601
98	BODY	528074901
99	PLATE,CHOKE	528074301
100	LEVER	528074401
101	SCREW	506673801
102	FILTER	528074701
103	COVER	575331101
104	KNOB	575331401
105	TANK-A	528068001
106	CAP	505309601
107	HOLDER	515369401
108	PACKING	506744301
109	FILTER	506746801
110	STOPPER	506745801
111	PIPE-COMP	521616601
112	FILTER	506614601
113	CLIP	506707001
114	BOLT	512845601
115	GUARD	521616701
116	DECAL	575638801
117	DECAL	575766401
118	COVER	506744201
119	TOOL-SET	521532701
120	BAR	505312001
121	SOCKET	521533101
122	PLATE	528074801
123	LABEL	523071401
124	SCREW	505308301
