ZERO TURN: COMMERCIAL
>
PZ 6029 D PZ 6029 D, 966476701, 2012-02
>

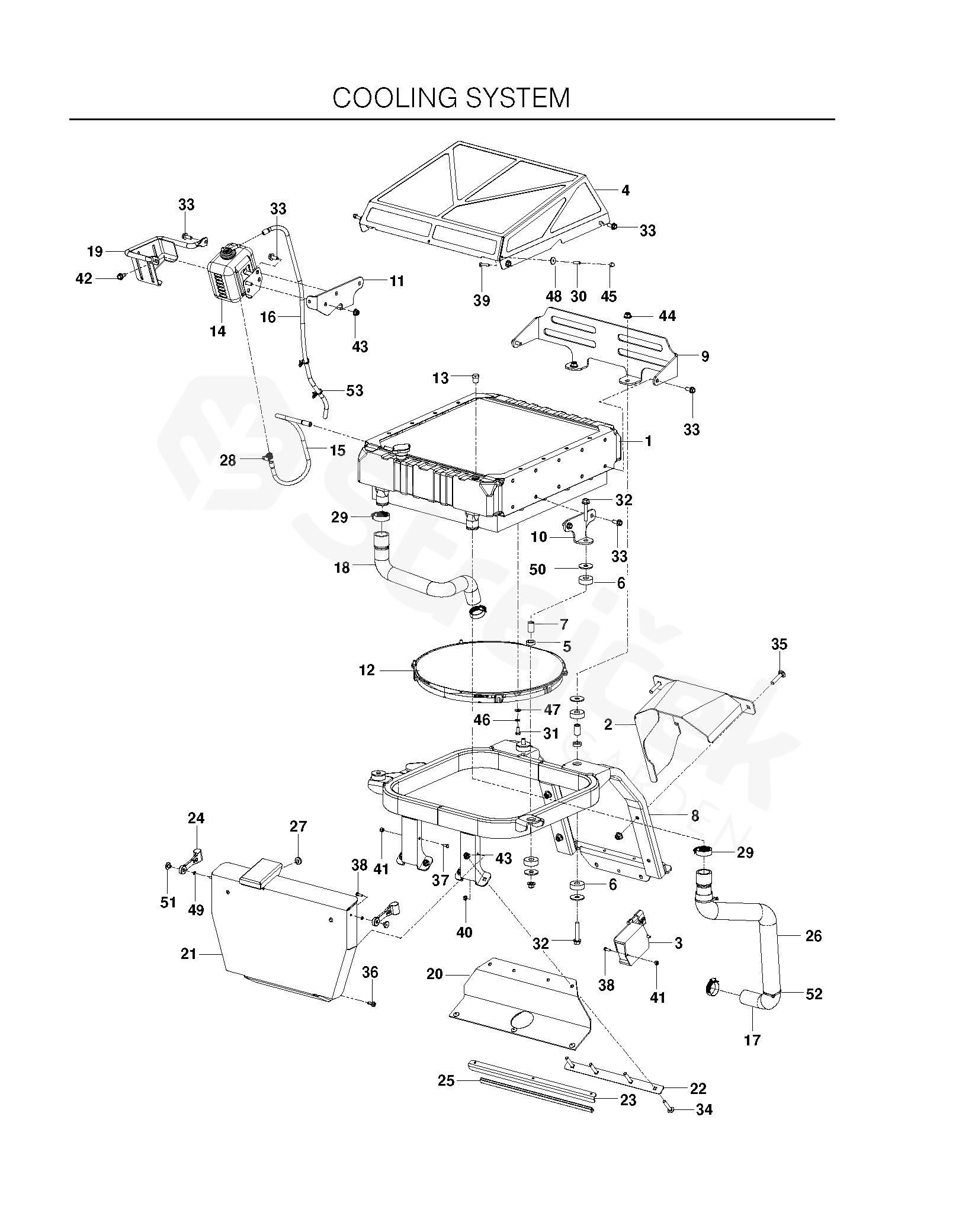

COOLING SYSTEM
Back to
PZ 6029 D
PZ 6029 D, 966476701, 2012-02
COOLING SYSTEM
PZ 6029 D
PZ 6029 D, 966476701, 2012-02
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PZ 6029 D, 966476701, 2012-02
1
RADIATOR
574351601
2
SHIELD
w/ DECAL
574722305
3
MODULE
574431401
4
SCREEN
574356108
5
ISO-MOUNT INSERT
539116377
6
ISO-MOUNT BUSHING
539116378
7
ISO MT. BUSHING
539121367
8
MOUNT
574432702
9
MOUNT
574433802
10
MOUNT
574433702
11
MOUNT
574841002
12
FAN
516018601
13
FITTING
574596801
14
BOTTLE
522503501
15
HOSE
574845401
16
HOSE
574845402
17
HOSE
574431101
18
HOSE
574431001
19
GUARD
575256402
20
GUARD
522023101
21
GUARD w/ DECAL
w/ DECAL
575315003
22
STRAP
522023201
23
STRAP
574469302
24
HOOD LATCH
539108088
25
FLEX TRIM. BLACK - DROP SHIP
539112294
26
SLEEVE
575867701
27
ABSORBER
539102587
28
CLAMP
576286001
29
CLAMP
539106321
30
SPACER LT
539108085
31
SCREW
539990072
32
HHFS
525866201
33
SCREW
525464701
34
SCREW
539990861
35
RHSNB 3/8-16X1-3/4 GR 5 ZD
539990923
36
SCREW
539107631
37
SCREW
539990411
38
SCREW
539976952
39
SCREW
539108083
40
MATICE
539108120
41
NUT
539976977
42
BOLT
539107475
43
BOLT RETAINER 3/8
539112899
44
MATICE
521996501
45
NUT
539108086
46
PODLOŽKA
539990052
47
WASHER 1/4 SAE
539990055
48
WASHER
539108084
49
WASHER - 3/8
539109552
50
7/16 HD FLAT WASHER
539115516
51
WELDNUT
539108089
52
TIE WRAP
539976856
53
STAHOVACÍ PÁSKA
505280001
