Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
ZERO TURN: COMMERCIAL
>
PZ 6029 D PZ 6029 D, 966476701, 2010-03
>
COOLING SYSTEM
Back to
PZ 6029 D
PZ 6029 D, 966476701, 2010-03

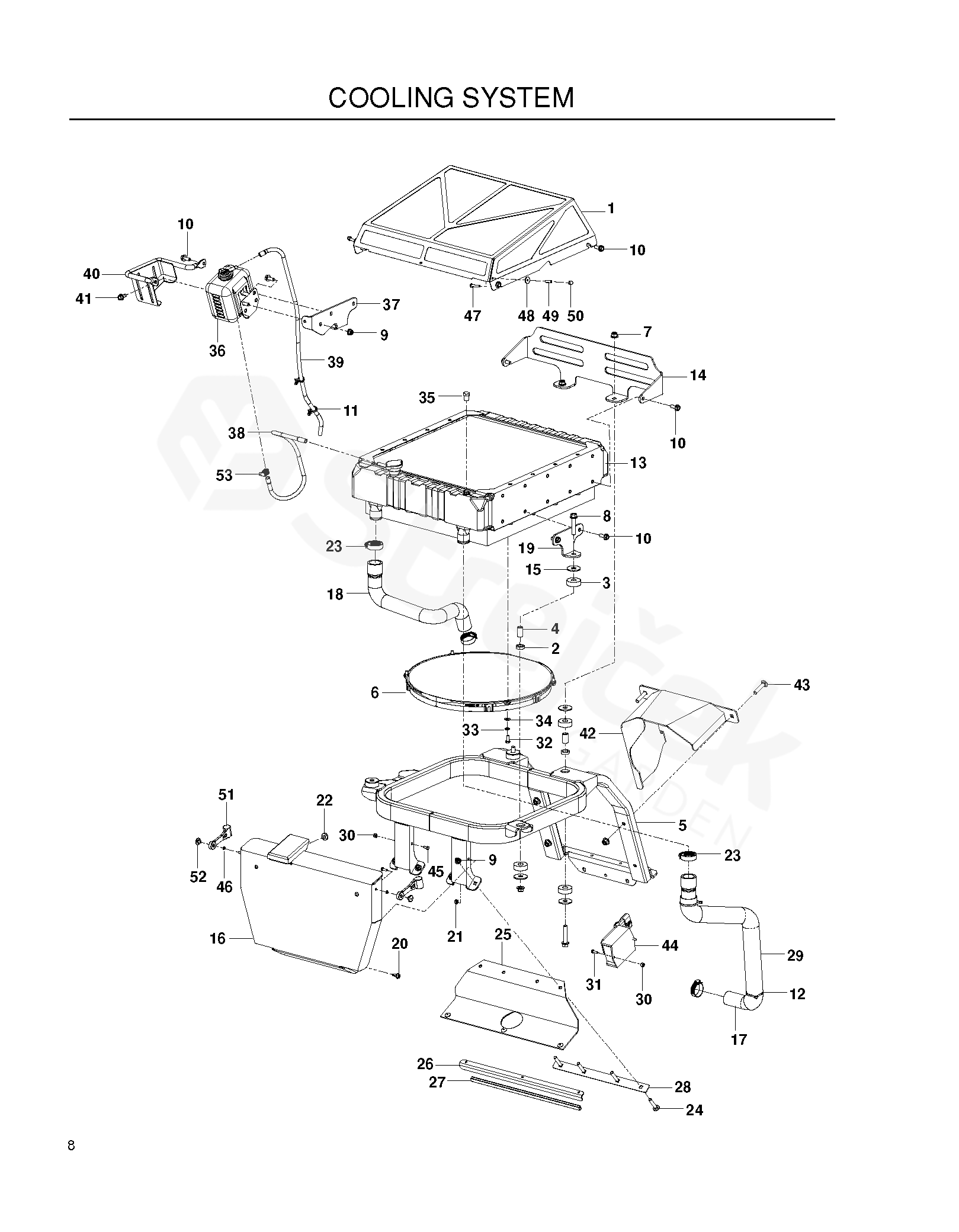

COOLING SYSTEM
PZ 6029 D
PZ 6029 D, 966476701, 2010-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PZ 6029 D, 966476701, 2010-03
1
SCREEN
574356108
2
ISO-MOUNT INSERT
539116377
3
ISO-MOUNT BUSHING
539116378
4
ISO MT. BUSHING
539121367
5
MOUNT
574432702
6
FAN
516018601
7
MATICE
521996501
8
HHFS
525866201
9
BOLT RETAINER 3/8
539112899
10
SCREW
525464701
11
STAHOVACÍ PÁSKA
505280001
12
TIE WRAP
539976856
13
RADIATOR
574351601
14
MOUNT
574433802
15
7/16 HD FLAT WASHER
539115516
16
GUARD w/ DECAL
w/ SAFETY DECAL
575315003
17
HOSE
LT
574431101
18
HOSE
RT
574431001
19
MOUNT
574433702
20
SCREW
539107631
21
MATICE
539108120
22
ABSORBER
539102587
23
CLAMP
539106321
24
SCREW
539990861
25
GUARD
522023101
26
STRAP
574469302
27
FLEX TRIM. BLACK - DROP SHIP
539112294
28
STRAP
522023201
29
SLEEVE
575867701
30
NUT
539976977
31
SCREW
539976952
32
SCREW
539990072
33
PODLOŽKA
539990052
34
WASHER 1/4 SAE
539990055
35
FITTING
574596801
36
BOTTLE
522503501
37
MOUNT
574841002
38
HOSE
574845401
39
HOSE
574845402
40
GUARD
575256402
41
BOLT
539107475
42
SHIELD
574722305
43
RHSNB 3/8-16X1-3/4 GR 5 ZD
539990923
44
MODULE
574431401
45
SCREW
539990411
46
WASHER - 3/8
539109552
47
SCREW
539108083
48
WASHER
539108084
49
SPACER LT
539108085
50
NUT
539108086
51
HOOD LATCH
539108088
52
WELDNUT
539108089
53
CLAMP
576286001
