Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > IZE 4821 IZE 4821 KAA, (FOR SERIAL NO. 033600000 & HIGHER), 968999210, 2004-01 > MOWER LIFT / DECK LIFT
Back to

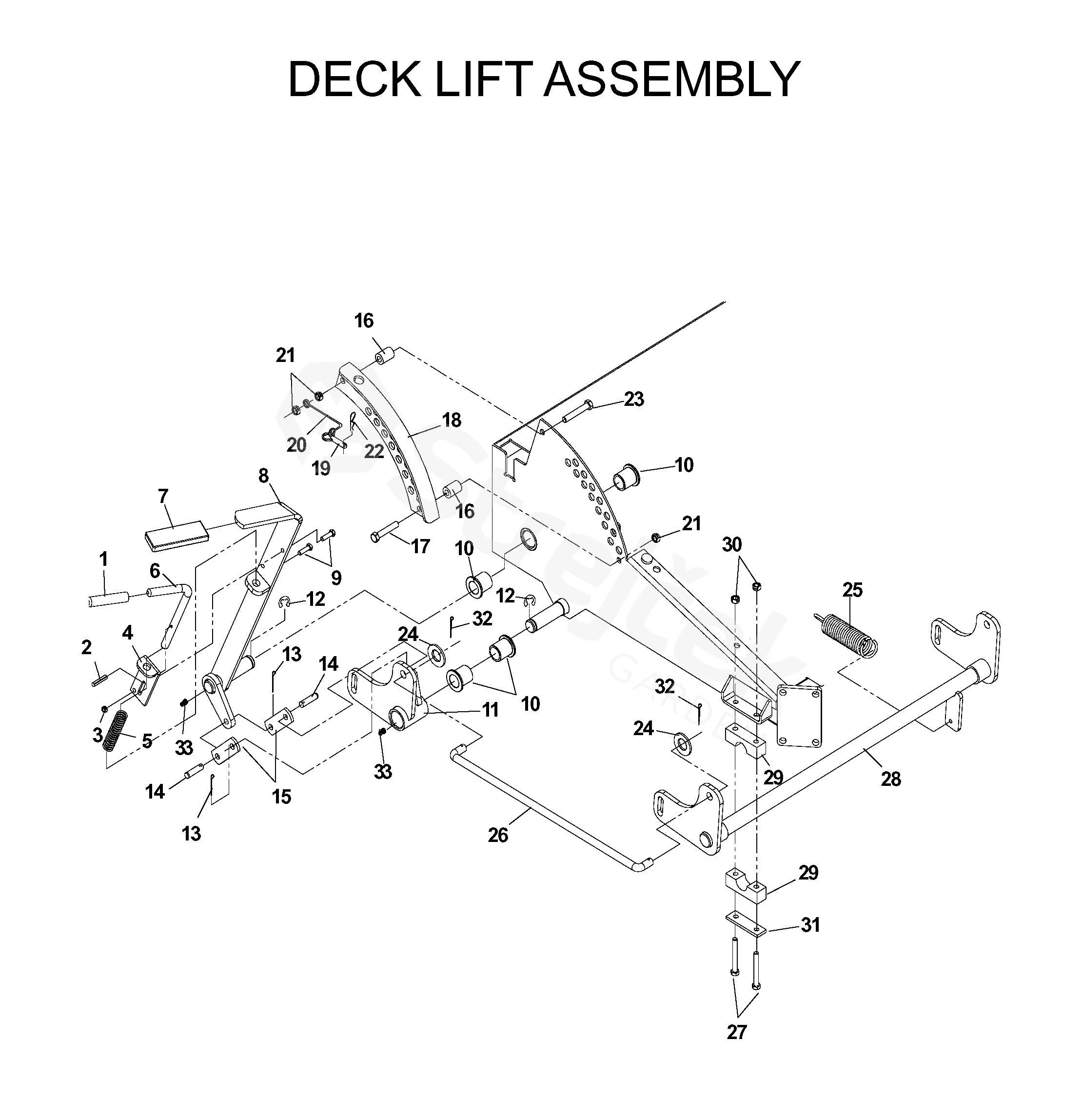

MOWER LIFT / DECK LIFT
IZE 4821 IZE 4821 KAA, (FOR SERIAL NO. 033600000 & HIGHER), 968999210, 2004-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For IZE 4821 KAA, (FOR SERIAL NO. 033600000 & HIGHER), 968999210, 2004-01
1 GRIP 539101050
2 PIN RETAINING SCREW 539106532
3 NUT 539990761
4 BRACKET 539103534
5 SPRING 539101058
6 PIN RETAINING SCREW 539103533
7 GRIP 539102515
8 LEVER 539108862
9 SCREW 539990580
10 BUSHING 539101232
11 LEVER,RIGHT 539107032
12 RETAINING RING 539101802
13 PIN RETAINING SCREW 539990365
14 PIN RETAINING SCREW 539977703
15 LIFT ARM 539102565
16 SPACER 539103543
17 SCREW 539990588
18 PLATE 539106976
19 PIN RETAINING SCREW 539102526
20 LANYARD 539105059
21 END BRACKET 539976979
22 SPLIT PIN 539976989
23 SCREW 539990637
24 BUSHING 539991043
25 SPRING 539102642
26 LINK 539106891
27 SCREW 539101721
28 LIFT 539108349
29 SUPPORT 539104808
30 MATICE 539990717
31 PLATE 539104807
32 SPLIT PIN 539990654
33 NIPPLE 539101474
539107031 LEVER,LEFT 539107031
