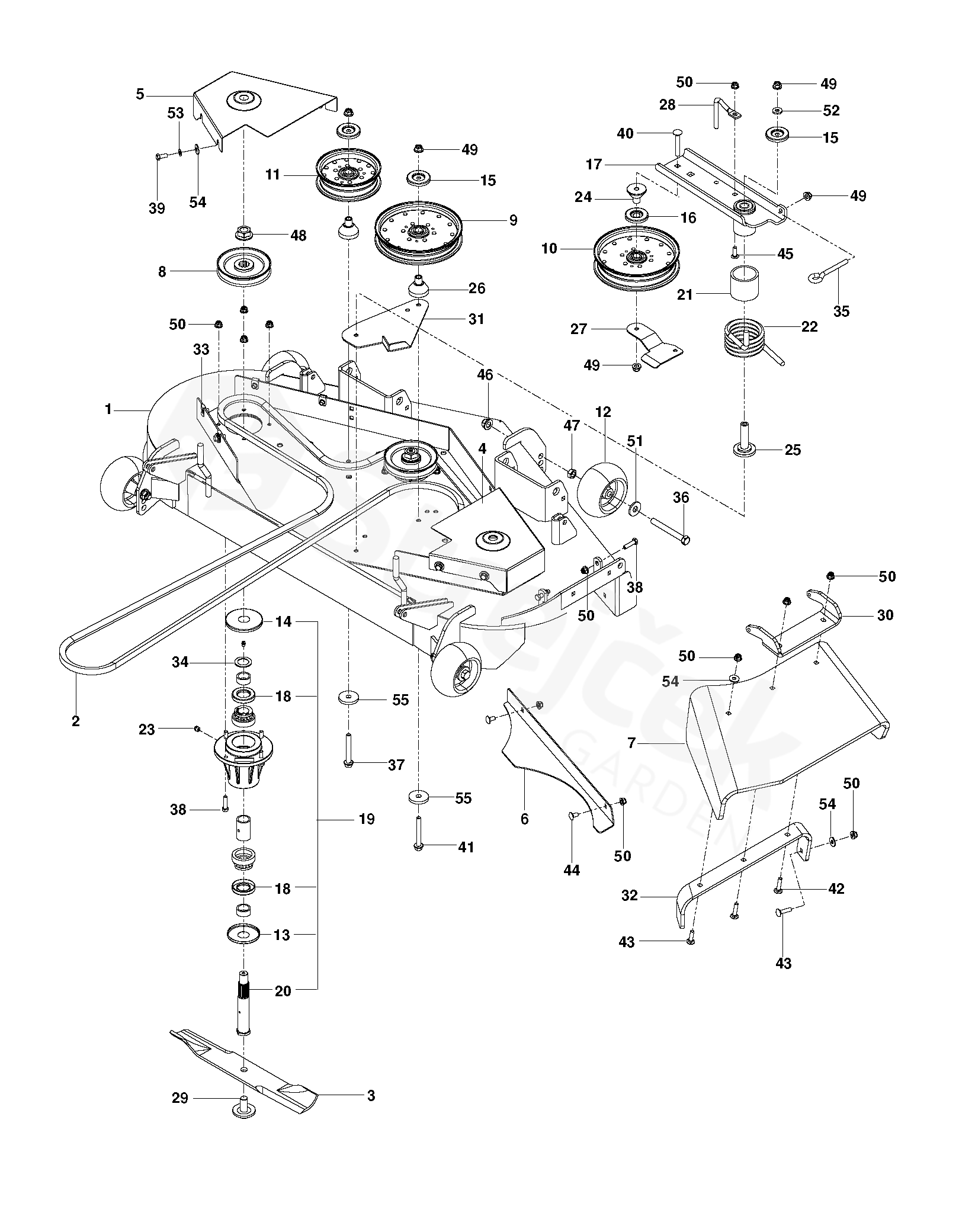

P-ZT4822FS P-ZT4822FS, 966613301, 2010-11

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For P-ZT4822FS, 966613301, 2010-11

1	DECK w/ SAFETY DECALS	576769201
2	BELT	576479801
3	BLADE - HEAVY DUTY 16 1/4"	539106040
4	BELT SHIELD - R.H. ORANGE RT	539113411
5	BELT SHIELD - L.H. ORANGE LT	539113413
6	48 CONFINEMENT PLATE - BLACK	539113427
7	CHUTE	576422501
8	42-48 PULLEY	539112141
9	PULLEY	510015101
10	PULLEY	525598201
11	PULLEY	539103257
12	WHEEL	539107610
13	HUB CAP	539108449
14	HUB CAP	539108450
15	KRYT	510254501
16	SHIELD	510262201
17	WELDMENT	525464402
18	SEALING RING	539108754
19	HOUSING ASM. 52/61	539131383
20	SPACER	510264201
21	SPACER	525465601
22	SPRING	525310901
23	BEARING. BALL	539112050
24	BEARING	510263701
25	BEARING	522729701
26	BEARING	577073401
27	GUIDE	574262102
28	KEEPER	574262201
29	SCREW	539119007
30	PIVOT BRACKET - CHUTE	539130917
31	BRACKET	576388702
32	BRKT. REINF - CHUTE 52/61"	539130920
33	CLIP	539104763
34	MACHINE BUSHING	539916561
35	EYEBOLT	574202001
36	SCREW	539108366
37	SCREW	539101686
38	SCREW	539990627
39	SCREW	539976934
40	SCREW	539128101
41	HHFS	577117701
42	RHSNB 5/16-18 X 1-1/2 GR 5 ZD	539102933
43	SCREW	539100472
44	BOLT	539990799
45	SCREW	539107271
46	MATICE	521991101
47	NUT	539990625
48	NUT - FLANGE 3/4-16	539130653
49	MATICE	521996501
50	BOLT RETAINER 3/8	539112899
51	GUARD	539109554
52	NUT, 5/16-18, NYLOC	522023401
53	WASH 5/16 DISC SPRING ZD	539109600
54	PODLOŽKA	539990692
55	PODLOŽKA	539106504
56	ZERK	539977326
57	NIPPLE	539101474
