Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > ZTH 5223 KOLA ZTH5223KOLA, 968999162, 2002-10 > ENGINE
Back to

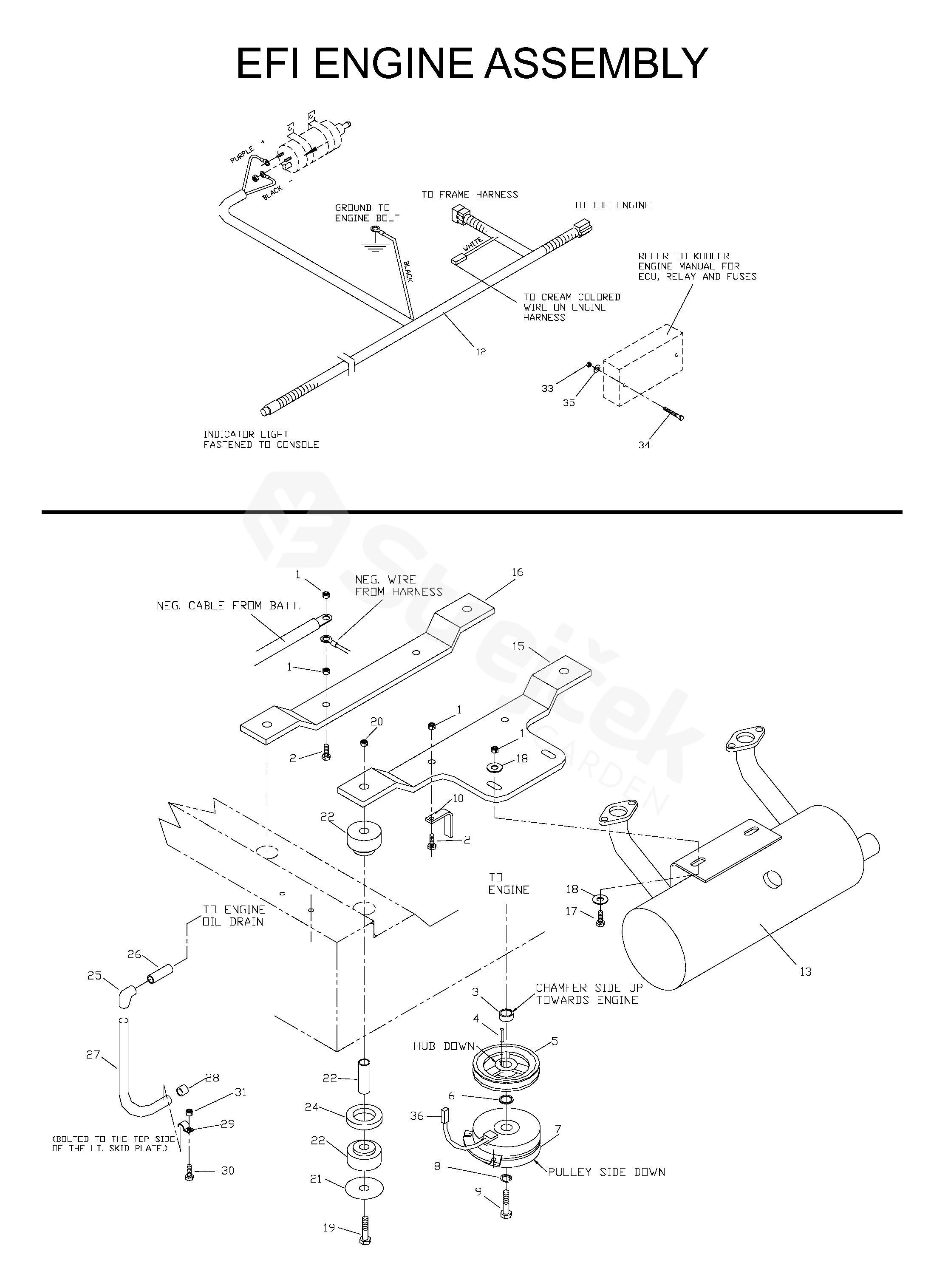

ENGINE
ZTH 5223 KOLA ZTH5223KOLA, 968999162, 2002-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ZTH5223KOLA, 968999162, 2002-10
1 NUT 539990184
2 SCREW 539990669
3 SPACER 539104427
4 KEY 539105308
5 PULLEY 539104429
6 SPACER 539104428
7 CLUTCH 539105406
8 LOCKWASHER 539990427
9 SCREW 539991120
10 BRACKET 539103251
12 WIRE HARNESS - EFI 539105333
13 MUFFLER/EFI KOHLER GEN II 539105335
15 REAR ENGINE MOUNT 539105410
16 ENGINE MOUNT 539105025
17 SCREW 539990209
18 PODLOŽKA 539990692
19 SCREW 539103433
20 NUT 539101331
21 WASHER 539104959
22 INSULATOR 539104958
24 SPACER 539105034
25 90DEG.ELBOW 3/8NPT 539105072
26 3/8 NPT.1.5 PIPE 539105073
27 OIL DRAIN HOSE 539101362
28 DRAIN CAP 539101364
29 CLAMP 539101363
30 SCREW 539990580
31 NUT 539990761
32 SCREW 539991034
33 NUT 539976977
34 BOLT 539105407
35 WASHER #10 539105408
36 CLUTCH HARNESS 539105637
