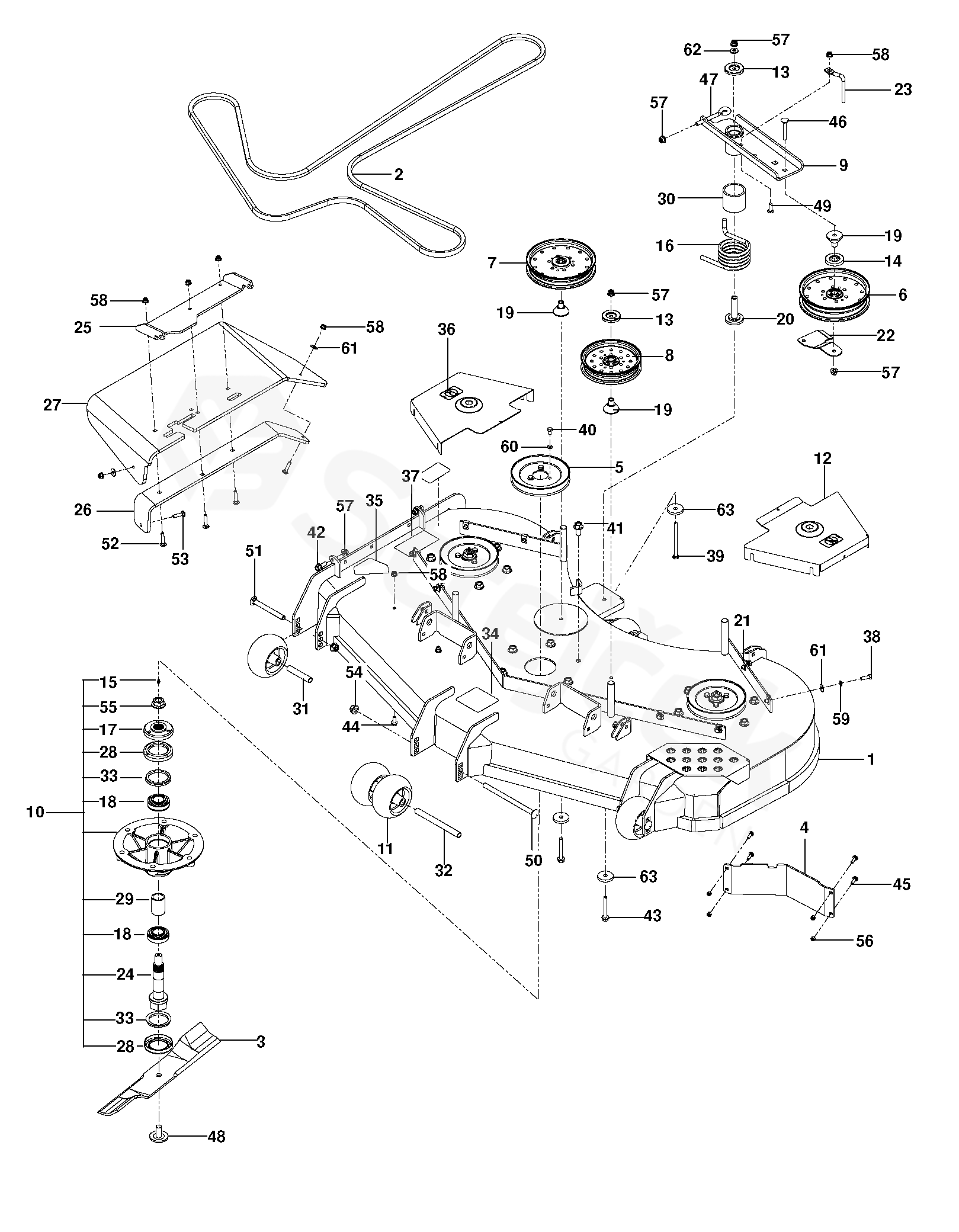

Spare parts - Partlist - PZ 29D CE PZ29D CE, 966616701, 2012-02 - MOWER DECK / CUTTING DECK

Everything for your machines

PZ 29D CE PZ29D CE, 966616701, 2012-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PZ29D CE, 966616701, 2012-02

1	DECK w/ SAFETY DECALS w/ SAFETY DECALS	574497201
2	BELT	522860201
3	BLADE	539105711
4	BAFFLE	510437502
5	PULLEY - 6.57	539130646
6	PULLEY	510015101
7	PULLEY	525598201
8	PULLEY	510019601
9	ASSEMBLY	574722201
10	SPINDLE	525836401
11	ROLLER	574169601
12	SHIELD	510131202
13	KRYT	510254501
14	SHIELD	510262201
15	NIPPLE	539976998
16	SPRING	525310901
17	HUB	539130637
18	BEARING	539130638
19	BEARING	510263701
20	BEARING	522729701
21	CLIP	539104763
22	GUIDE	574262102
23	KEEPER	574262201
24	SHAFT	525836001
25	BRACKET	574197002
26	BRACKET	525486002
27	CHUTE	525485801
28	CUP	539130643
29	SPACER - BEARING	539130641
30	SPACER	525465601
31	TRUBKA	574196401
32	TRUBKA	574196501
33	V-RING. 55MM	539130639
34	DECAL	574437301
35	DECAL	539913010
36	DECAL	539105743
37	DECAL	539105746
38	SCREW	539990209
39	SCREW	539101686
40	HCS	539130315
41	HHFS	574210601
42	HHFS	525612801
43	HHFS 3/8-16 X 2 3/4	539131781
44	SCREW	525464701
45	* BOLZEN	539115620
46	SCREW	539128101
47	EYEBOLT	574202001
48	SCREW	539119007
49	SCREW	539107271
50	RHSNB	510022401
51	SCREW	510022301
52	RHSNB 5/16-18 X 1-1/2 GR 5 ZD	539102933
53	SCREW	539100472
54	MATICE	521991101
55	NUT - FLANGE 3/4-16	539130653
56	MATICE	539976978
57	MATICE	521996501
58	BOLT RETAINER 3/8	539112899
59	PODLOŽKA	539990187
60	WASH 5/16 DISC SPRING ZD	539109600
61	PODLOŽKA	539990692
62	NUT, 5/16-18, NYLOC	522023401
63	PODLOŽKA	539106504
