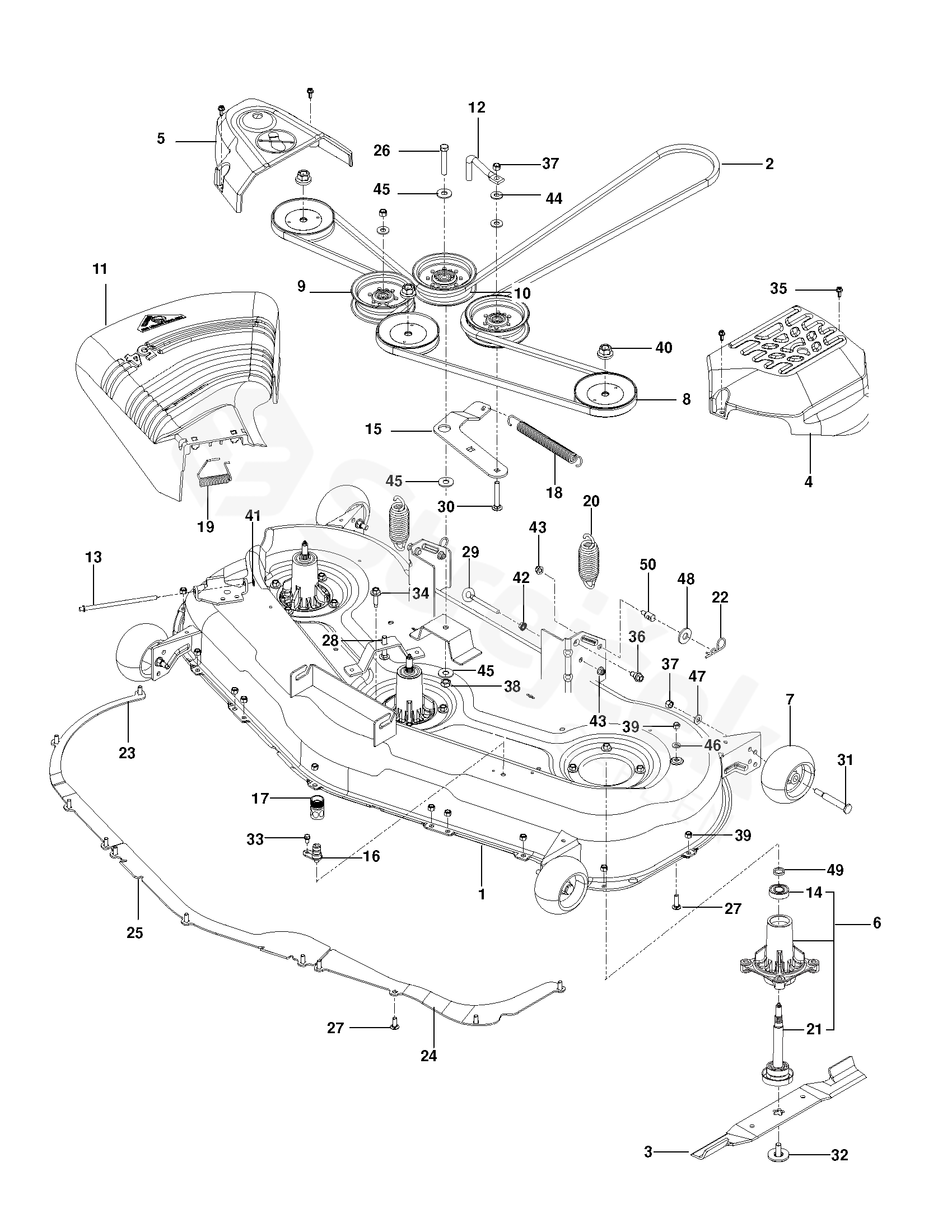

Spare parts - Partlist - Z 254i Z 254i, 967324201, 2015-01 - MOWER DECK / CUTTING DECK

Everything for your machines

Z 254i Z 254i, 967324201, 2015-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Z 254i, 967324201, 2015-01

1	DECK	583909301
2	BELT	539114557
3	RIDE ON BLADE	532187256
4	COVER	532187297
5	COVER	532188187
6	DOMEČEK "INCL HOUSING(KEY#14), SHAFT ASSEMBLY(KEY#13), AND BEARING ONLY(KEY #15)- PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCL"	587125401
7	WHEEL	532133957
8	PULLEY	532173436
9	IDLER PULLEY	532196106
10	IDLER PULLEY	532196104
11	DEFLECTOR	532187257
12	KEEPER	522629701
13	HRÍDEL	532131491
14	BEARING	532110485
15	ARM	510220002
16	PORT.WASHOUT	532415598
17	COUPLING	532416405
18	SPRING DECK BELT	539120920
19	SPRING	532178102
20	SPRING	539118762
21	SHAFT ASM MANDREL	532187291
22	SPLIT PIN	539976989
23	BAFFLE	532187342
24	BAFFLE LEFT	532187344
25	BAFFLE CENTER 54" MOWER	532187607
26	BOLT	539104870
27	BOLT	539990316
28	RHSNB 3/8C X 2	539100145
29	EYE BOLT	539115574
30	SCREW	539128101
31	BOLT	539107608
32	BOLT	539107522
33	SCREW	539108461
34	SCREW	539107630
35	SCREW	539107631
36	BOLT	532196539
37	END BRACKET	539976979
38	7/16-14 HEX NUT W/NYLOC	539119124
39	MATICE	539990717
40	NUT	539107590
41	NUT	539107626
42	LOCK NUT	539990585
43	BOLT RETAINER 3/8	539112899
44	PODLOŽKA	539990517
45	WASHER 7/16 FLAT ZD	539104864
46	PODLOŽKA	539990188
47	WASHER	539990122
48	GUARD	539109554
49	PODLOŽKA	532187690
50	ŠROUB	532195161
