Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > RZ 19 CE RZ 19 CE, 966658901-02, 2011-13 > BRAKE / REAR MOWER LIFT
Back to

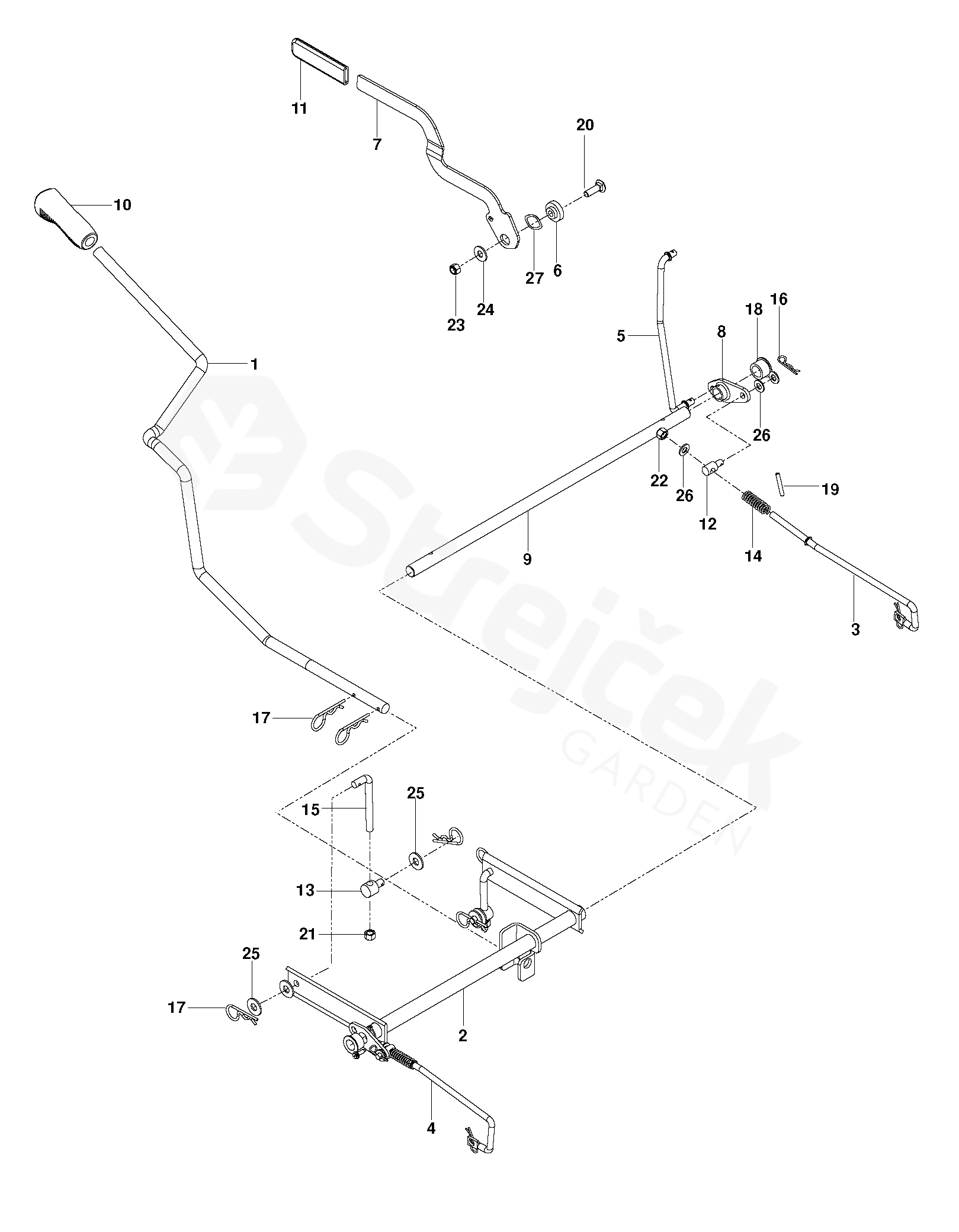

BRAKE / REAR MOWER LIFT
RZ 19 CE RZ 19 CE, 966658901-02, 2011-13
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RZ 19 CE, 966658901-02, 2011-13
1 ARM 525580402
2 WELDMENT 574356802
3 LINKAGE 525583601
4 LINKAGE 525583701
5 LINKAGE 525735701
6 BRAKE ARM PIVOT 539120220
7 HANDLE 525485602
8 BELLCRANK 525580201
9 ROD 574356601
10 LEVER
GRIP 		532445060
11 GRIP 539120921
12 BRAKE SWIVEL 539112308
13 SWIVEL 539118179
14 SPRING 539101224
15 -ROD 3.5 539115658
16 PIN RETAINING SCREW 539976988
17 SPLIT PIN 539976989
18 BUSHING 539109368
19 PIN RETAINING SCREW 539101082
20 RHSNB 3/8-16 X 1-1/4 GD5 ZN 539100413
21 END BRACKET 539976979
22 MATICE 539990717
23 NUT 539200282
24 WASHER 539102843
25 PODLOŽKA 819141614
26 PODLOŽKA 819111116
27 WASHER. .825 X 1.087. WAVE 539133007
