Spare parts
>
Husqvarna
>

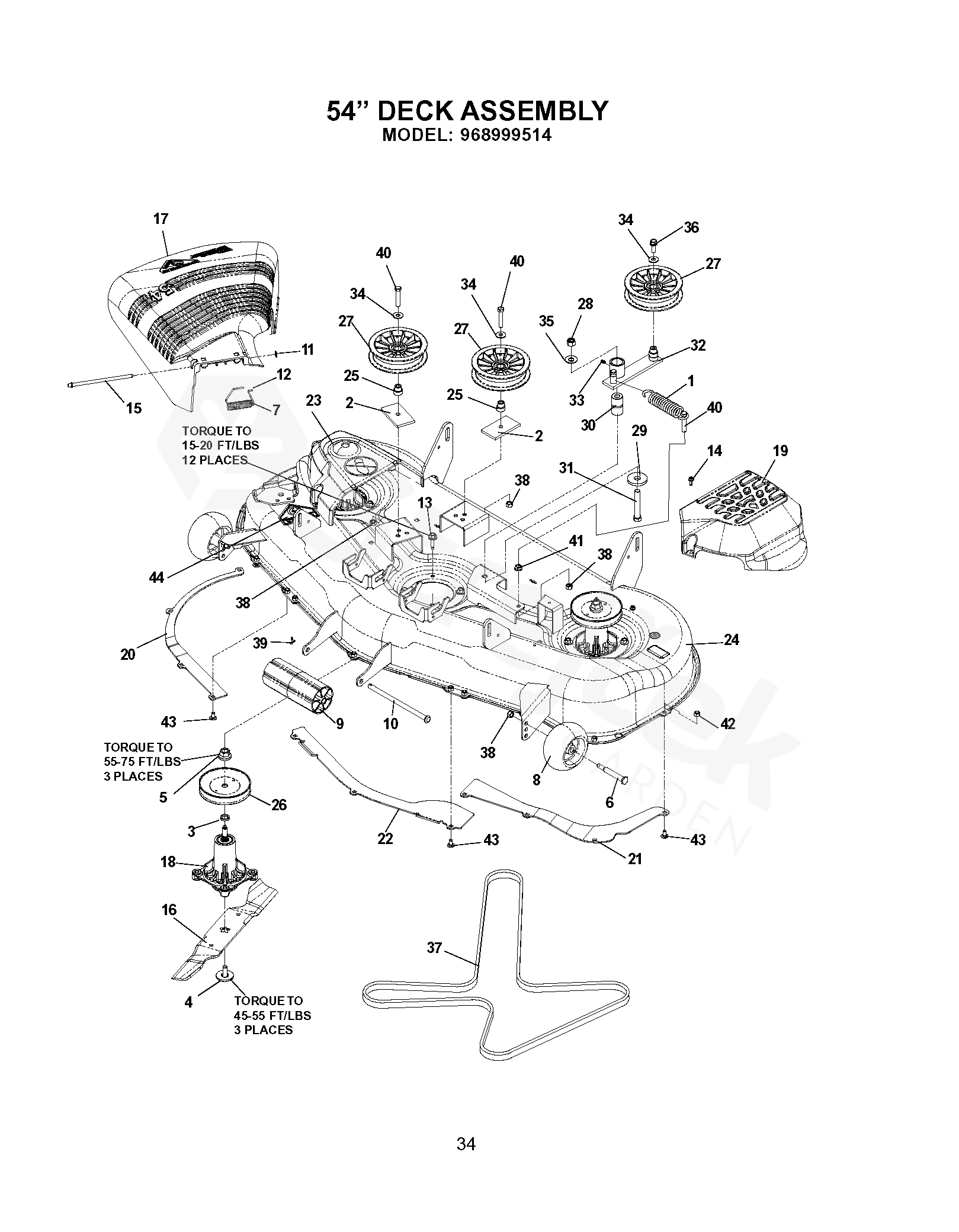

ZERO TURN: COMMERCIAL
>
EZ 5426 EZ 5426 BI, 968999514, 2006-06
>
MOWER DECK / CUTTING DECK
Back to
EZ 5426
EZ 5426 BI, 968999514, 2006-06
MOWER DECK / CUTTING DECK
EZ 5426
EZ 5426 BI, 968999514, 2006-06
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
EZ 5426 BI, 968999514, 2006-06
1
SPRING
539103256
2
SPACER
539103303
3
WASHER
539107520
4
BOLT
532174365
5
NUT
539107590
6
SCREW
532137644
7
SPRING
539107609
8
WHEEL
532133957
9
ROLLER
532176066
10
ROD
539107613
11
NUT
539107626
12
HUB CAP
539107627
13
SCREW
539107630
14
SCREW
539107631
15
HRÍDEL
532131491
16
BLADE
532187254
17
DEFLECTOR
532187257
18
MANDREL
532187292
19
BELT COVER
539112058
20
BAFFLE, RT
539112059
21
BAFFLE, LT
539112060
22
BAFFLE, CENTER
539112062
23
BELT COVER
539112063
24
DECAL
539112331
25
BUSHING
539112076
26
PULLEY
532173436
27
PULLEY
539112196
28
NUT
539101331
29
WASHER
539102243
30
BUSHING
539103427
31
SCREW
539103433
32
IDLER ARM
539112198
33
NIPPLE
539976998
34
PODLOŽKA
539990517
35
WASHER
539990550
36
SCREW
539990582
37
BELT
539112333
38
END BRACKET
539976979
39
PIN RETAINING SCREW
539990365
40
SCREW
539990588
41
NUT
539990613
42
MATICE
539990717
43
BOLT
539990799
44
DECAL
539913010
