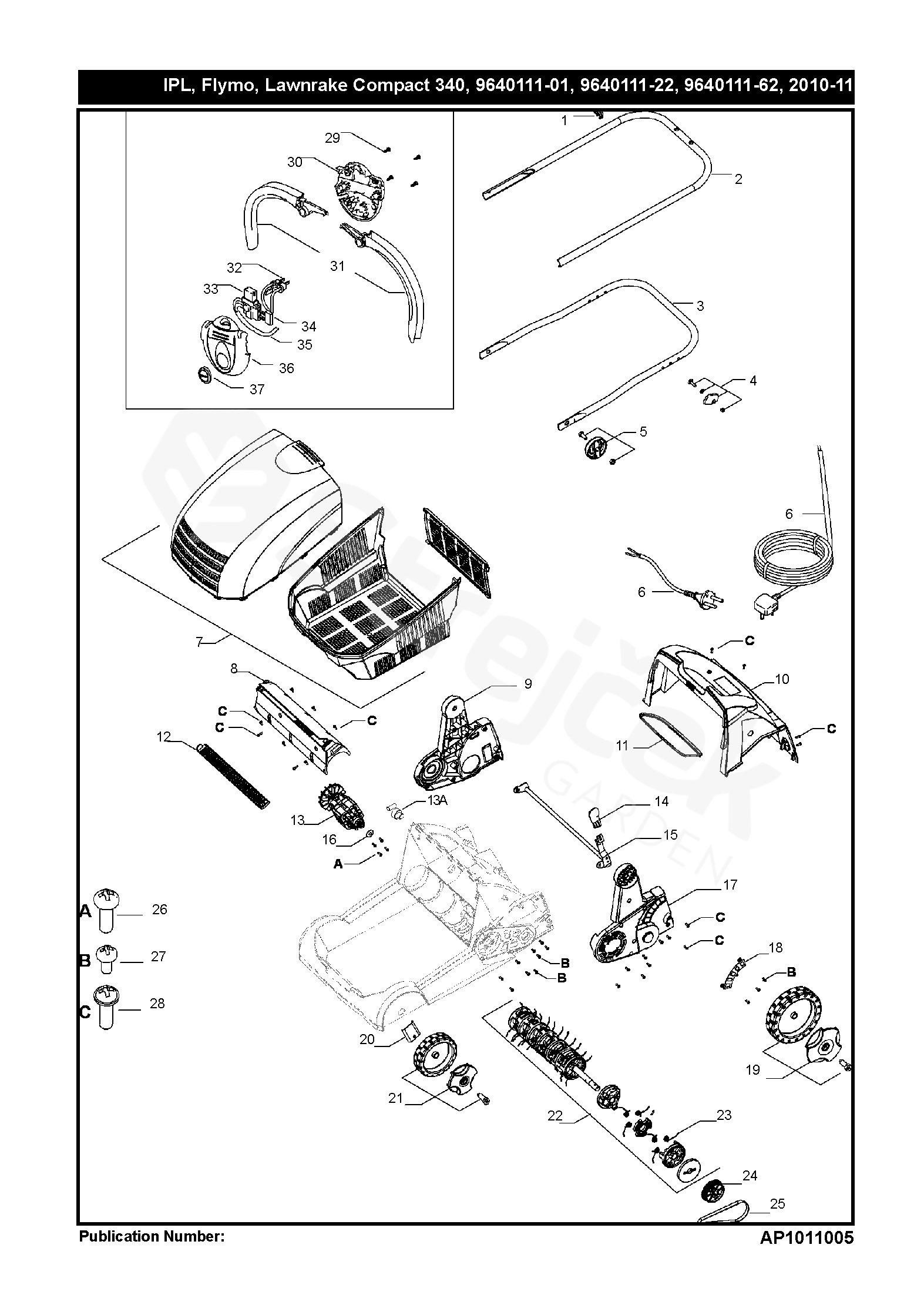

LAWNRAKE COMPACT 340 LAWNRAKE COMPACT 340, 964011101, 964011122, 964011162, nov-10

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For LAWNRAKE COMPACT 340, 964011101, 964011122, 964011162, nov-10

1	CLAMP	513857400
2	HANDLE	510726100
3	HANDLE	510726000
4	WING KNOB	511956300
5	LOWER WING KNOB	510725200
6	LEAD CH CH	514700003
7	COLLECTION BOX ASSEMBLY	510724100
8	BLOWER HOUSING ASSEMBLY	510724200
9	RH WHEEL ARCH (INC FILT	510725100
10	REAR COVER	510725800
11	VISION WINDOW	510725700
12	BLOWER FILTER ASSEMBLY	510724600
13	MOTOR ASSY	510724700
14	HEIGHT ADJUST HANDLE	510725400
15	HEIGHT ADJ SHAFT & LEVE	510724300
16	DRIVE PULLEY FLANGE	510725300
17	LH WHEEL ARCH (INC FILT	510725000
18	HEIGHT POSITION PLATE	510725500
19	LARGE WHEEL ASSEMBLY	510724500
20	FIXING PLATE	510725900
21	SMALL WHEEL ASSEMBLY (Q	510724000
22	TINE RACK ASSEMBLY	510724800
23	COMPL TINE SET	510724400
24	DRIVEN PULLEY ASSEMBLY	510724900
25	BELT	510725600
26	SCREW KIT	510726200
27	SCREW KIT	510726300
28	SCREW KIT	510727700
29	SCREW	513087300
30	SWITCHBOX LOWER HARDWIRED GREY UK, CH	511948368
31	HANDLE	513089600
32	PIN RETAINER EU	513111700
33	SWITCH	513050400
34	CAPACITOR	514839701
35	CABLE WITH SUPPRESSORS	510757000
36	SPÍNACÍ SKŘÍŇKA Upper	511945668
37	BUTTON	513103064
13A	DRIVING PULLEY ASSY	577111701
