Spare parts > Flymo > LAWN MOWERS: CONSUMER WALK-BEHINDS > FL350KD FL350KD, 96111000301, 2007-06 > PRODUCT COMPLETE
Back to

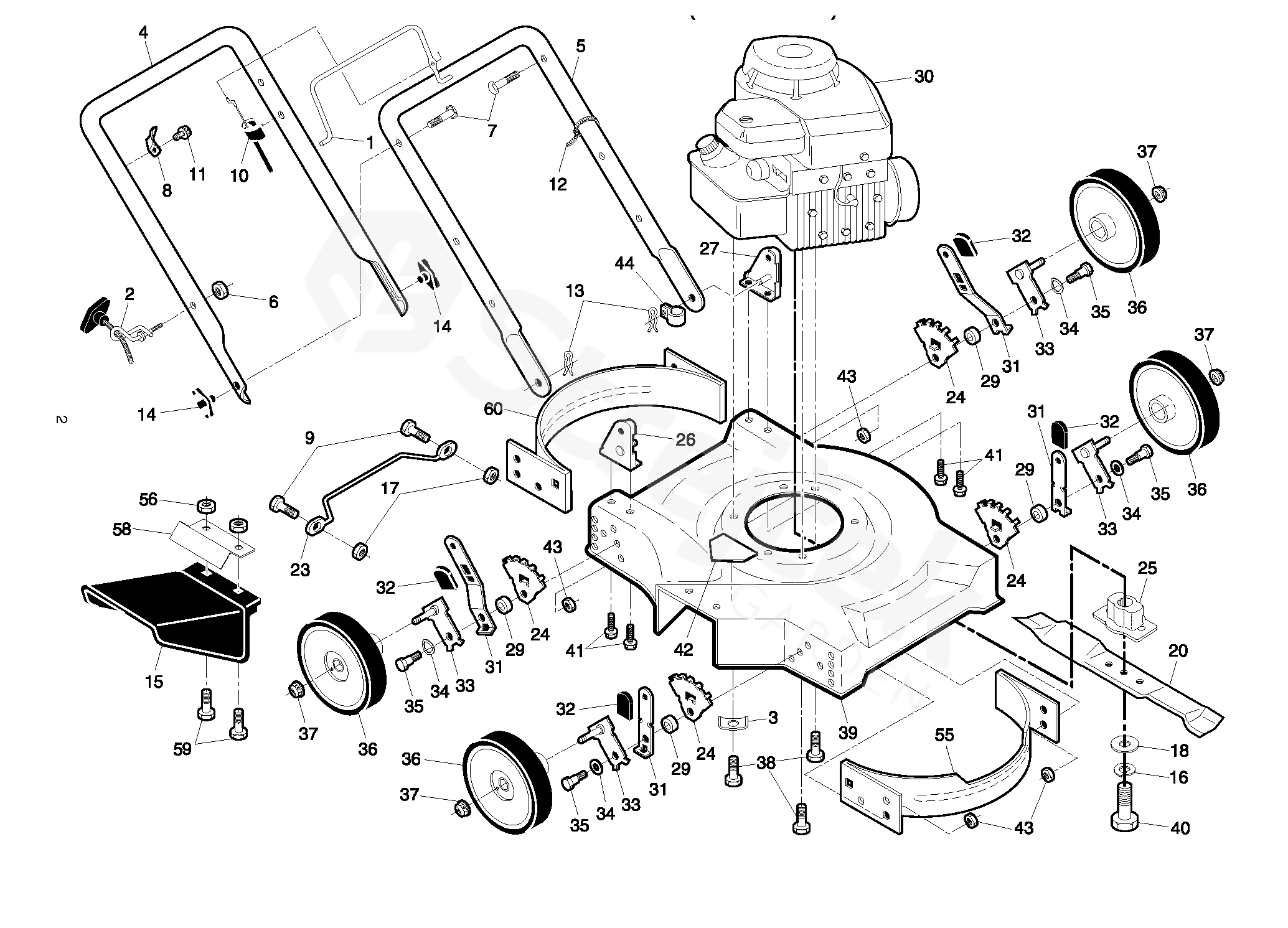

PRODUCT COMPLETE
FL350KD FL350KD, 96111000301, 2007-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FL350KD, 96111000301, 2007-06
1 CONTROL 532196025
2 GUIDE 532194788
3 WASHER 532125078
4 HANDLE 532196026
5 HANDLE 532155044
6 MATICE 532132004
7 HANDLE BOLT 532191574
8 BRACKET 532125203
9 SCREW 532085825
10 CONTROL 532162778
11 SCREW 532750634
12 HOOP 532066426
13 PIN RETAINING SCREW 532051793
14 KNOB 532191938
15 GUARD.DISCHARGE.ECONOM*SUBS/2* 532413568
16 PODLOŽKA 532850263
17 NUT 532069180
18 PODLOŽKA 532851074
20 BLADE 532145106
23 PROTECTOR 532154147
24 BRACKET 532410807
25 BLADE ADAPTOR USA 7/8" 532850977
26 BRACKET 532170975
27 BRACKET 532170977
29 SPACER 532401629
31 SPRING 532406428
32 KNOB 532087877
33 AXLE 532407871
34 WASHER 532401630
35 BOLT 532142748
36 WHEEL 532403859
37 MATICE 532409148
38 BOLT 532150406
39 HOUSING ASSY 532196646
40 SCREW 532851084
41 SCREW 532149741
42 DECAL 532182166
43 LOCKNUT 3/8-16 RL508A/B 532751592
44 CLIP 532197991
45 NÝT 532128415
55 FRONT BAFFLE 532141519
56 MATICE 873800400
58 BRACKET 532162234
59 BOLT 874760412
60 REAR BAFFLE 532141520
