Flymo
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
QUICKSILVER 40S QUICKSILVER 40S, 962000129, 2008-04
>
PRODUCT COMPLETE
Back to
QUICKSILVER 40S
QUICKSILVER 40S, 962000129, 2008-04
PRODUCT COMPLETE
QUICKSILVER 40S
QUICKSILVER 40S, 962000129, 2008-04

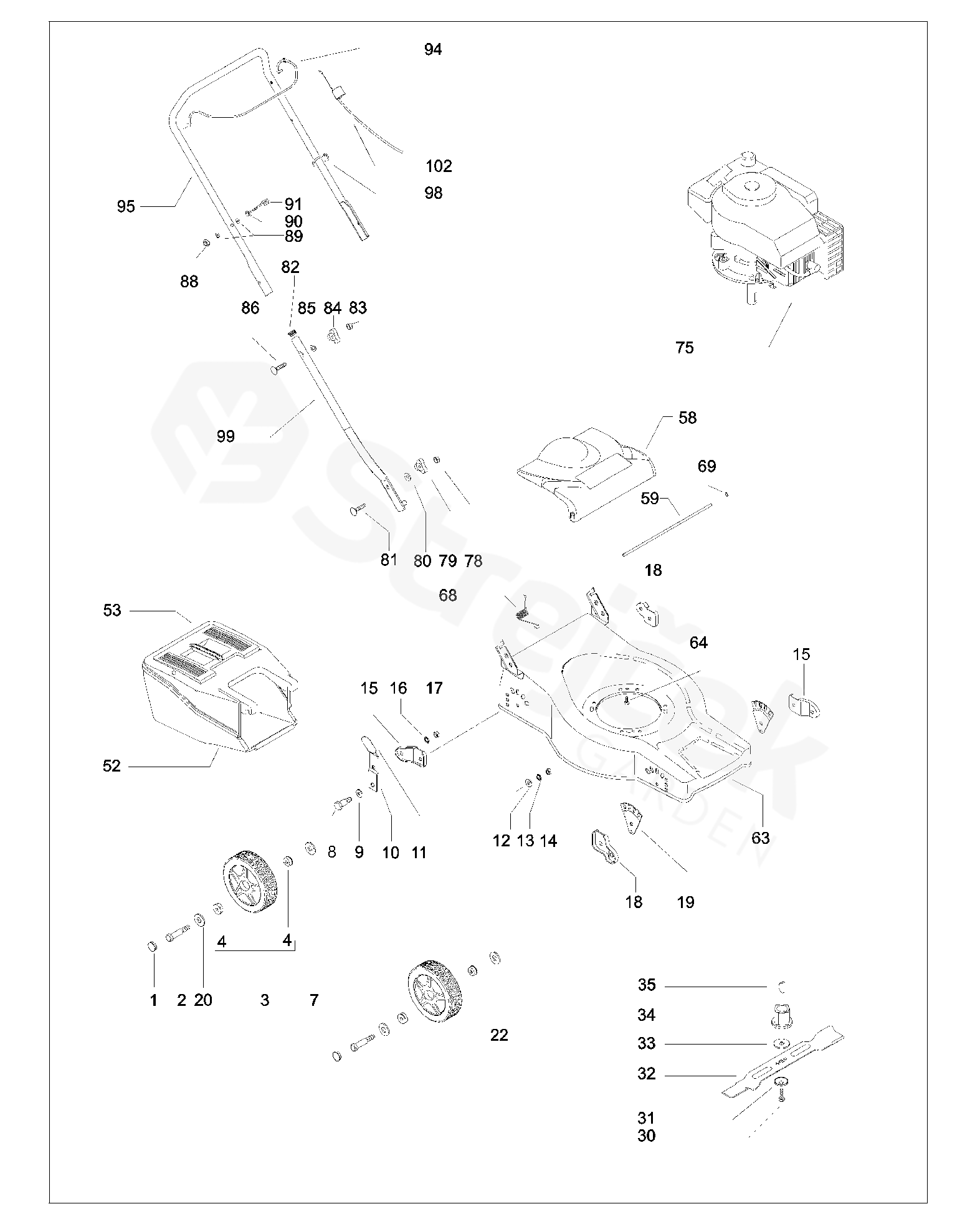

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
QUICKSILVER 40S, 962000129, 2008-04
1
PLUG
531210795
2
SCREW
531205042
3
WHEEL
531212635
4
BALL BEARING
531213828
7
WASHER
505227401
8
SCREW
531204912
9
WASHER
531206643
10
LEVER
531212457
11
KNOB
531207986
12
WASHER
531207989
13
PODLOŽKA
531208974
14
NUT
531207978
15
PLATE
531212458
16
PODLOŽKA
531208974
17
NUT
531207978
18
PLATE
531212459
19
TOOL
531212987
20
WASHER
531206644
22
WASHER
531206020
30
SCREW
531208008
31
WASHER
531207237
32
MOWER BLADE
531211653
33
WASHER
531207243
34
ADAPTER
531207242
35
KEY
531204907
52
BAG
531208313
53
COVER
531208296
58
DEFLECTOR
531212541
59
SHAFT
531205060
63
DECK
531211076
64
SCREW
531212851
68
SPRING
531205999
69
RETAINING RING
531207657
78
NUT
531207982
79
WING NUT
531204923
80
WASHER
531204922
81
SCREW
531204921
82
PLUG
531208950
83
NUT
531207982
84
WING NUT
531204923
85
WASHER
531207090
86
SCREW
531207089
88
NUT
531208491
89
PODLOŽKA
531204961
90
NUT
531207165
91
PIN RETAINING SCREW
531205169
94
LOOP
531205168
95
HANDLE
531205204
98
CABLE HOLDER
531205581
99
HANDLE
531206071
102
WIRE
531206026
