Spare parts - Partlist - ROLLER COMPACT 4000 ROLLER COMPACT 4000, 9644414-01, 9644414-62, 2007-02 - PRODUCT COMPLETE

Everything for your machines

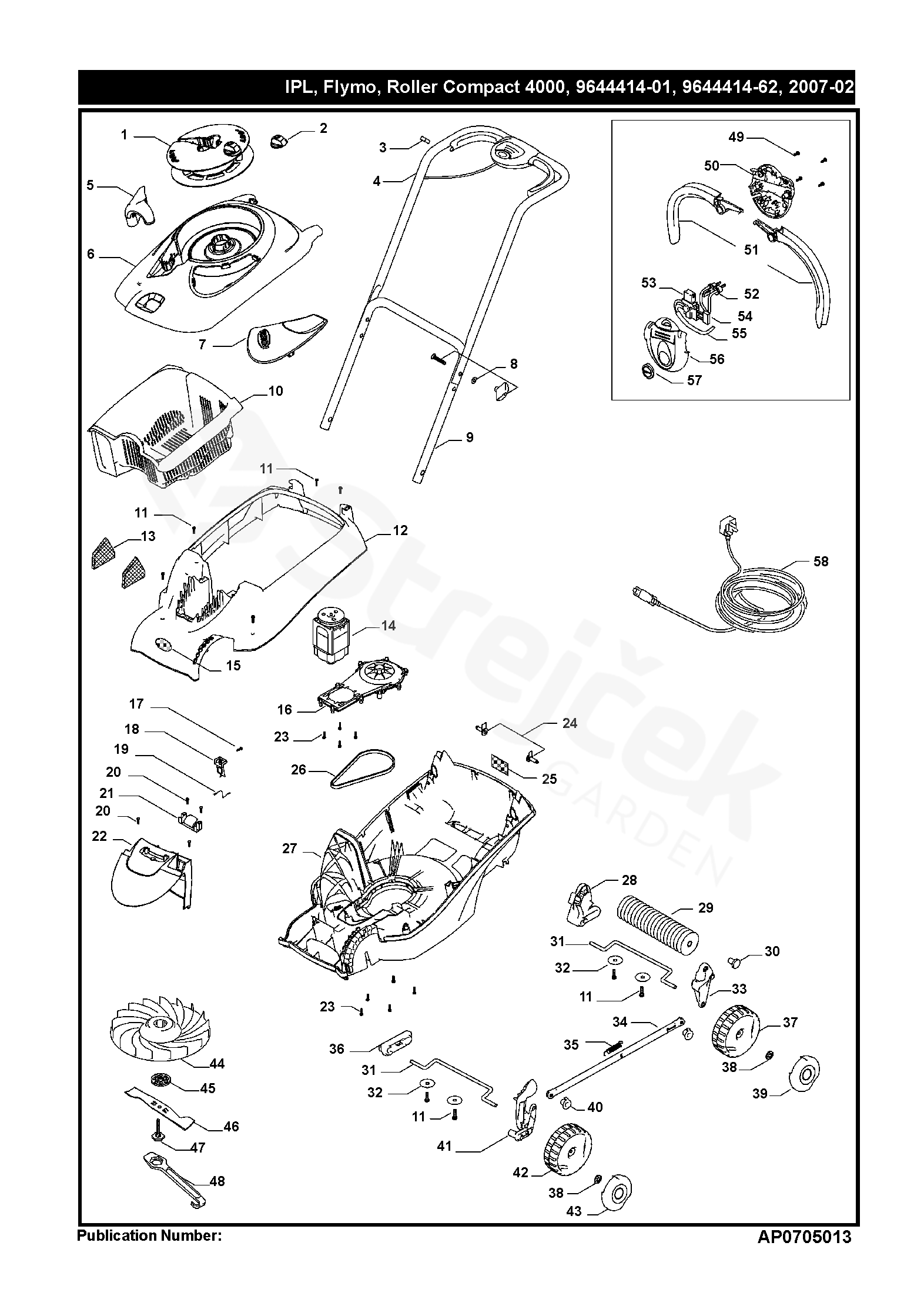

ROLLER COMPACT 4000 ROLLER COMPACT 4000, 9644414-01, 9644414-62, 2007-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ROLLER COMPACT 4000, 9644414-01, 9644414-62, 2007-02

1	SPOOL	510804500
2	KNOB	513130900
3	CLAMP	513857400
4	HANDLE	511830300
5	CABLE GUIDE	512822300
7	VISION WINDOW,	511958100
9	HANDLE	511832300
10	GRASS BASKET	510710200
11	SCREW	510722901
13	FILTER	513109200
14	ENGINE	511973800
15	BADGE	510740601
16	DRIVE ASSY CENTRIFUGAL RC	510763600
17	SCREW	513075500
18	SWITCH BRACKET ASSY	513070100
19	LEAD	510722100
20	SCREW	514975301
21	MOULDING	512787100
22	MOTOR COWL	510710100
23	SCREW	513119100
24	PIN RETAINING SCREW	513068000
25	LABEL WARNING	513858700
26	BELT,	513120800
27	DECK	510757500
28	SPACER	512820500
29	ROLLER	512820400
30	PIN ROLLER	510763400
31	AXLE	512819900
32	PODLOŽKA	513918900
33	SPACER	512820300
34	LINK ROD	512818200
35	SPRING	513109000
36	SPACER	513108900
37	WHEEL	512820600
38	PODLOŽKA	514968000
39	HUB CAP	512820700
40	PIN RETAINING SCREW	513109100
41	LEVER	512820000
42	WHEEL	512820100
43	HUB CAP	512820200
44	IMPELLER	511948100
45	SPACER UK Only	513125600
47	BLADE	510777900
48	SPANNER	510778064
49	SCREW	513087300
50	SPÍNACÍ SKŘÍŇKA Lower - Euro Inlet EU	511945868
51	HANDLE	513089600
52	PIN RETAINER EU	513111700
53	SWITCH	513050400
54	CAPACITOR	514839701
55	LEAD ASSY	513071001
56	SPÍNACÍ SKŘÍŇKA Upper	511945668
57	BUTTON	513103064
58	EXTENSION CABLE UK	512725005
