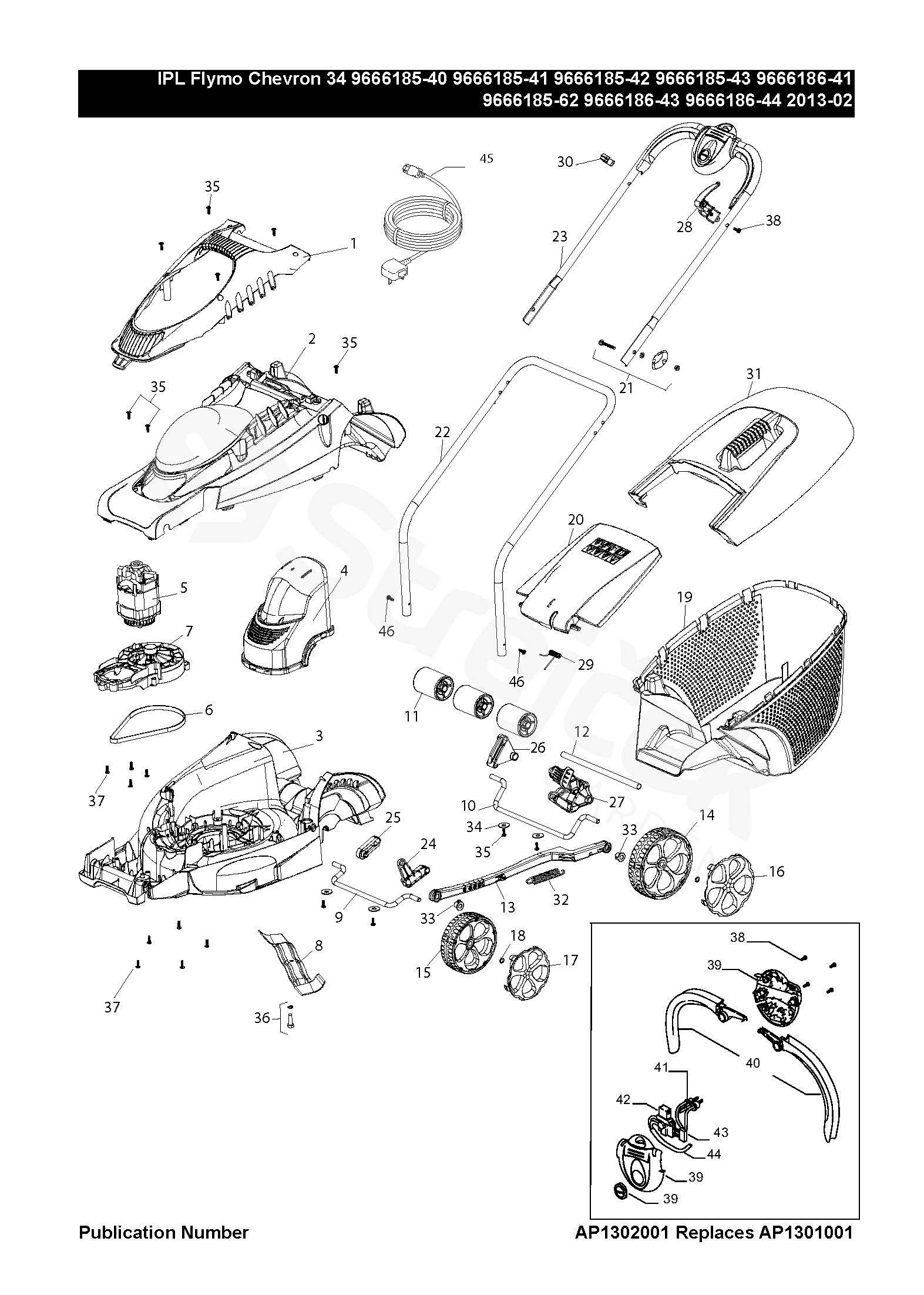

CHEVRON 34 CHEVRON 34, 966618540, 966618541, 966618542, 966618543, 966618641, 966618562, 966618643, 966618644, 2013-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For CHEVRON 34, 966618540, 966618541, 966618542, 966618543, 966618641, 966618562, 966618643, 966618644, 2013-02

1	HANDLE	575583568
2	DECK	575583064
3	DECK	575582968
4	FILTER	575581967
5	MOTOR KIT	511789995
6	BELT	575502601
7	BASEPLATE	575717902
8	MOWER BLADE	577366490
9	AXLE	575583601
10	AXLE	575583701
11	ROLLER SEGMENT	510738400
12	AXLE TUBE	514961103
13	ROD	575582301
14	WHEEL	575582667
15	WHEEL	575582567
16	HUB CAP	575582806
17	HUB CAP	575582706
18	WASHER STARLOCK	577713701
19	GRASSBAG	575583368
20	SAFETY FLAP	575583172
21	KIT	511956390
22	HANDLE	576137368
23	HANDLE UPPER	576437568
24	ROZPĚRKA	575582067
25	ROZPĚRKA	575582167
26	SPACER	575582267
27	ARM	575582464
28	HOOK	510746200
29	SPRING	505474301
30	CLAMP	513857400
31	LID	575583464
32	PRUŽINA	510805100
33	PEN	513109167
34	PODLOŽKA	513918900
35	SCREW	577713801
36	BOLT	577713901
37	SCREW KIT	577298601
38	SCREW	510779600
39	BUTTON EU	513103064
40	HANDLE	513089600
41	PIN RETAINER	513111700
42	SWITCH	522720901
43	CAPACITOR	513121600
44	LEAD ASSEMBLY SWITCHBOX	513121902
45	ELECTRIC CORD UK	510372590
46	SCREW KIT	577759001
