Spare parts > Flymo > LAWN MOWERS: ELECTRIC > EASIBAG EASIBAG, 9633522-01, 2007-03 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

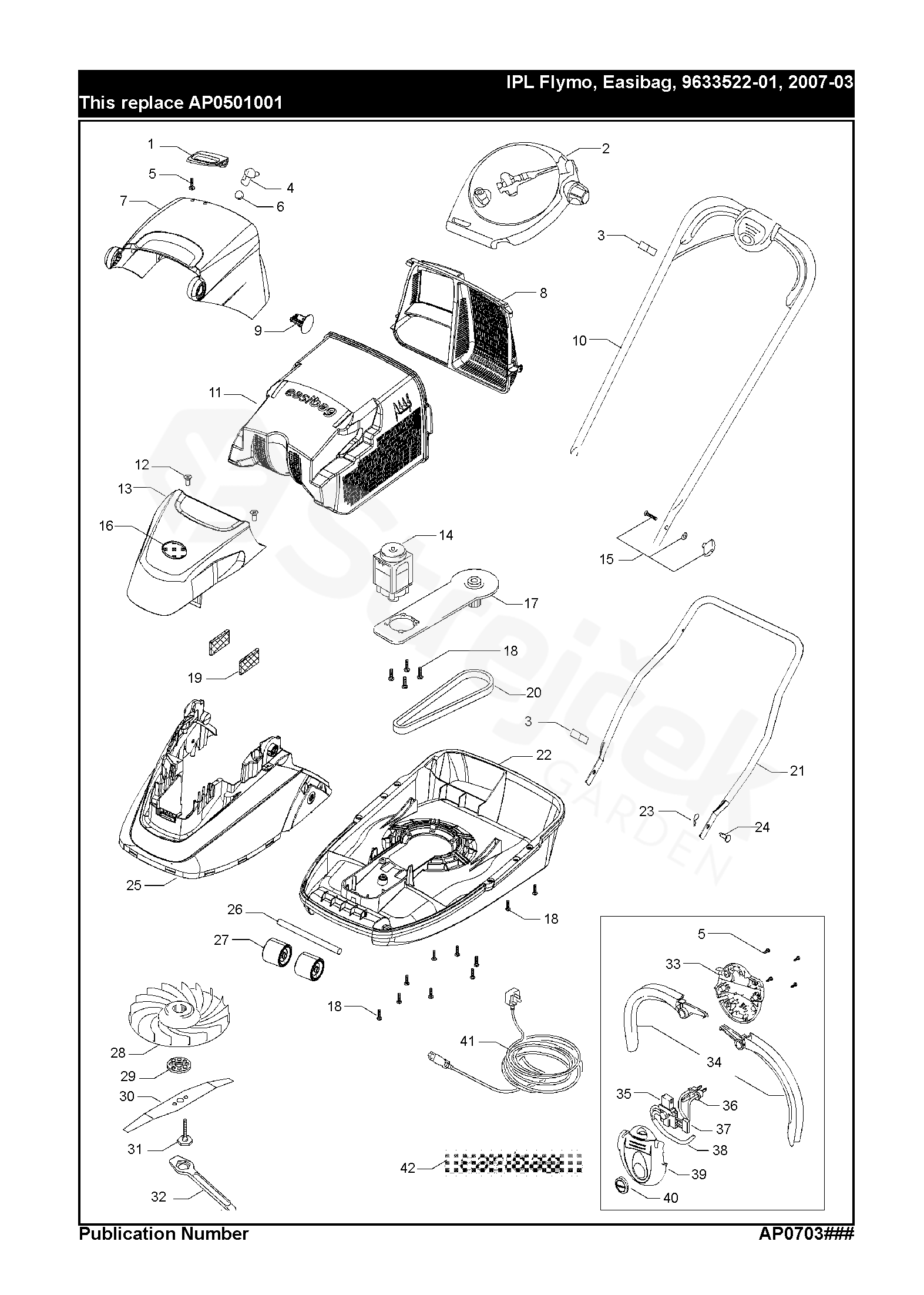

EASIBAG EASIBAG, 9633522-01, 2007-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EASIBAG, 9633522-01, 2007-03
1 HANDLE LID, 511972300
2 EASI REAL ACCESSORY UK, 964663001
3 CLAMP 513857400
4 INDICATOR 512771100
5 SCREW 513087300
6 BALL 514927700
7 LID 510716100
8 SCREEN 511969000
9 PIVOT PIN 512825300
10 HANDLE 512792768
11 GRASSBOX, 510716300
12 SCREW 514911700
13 MOTOR COVER 511968900
14 MOTOR KIT 511789964
15 WING KNOB 511956300
16 BADGE 510740601
17 DRIVE ASSY 511962101
18 SCREW 513119100
19 FILTER 513833900
20 BELT 513050300
21 LOWER HANDLE, 511969100
22 HOOD 510722400
23 CLIP 514042300
24 PIVOT PIN 514009203
25 CASING 510716200
26 SHAFT 514961100
27 ROLLER 512773500
28 IMPELLER 511722705
29 SPACER 513811001
30 BLADE 511835700
31 BLADE BOLT, 513113300
32 SPANNER 510778064
33 SWITCHBOX LOWER UK INLET GREY
UK 		511945768
34 HANDLE 513089600
35 SWITCH 513050400
36 PEN
UK 		512769600
37 CAPACITOR 514839701
38 SPARES LEAD KIT,
Square 		511943100
39 SPÍNACÍ SKŘÍŇKA Upper 511945668
40 BUTTON 513103064
41 EXTENSION CABLE 512725006
