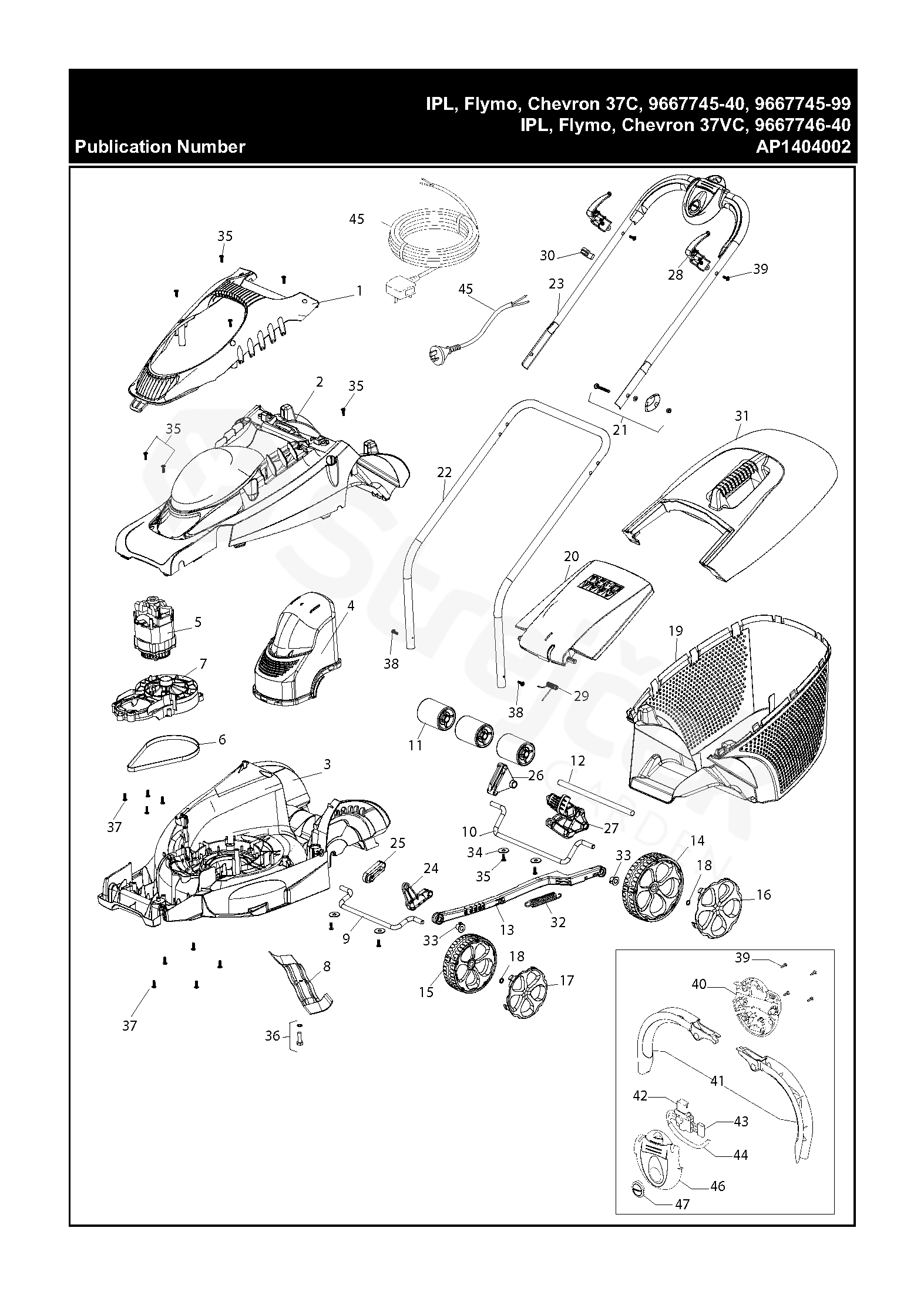

Chevron 37VC Chevron 37VC, 966774640, 2014-04

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Chevron 37VC, 966774640, 2014-04

1	HANDLE	575583568
2	DECK C C	575718204
3	DECK SHELL	578906768
4	FILTER	578906267
5	MOTOR KIT	511789996
6	BELT	575502601
7	DRIVER ASSY	578879002
8	MOWER BLADE	579041990
9	AXLE	575583601
10	AXLE	575583701
11	ROLLER SEGMENT	510738400
12	AXLE TUBE	514961103
13	ROD	575582301
14	WHEEL	575582667
15	WHEEL	575582567
16	HUB CAP	575582806
17	HUB CAP	575582706
18	WASHER STARLOCK PACK OF 4	577713601
19	GRASSBAG	575583368
20	SAFETY FLAP	575583172
21	KIT	511956390
22	HANDLE	576137368
23	HANDLE	578896768
24	ROZPĚRKA	575582067
25	ROZPĚRKA	575582167
26	SPACER	575582267
27	ARM	575582464
28	HOOK	510746200
29	SPRING	505474301
30	CLAMP	513857400
31	LID	579145801
32	PRUŽINA	510805100
33	PEN	513109167
34	PODLOŽKA	513918900
35	SCREW PACK OF 5	577713801
36	BOLT	577713901
37	SCREW KIT PACK OF 5	577298601
38	SCREW KIT PACK OF 2	577759001
39	SCREW	579443701
40	SWITCHBOX LOWER HARDWIRED GREY	511948368
41	HANDLE	513089600
42	SWITCH	522720901
43	CAPACITOR	513121600
44	LEAD ASSEMBLY SWITCHBOX	513121902
45	INSULATED LEAD,	513125300
46	SPÍNACÍ SKŘÍŇKA Upper	511945668
47	BUTTON	513103064
