Spare parts > Flymo > LAWN MOWERS: ELECTRIC > TURBO COMPACT 330 TURBO COMPACT 330, 966848401, 2008-03 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE
TURBO COMPACT 330 TURBO COMPACT 330, 966848401, 2008-03

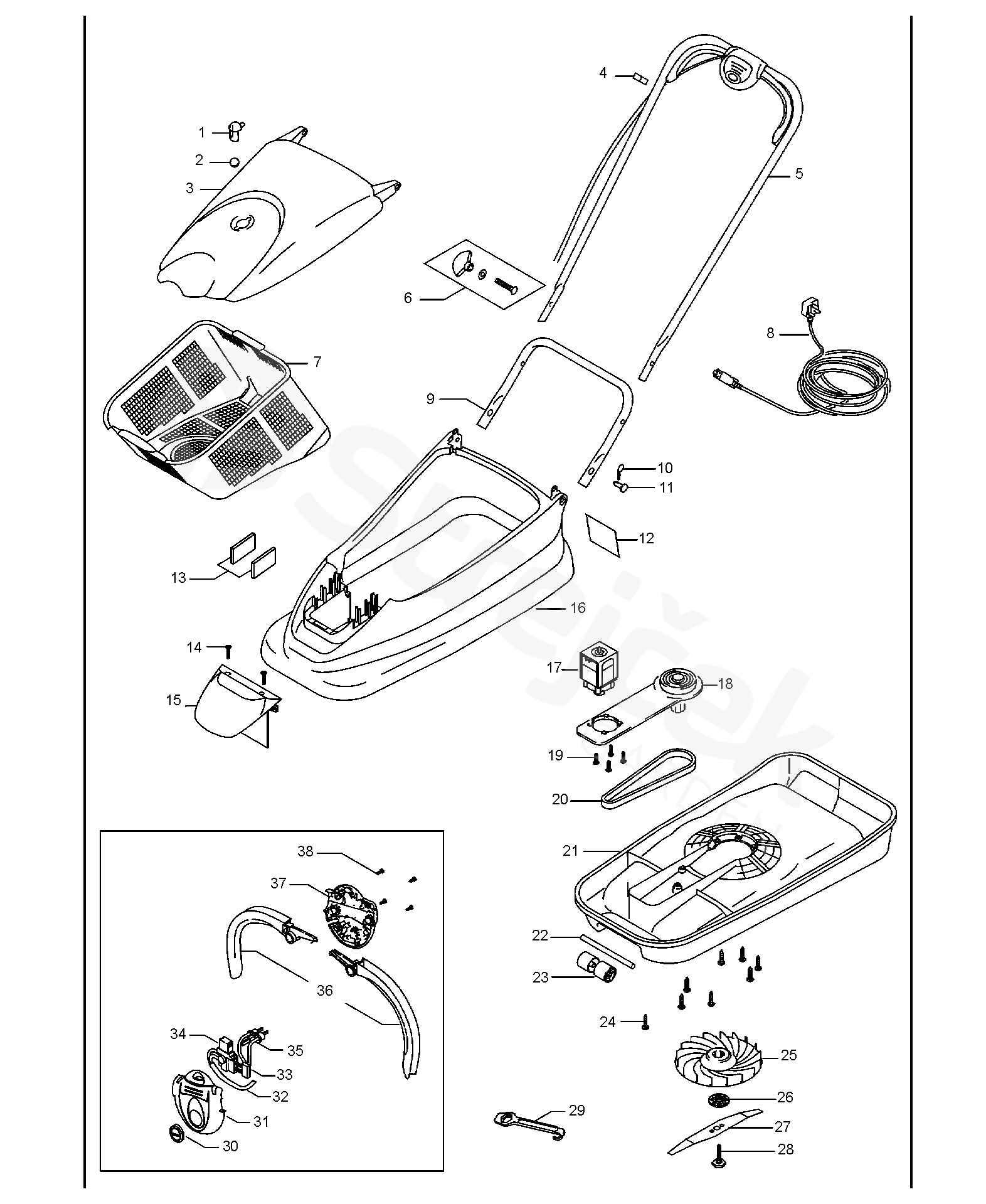

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO COMPACT 330, 966848401, 2008-03
1 INDICATOR 512771100
2 BALL
(Yellow) 		514927700
3 LID 510727100
4 CLAMP 513857400
5 HANDLE 512812100
6 WING KNOB 511956300
7 GRASSBOX 510723200
8 ELECTRIC CORD 964637101
9 HANDLE 512735300
10 CLIP 514042300
11 PIVOT PIN 514009203
12 LABEL WARNING 513858700
13 FILTER 513833900
14 SCREW 514911700
15 COVER 510692200
16 CASING 510734300
17 MOTOR KIT 511789972
18 DRIVE ASSY 510806100
19 SCREW 513119100
20 BELT 513050300
21 HOOD 510747100
22 SHAFT 514961100
23 ROLLER 513942400
24 SCREW 510759000
25 IMPELLER 511722705
26 WASHER 513811090
27 MOWER BLADE 511835790
28 BLADE 510777900
29 SPANNER 510778064
30 BUTTON 513103064
31 SPÍNACÍ SKŘÍŇKA Upper 511945668
32 SPARES LEAD KIT, 511943100
33 CAPACITOR 514839701
34 SWITCH 513050400
35 ASSEMBLY
UK 		505550701
36 HANDLE 513089600
37 SWITCHBOX LOWER UK INLET GREY
UK 		511945768
38 SCREW 510779600
