Spare parts > Flymo > LAWN MOWERS: ELECTRIC > GLIDEMASTER 340 GLIDEMASTER 340, 966952901, 2009-01 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE
GLIDEMASTER 340 GLIDEMASTER 340, 966952901, 2009-01

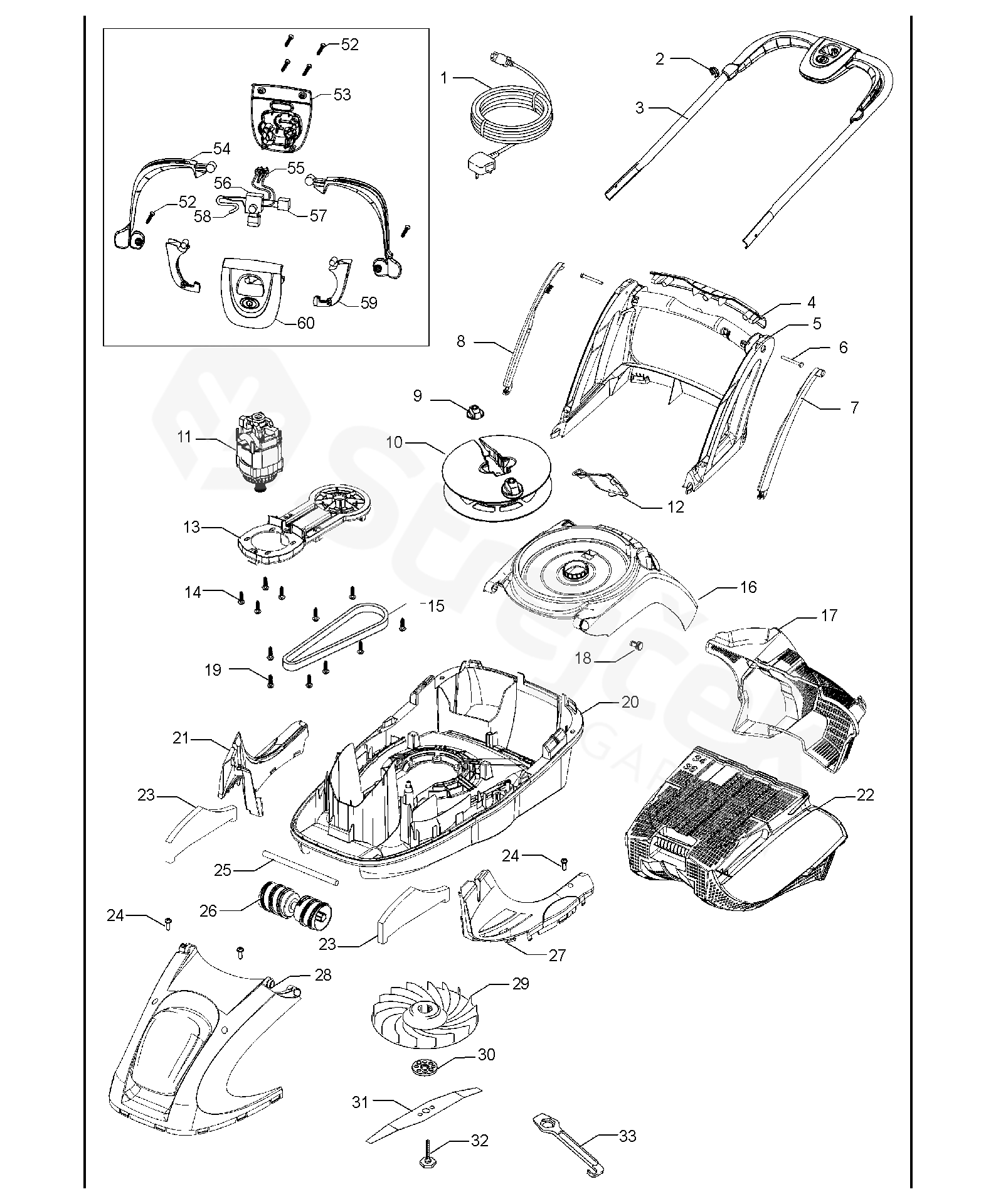

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GLIDEMASTER 340, 966952901, 2009-01
1 ELECTRIC CORD
UK 		510372590
2 CLAMP 513857400
3 HANDLE 505330001
4 INFILL 505517001
5 HANDLE 504869301
6 SCREW EHHM 725238151
7 INFILL 505517101
8 INFILL 505517301
9 KNOB 513130900
10 SPOOL 505284401
11 MOTOR KIT 511789976
12 WINDOW 504868701
13 DRIVER ASSY 505284101
14 SCREW 513119100
15 BELT 513050300
16 LID 504868101
17 SCREEN 504868901
18 PIVOT 504868601
19 SCREW 510759000
20 HOOD 504867501
21 INFILL 505521301
22 GRASSBAG 504868401
23 FILTER 505284201
24 SCREW 510722901
25 TUBE 505283701
26 ROLLER 504869701
27 INFILL 505521201
28 COVER 504868001
29 IMPELLER 511722705
30 SPACER 513811001
31 BLADE 340
340 		504869801
32 BLADE 510777900
33 SPANNER 510778064
52 SCREW 510779600
53 SWITCHBOX 522721601
54 LEVER 522721501
55 ASSEMBLY 505550701
56 SWITCH 522720901
57 CAPACITOR 513121600
58 CABLE 522721101
59 ACTUATOR 522721401
60 SWITCHBOX
WITH BUTTON 		522720801
MOWER BLADE 360
360 		521949990
