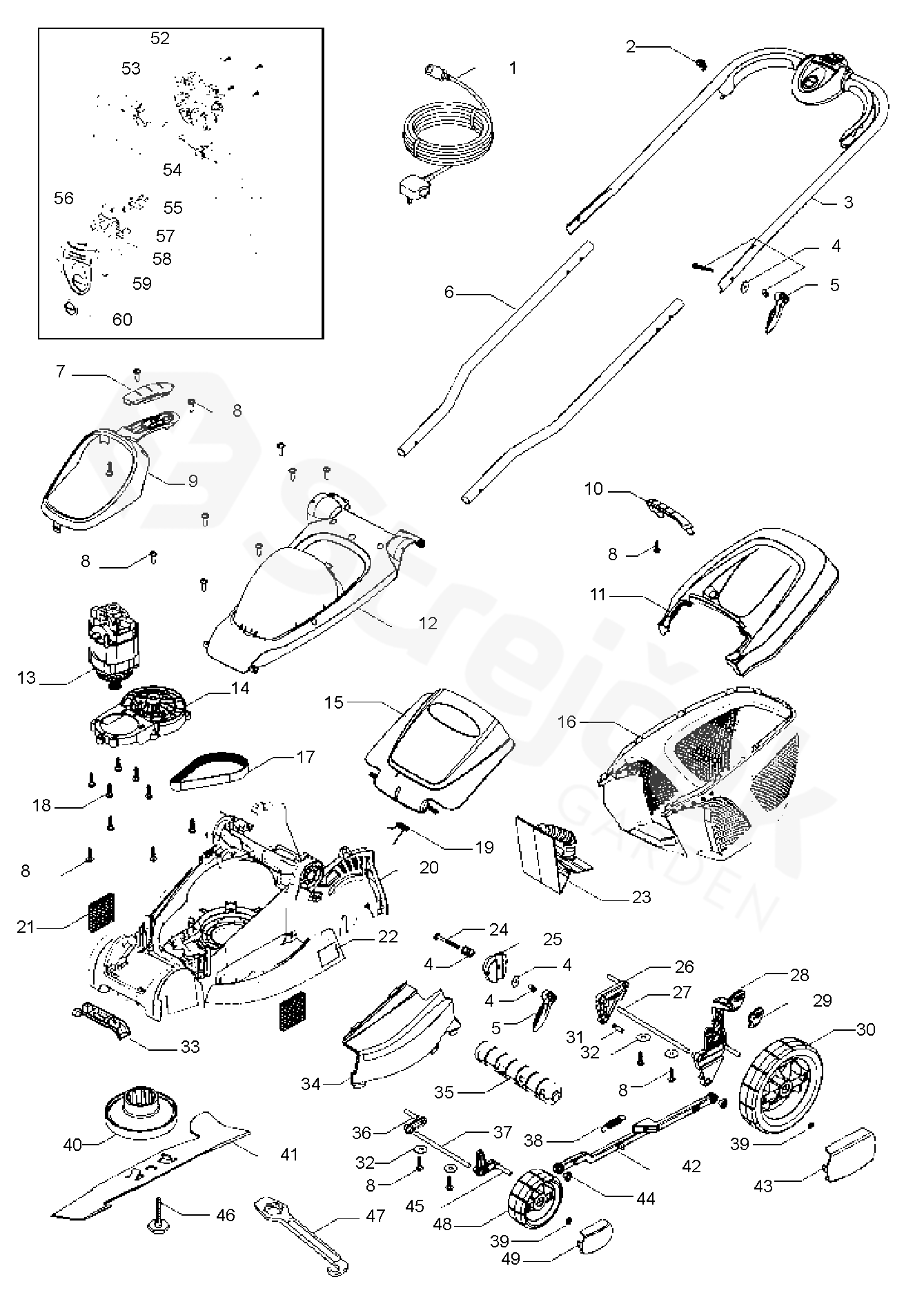

Spare parts - Partlist - MULTIMO 340 MULTIMO 340, 966953740, 966480501, 2010-06 - PRODUCT COMPLETE

Everything for your machines

MULTIMO 340 MULTIMO 340, 966953740, 966480501, 2010-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTIMO 340, 966953740, 966480501, 2010-06

1	ELECTRIC CORD UK	510372590
2	CLAMP	513857400
3	HANDLE	510805568
4	KIT FIXING	510721702
5	CAM LOCK	510739300
6	HANDLE	510805768
7	HANDLE INSERT	510791068
8	SCREW	510722901
9	HANDLE	510780900
10	HANDLE ASSY	505020801
11	LID	510781300
12	COWL	510780800
13	KIT	505209102
14	DRIVE ASSY CENTRIFUGAL RC	510763600
15	SAFETY FLAP	574258401
16	KIT	505209301
17	BELT	575502601
18	SCREW	513119100
19	SPRING	505474301
20	DECK	574258568
21	FILTER	525300701
22	LABEL	505474401
23	MULCH PLUG	510069001
24	BOLT	514885904
25	PIVOT	510803900
26	ROZPĚRKA	574382801
27	AXLE	574383201
28	KIT INC ITEM 29	505209202
29	COVER PLATE	510804664
30	REAR WHEEL	510783000
31	PIN ROLLER	510763400
32	PODLOŽKA	513918900
33	HANDLE GRIP	510781668
34	COVER PLATE	510780700
35	KIT	505209401
36	ROZPĚRKA	574382601
37	AXLE	574383101
38	PRUŽINA	510805100
39	PODLOŽKA	514968000
40	BLADE HOLDER	510782600
41	MOWER BLADE	521947390
42	LINK RODS	510781700
43	HUB CAP	510783100
44	PIN RETAINING SCREW	513109100
45	ROZPĚRKA	574382701
46	BLADE	510777900
47	SPANNER	510778064
48	WHEEL	510782700
49	HUB CAP	510782800
52	SCREW	510779600
53	SWITCHBOX LOWER UK INLET GREY UK	511945768
54	HANDLE	513089600
55	ASSEMBLY UK	505550701
56	SWITCH	522720901
57	CAPACITOR	513121600
58	LEAD ASSEMBLY SWITCHBOX	513121900
59	SPÍNACÍ SKŘÍŇKA Upper	511945668
60	BUTTON	513103064
