Spare parts > Flymo > LAWN MOWERS: ELECTRIC > MULTIMO 360 XC MULTIMO 360 XC, 966959101, 966480901, 966959140, 966959142, 966959144, 2012-09 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

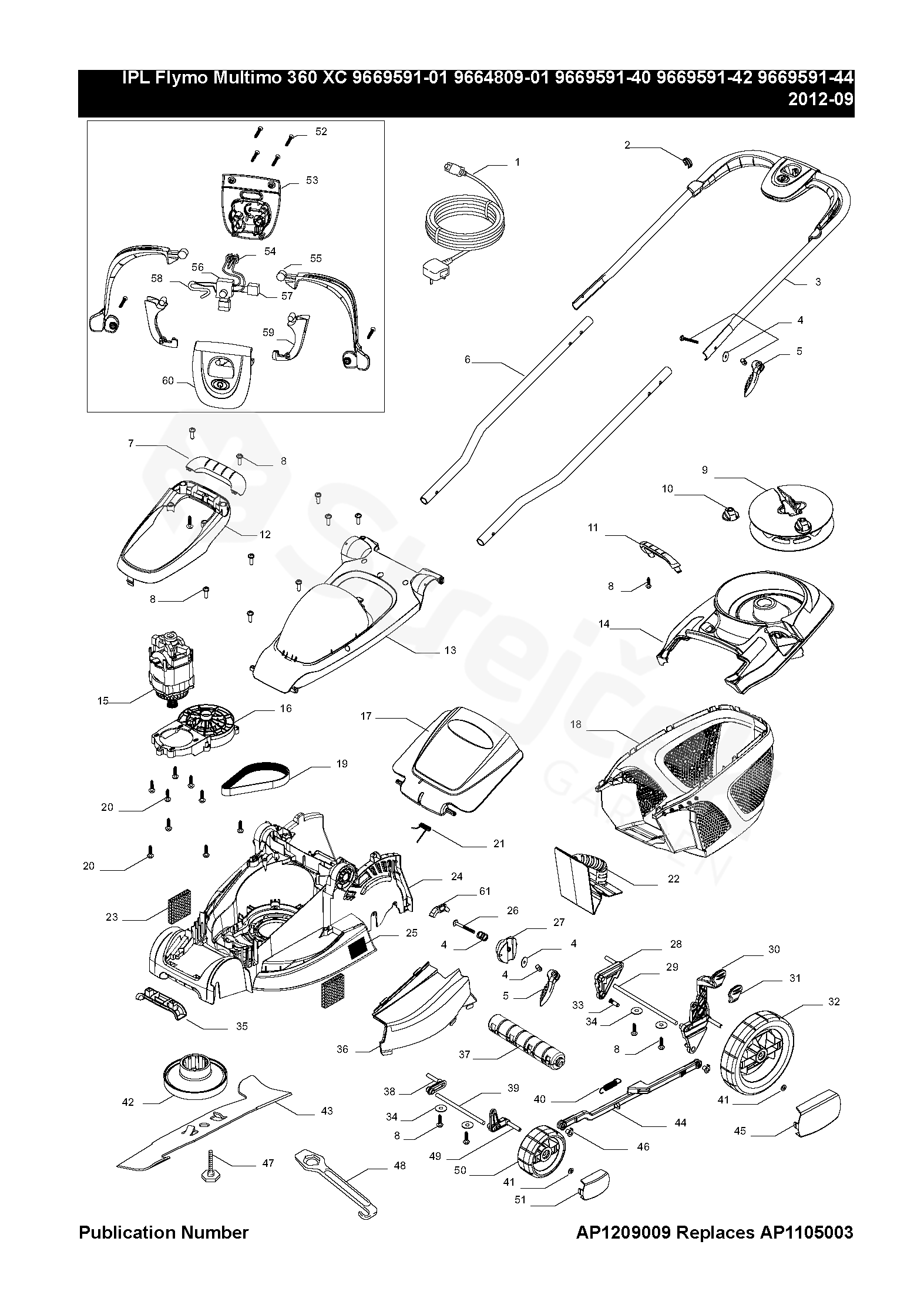

MULTIMO 360 XC MULTIMO 360 XC, 966959101, 966480901, 966959140, 966959142, 966959144, 2012-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTIMO 360 XC, 966959101, 966480901, 966959140, 966959142, 966959144, 2012-09
1 ELECTRIC CORD
UK 		510372590
2 CLAMP 513857400
3 HANDLE UPPER 576842201
4 KIT FIXING 510721702
5 CAM LOCK 510739300
6 HANDLE 510805768
7 HANDLE INSERT 510790968
8 SCREW 510722901
9 SPOOL 512830201
10 KNOB 513130900
11 HANDLE ASSY 505020801
12 HANDLE 510781000
13 COWL 510780800
14 LID 510781200
15 MOTOR 579146001
16 DRIVER ASSY 579657401
17 FLAP 510781100
18 KIT 505209301
19 BELT, 513120800
20 SCREW 513119100
21 SPRING 505474301
22 MULCH PLUG 510801100
23 FILTER 510782500
24 DECK 510780600
25 LABEL 505474401
26 BOLT 514885904
27 PIVOT 510803900
28 SPACER 510782000
29 REAR AXLE 510783400
30 KIT
INC ITEM 31 		505209201
31 COVER PLATE 510804664
32 REAR WHEEL 510783000
33 PIN ROLLER 510763400
34 PODLOŽKA 513918900
35 HANDLE GRIP 510781668
36 COVER PLATE 510780700
37 KIT 505209401
38 SPACER 510781800
39 FRONT AXLE 510783300
40 PRUŽINA 510805100
41 PODLOŽKA 514968000
42 BLADE HOLDER 510782600
43 MOWER BLADE 505492090
44 LINK RODS 510781700
45 HUB CAP 510783100
46 PIN RETAINING SCREW 513109100
47 BLADE 510777900
48 SPANNER 510778064
49 SPACER 510781900
50 WHEEL 510782700
51 HUB CAP 510782800
52 SCREW 510779600
53 SWITCHBOX 522721601
54 ASSEMBLY 505550701
55 LEVER 522721501
56 SWITCH 522720901
57 CAPACITOR 513121600
58 CABLE 522721101
59 ACTUATOR 522721401
60 SWITCHBOX
WITH BUTTON 		522720801
61 BLOCK 577728168
