Spare parts > Flymo > LAWN MOWERS: ELECTRIC > VISION COMPACT 350 VISION COMPACT 350, 9633527-01, 2007-02 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

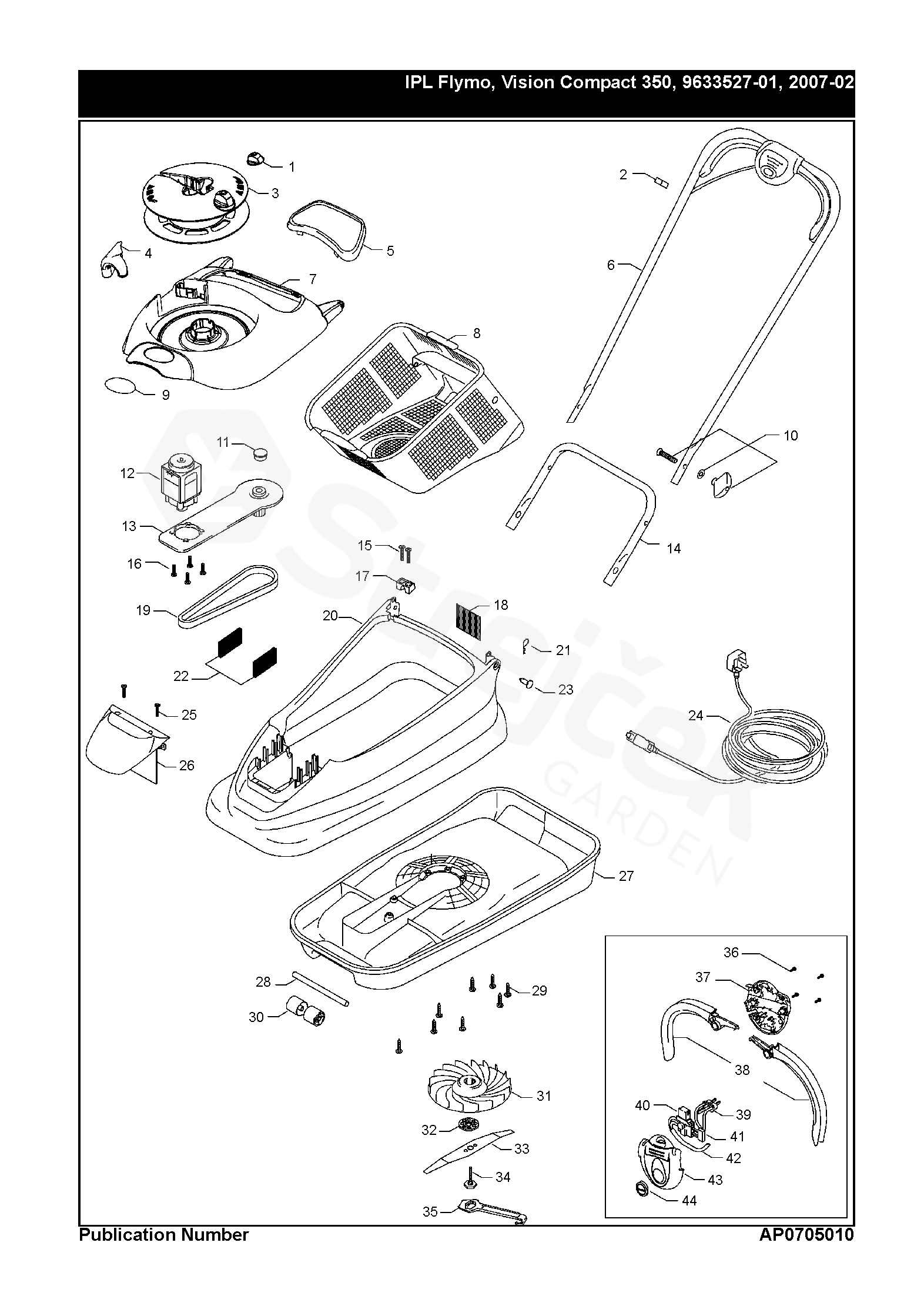

VISION COMPACT 350 VISION COMPACT 350, 9633527-01, 2007-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VISION COMPACT 350, 9633527-01, 2007-02
1 KNOB 513130900
2 CLAMP 513857400
3 SPOOL 510804500
4 CABLE GUIDE 512822300
5 VIEWER 511944000
6 HANDLE 512812100
7 LID 512822900
8 DEFLECTOR ASSY 510723700
9 BADGE 510740601
10 WING KNOB 511956300
11 COVER 514965500
12 MOTOR KIT 511789964
13 DRIVE ASSY VC330/350/380 510765700
14 HANDLE 512735300
16 SCREW 513119100
18 LABEL WARNING 513858700
19 BELT 513050300
20 CASING 510734300
21 CLIP 514042300
22 FILTER 513833900
23 PIVOT PIN 514009203
24 EXTENSION CABLE 512725005
25 SCREW 514911700
26 COVER 510692200
27 HOOD 510747100
28 SHAFT 514961100
29 SCREW 510759000
30 ROLLER 513942400
31 IMPELLER 511722705
32 BLADE 512805500
34 BLADE 510777900
35 SPANNER 510778064
36 SCREW 513087300
37 SWITCHBOX LOWER UK INLET GREY
UK 		511945768
38 HANDLE 513089600
39 PEN
UK 		512769600
40 SWITCH 513050400
41 CAPACITOR 514839701
42 SPARES LEAD KIT, 511943100
43 SPÍNACÍ SKŘÍŇKA Upper 511945668
44 BUTTON 513103064
