Spare parts > Flymo > LAWN MOWERS: ELECTRIC > VISION COMPACT 380 VISION COMPACT 380, 966848601, 2008-03 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE
VISION COMPACT 380 VISION COMPACT 380, 966848601, 2008-03

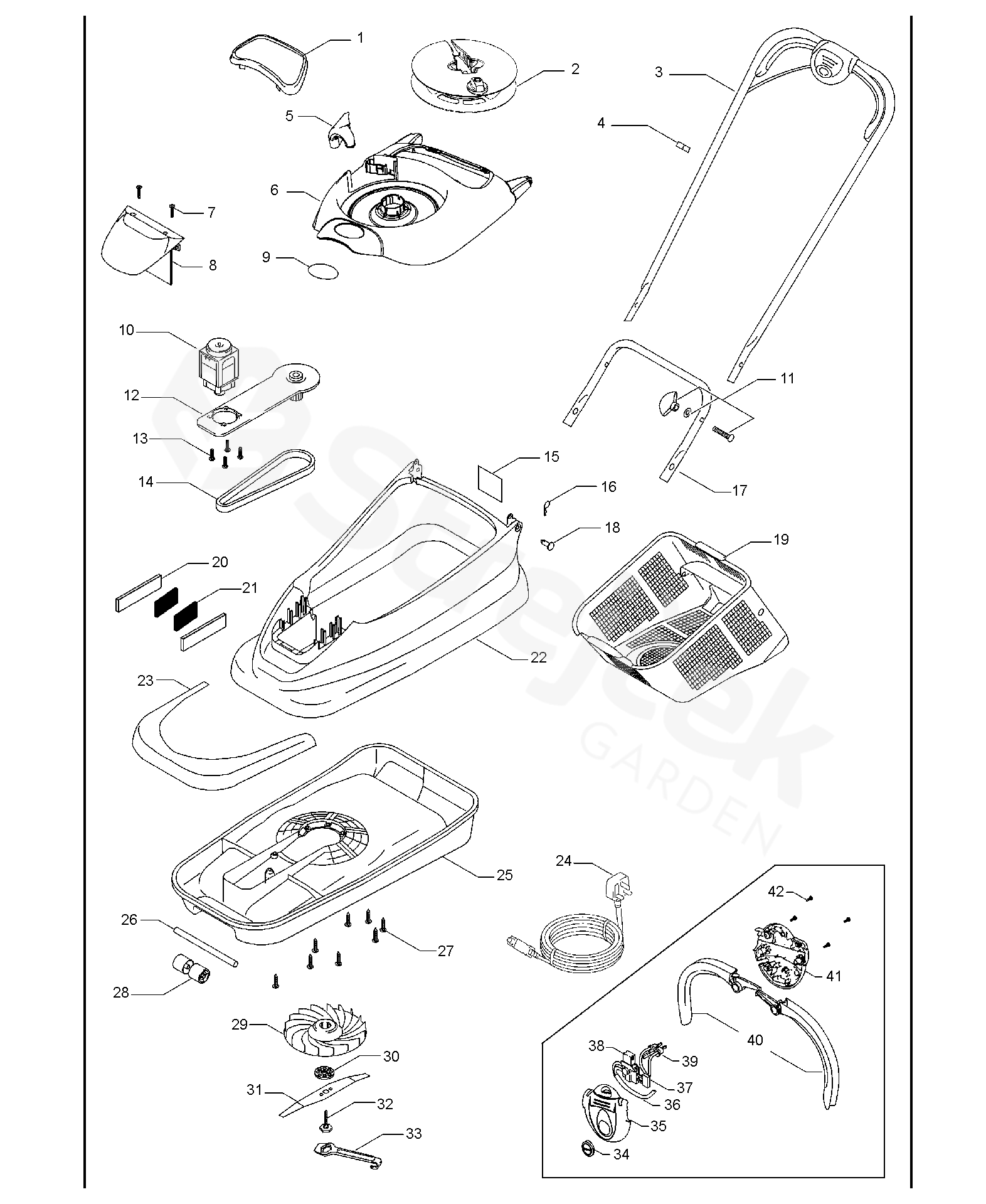

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VISION COMPACT 380, 966848601, 2008-03
1 VIEWER 511946000
2 SPOOL 510804500
3 HANDLE 512812100
4 CLAMP 513857400
5 CABLE GUIDE 512822300
6 LID 512823000
7 SCREW 514919701
8 MOTOR COVER 510692100
9 BADGE 510740601
10 MOTOR KIT 511789964
11 WING KNOB 511956300
12 DRIVE ASSY 510806100
13 SCREW 513119100
14 BELT 513050300
15 LABEL WARNING 513858700
16 CLIP 514042300
17 HANDLE 512735300
18 PIVOT PIN 514009203
19 GRASSBOX 510723300
20 FILTER 514968200
21 FILTER 514928100
22 CASING 511911100
23 PROTECTION 510676400
24 ELECTRIC CORD
UK 		964637101
25 HOOD 510759500
26 SHAFT 514961100
27 SCREW 510759000
28 ROLLER 513942400
29 IMPELLER 511722705
30 WASHER 513811090
31 MOWER BLADE 511843690
32 BLADE 510777900
33 SPANNER 510778064
34 BUTTON 513103064
35 SPÍNACÍ SKŘÍŇKA Upper 511945668
36 SPARES LEAD KIT, 511943100
37 CAPACITOR 514839701
38 SWITCH 513050400
39 ASSEMBLY
UK 		505550701
40 HANDLE 513089600
41 SWITCHBOX LOWER UK INLET GREY
UK 		511945768
42 SCREW 510779600
