Spare parts - Partlist - ROLLER COMPACT 340 ROLLER COMPACT 340, 9643405-01, 9643405-62, 2007-01 - PRODUCT COMPLETE

Everything for your machines

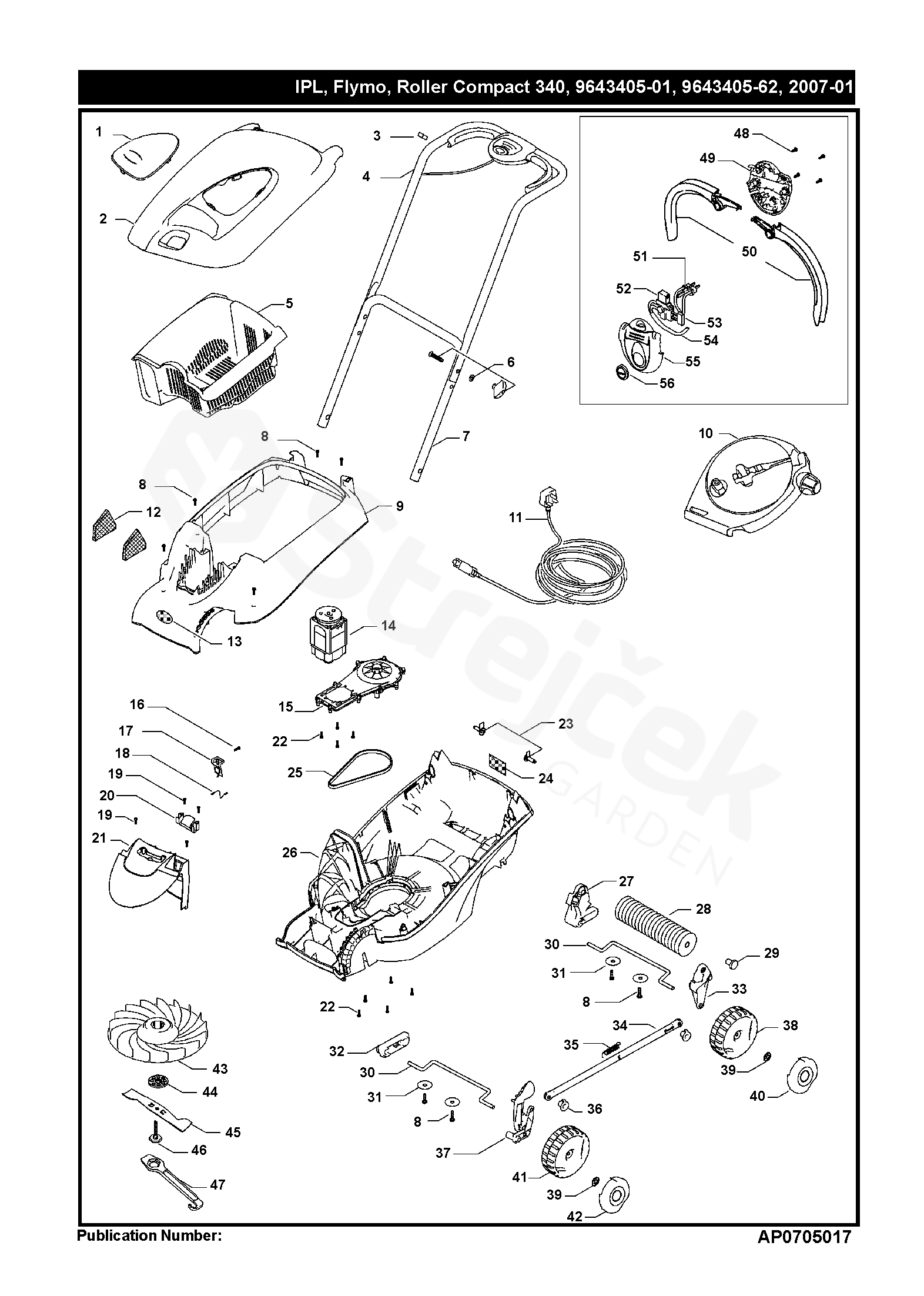

ROLLER COMPACT 340 ROLLER COMPACT 340, 9643405-01, 9643405-62, 2007-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ROLLER COMPACT 340, 9643405-01, 9643405-62, 2007-01

1	VISION WINDOW	511952000
2	LID ASSY	511961500
3	CLAMP	513857400
4	HANDLE	511830300
5	BAG	510715000
6	WING KNOB	511956300
7	HANDLE	511830400
8	SCREW	510722901
9	DECK UPPER MOULDING RC340	510748200
10	CABLE EU EU	964663062
11	EXTENSION CABLE EU EU	512757502
12	FILTER	513109200
13	BADGE	510740601
14	ENGINE	511973800
15	DRIVE ASSY CENTRIFUGAL RC	510763600
16	SCREW	513075500
17	SWITCH BRACKET ASSY	510722500
18	LEAD	510722100
19	SCREW	514975301
20	MOULDING	512787100
21	MOTOR COWL	510710100
22	SCREW	513119100
23	PIN RETAINING SCREW	513068000
24	LABEL WARNING	513858700
25	BELT,	513120800
26	DECK	510757600
27	SPACER	512820500
28	ROLLER	512823600
29	PIN ROLLER	510763400
30	AXLE	512823500
31	PODLOŽKA	513918900
32	SPACER	513108900
33	SPACER	512820300
34	LINK ROD	512818200
35	SPRING	513109000
36	PIN RETAINING SCREW	513109100
37	LEVER	512820000
38	WHEEL	512820600
39	PODLOŽKA	514968000
40	HUB CAP	512820700
41	WHEEL	512820100
42	HUB CAP	512820200
43	IMPELLER	511948100
44	SPACER UK Only	513125600
45	BLADE	511974200
46	BLADE	510777900
47	SPANNER	510778064
48	SCREW	513087300
49	SPÍNACÍ SKŘÍŇKA Lower - Euro Inlet EU	511945868
50	HANDLE	513089600
51	PIN RETAINER EU	513111700
52	SWITCH	513050400
53	CAPACITOR	514839701
54	LEAD ASSY	513071001
55	SPÍNACÍ SKŘÍŇKA Upper	511945668
56	BUTTON	513103064
