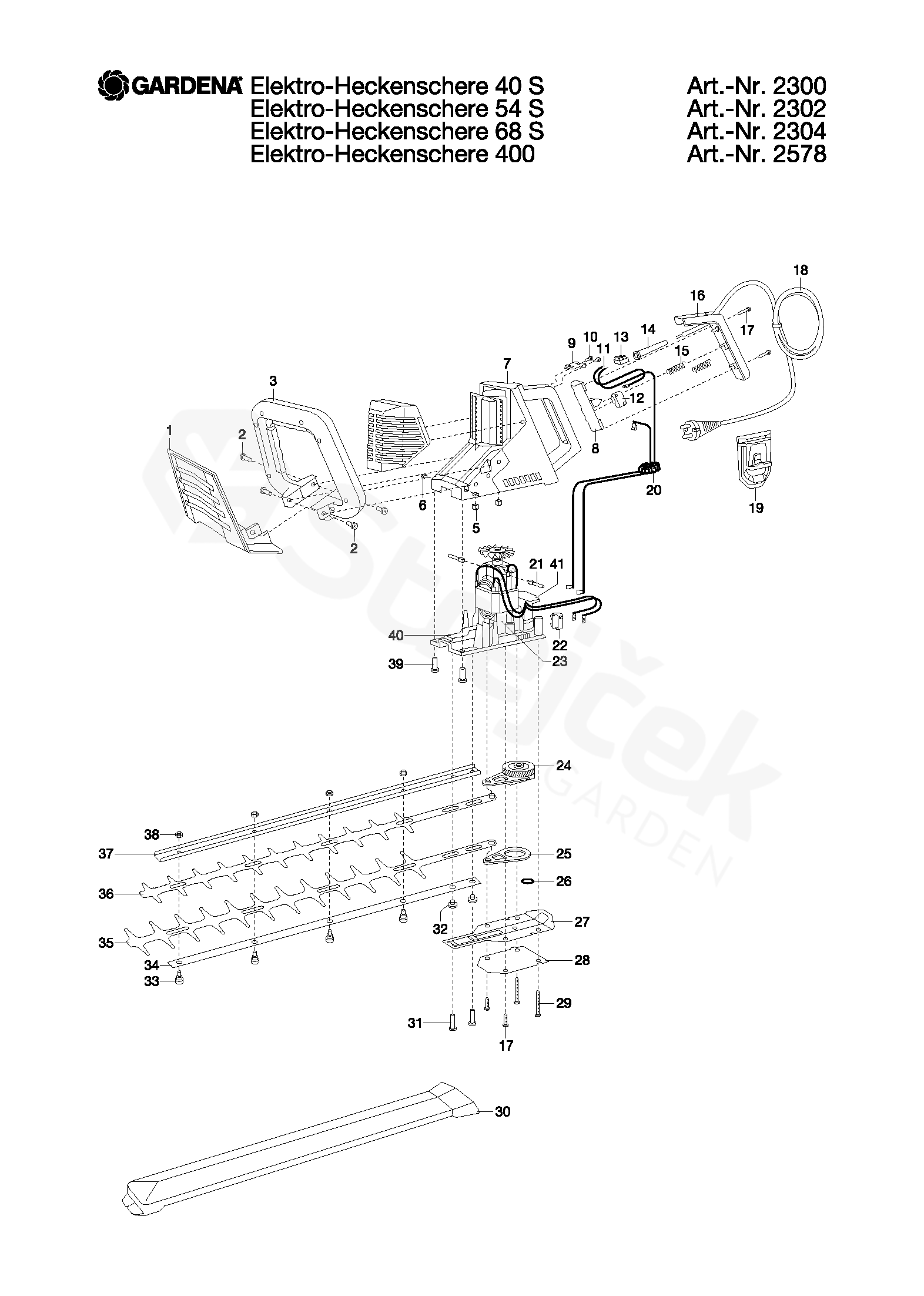

ELECTRIC HEDGE TRIMMER 40 S ELECTRIC HEDGE TRIMMER 40 S, Art. 2300-20, from 1994-1996

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ELECTRIC HEDGE TRIMMER 40 S, Art. 2300-20, from 1994-1996

1	SLIDE HAND SHIELD 2300-00.500.05 2300-00.500.05	520430201
2	SCREW 2380-00.621.18 2380-00.621.18	520434601
5	NUT M5 44000-00.102.77 44000-00.102.77	520612501
6	NUT 2300-00.600.24 2300-00.600.24	520431201
14	BENDING SAFETY SOCKET 2300-00.600.21 2300-00.600.21	520431101
15	PRESSURE SPRING 2150-00.610.12 2150-00.610.12	520427001
16	HANDLE SCREEN 2300-00.600.51 2300-00.600.51	520431401
17	SHEET METAL SCREW 4.8X25 5015-00.000.18 5015-00.000.18	520550701
18	MAINS LEAD 2300-00.600.21 2390-00.074.00	520435301
19	CABLE PULL RELIEF 2380-50.600.02 2380-50.600.02	520434701
24	ECCENTRIC GEAR 2578-00.690.00 2578-00.690.00	520458601
25	LIFTING ROD WITH BOLT 2300-00.800.01 2300-00.800.01	520431601
26	RONDELLE P8X14X0.5 2300-00.500.15 2300-00.500.15	520430401
31	SCREW 2300-00.550.00 2300-00.550.00	520430801
32	DISTANCE 2300-00.500.08 2300-00.500.08	520430301
33	SCREW 2300-00.510.04 2300-00.510.04	520430701
38	HEXAGON NUT 333-00.600.22 333-00.600.22	520299601
39	OVAL HEAD SCREW M 5X25 2380-00.600.08 2380-00.600.08	520434301
41	RELAIS CPL. 2578-00.660.00 2578-00.660.00	520458501
3338	HEDGE CLIPPER 2300-00.510.00 2300-00.510.00	520430601
12,22	SWITCH 2586-00.600.85 2586-00.600.85	520459701
