Gardena
>
Hedge Trimmers
>
TELESCOPIC HEDGE TRIMMER THS 400 TELESCOPIC HEDGE TRIMMER THS 400, Art. 2586-20, 1999 - 2001
>
PRODUCT COMPLETE
Back to
TELESCOPIC HEDGE TRIMMER THS 400
TELESCOPIC HEDGE TRIMMER THS 400, Art. 2586-20, 1999 - 2001
PRODUCT COMPLETE

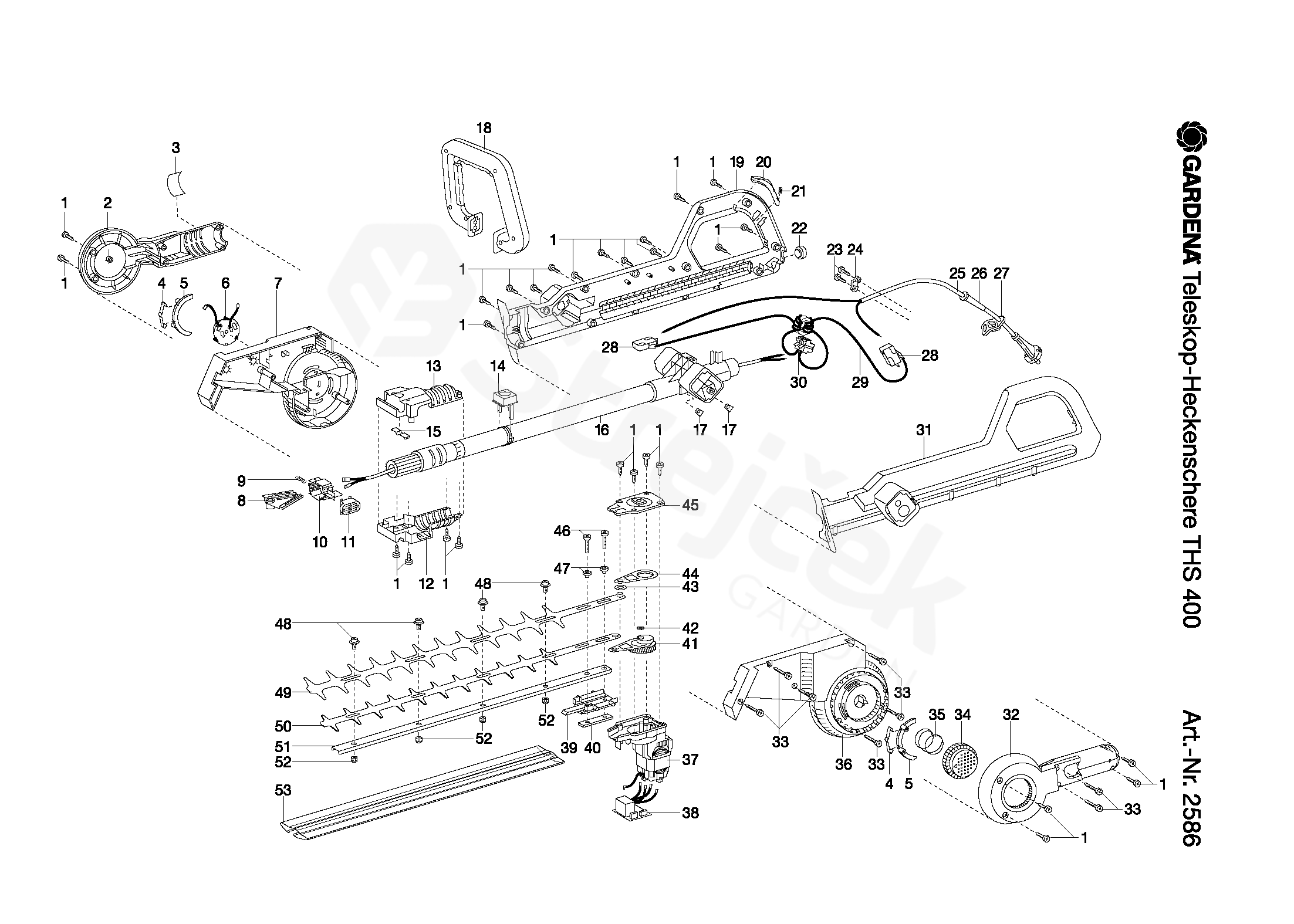

TELESCOPIC HEDGE TRIMMER THS 400
TELESCOPIC HEDGE TRIMMER THS 400, Art. 2586-20, 1999 - 2001
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TELESCOPIC HEDGE TRIMMER THS 400, Art. 2586-20, 1999 - 2001
1
SHEET METAL SCREW 4.2X19 1182-00.600.02
2546-00.600.28
520452401
5
STARTING SEGMENT 2586-00.600.43
2586-00.600.43
520459301
8
BOW COLLECTOR 2179-00.620.00
2179-00.620.00
520428801
18
GUIDE 2580-00.610.00
2580-00.610.00
520459101
26
BENDING SAFETY SOCKET 2300-00.600.21
2300-00.600.21
520431101
28
SWITCH 2586-00.600.85
2586-00.600.85
520459701
33
SHEET METAL SCREW 4.2X38 1182-00.600.02
1182-00.600.02
520341501
34
BUTTON 2179-00.800.66
2179-00.800.66
520429001
35
PRESSURE SPRING 2179-00.600.65
2179-00.600.65
520428401
42
RONDELLE P8X14X0.5 2300-00.500.15
2300-00.500.15
520430401
46
OVAL HEAD SCREW 2586-00.600.49
2586-00.600.49
520459601
48
SCREW 2586-00.610.03
2586-00.610.03
520459901
52
HEXAGON NUT 333-00.600.22
333-00.600.22
520299601
53
BLADE PROTECTION 2578-00.600.02
2578-00.600.02
520458301
4853
HEDGE CLIPPER 2586-00.610.00
2586-00.610.00
520459801
RELAIS CPL. 2586-00.635.00, not shown in image
2586-00.635.00, not shown in image
520460201
2,32
LINK 2586-00.700.86
2586-00.700.86
520460801
