Spare parts
Everything for your machines
Spare parts
>
Gardena
>
Hedge Trimmers
>
ELECTRIC HEDGE TRIMMER 540 PRO ELECTRIC HEDGE TRIMMER 540 PRO, Art. 2582-20, until 1999
>
PRODUCT COMPLETE
Back to
ELECTRIC HEDGE TRIMMER 540 PRO
ELECTRIC HEDGE TRIMMER 540 PRO, Art. 2582-20, until 1999
PRODUCT COMPLETE

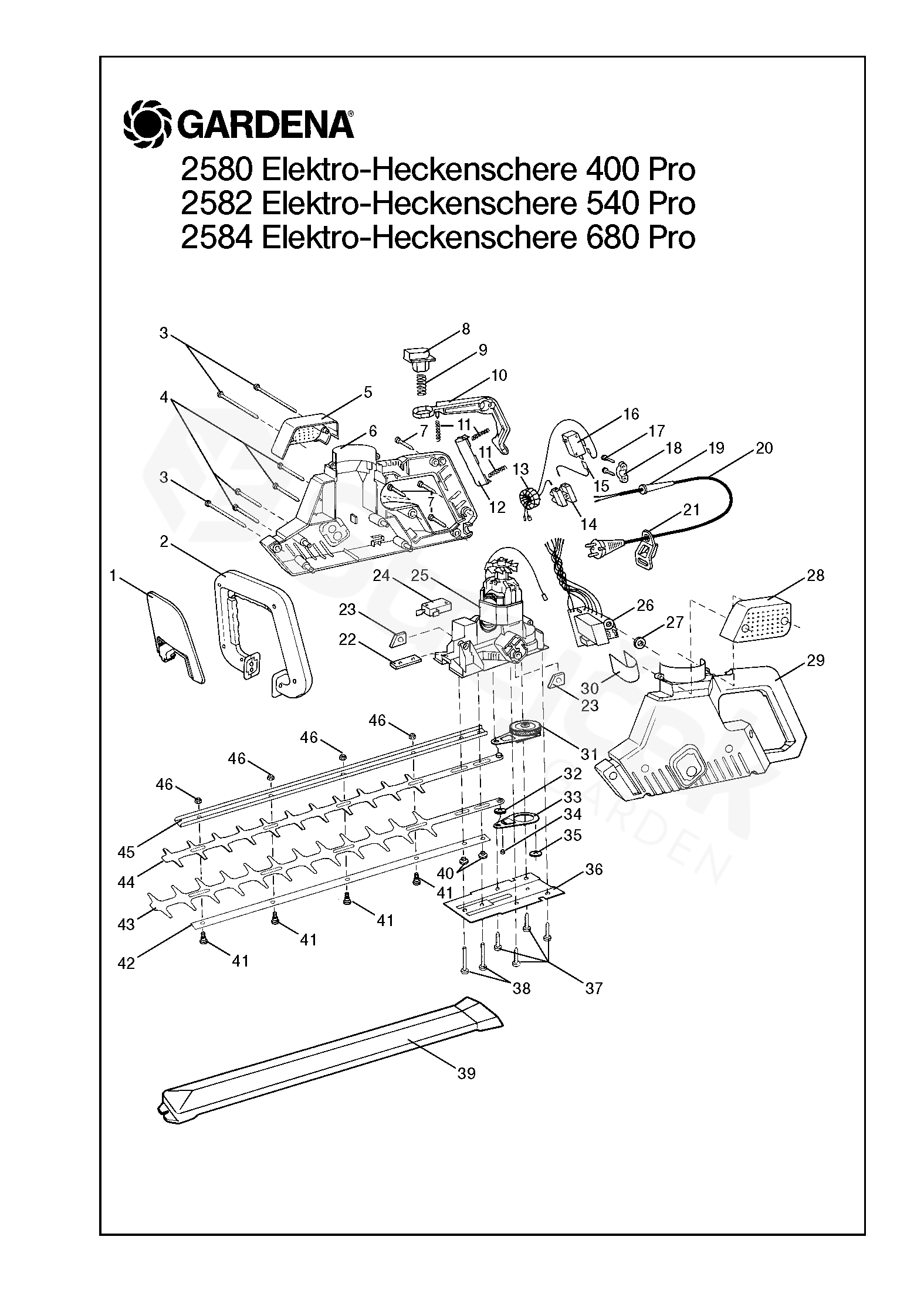

ELECTRIC HEDGE TRIMMER 540 PRO
ELECTRIC HEDGE TRIMMER 540 PRO, Art. 2582-20, until 1999
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ELECTRIC HEDGE TRIMMER 540 PRO, Art. 2582-20, until 1999
1
SLIDE HAND SHIELD 2580-00.600.16
2580-00.600.16
520458701
2
GUIDE 2580-00.610.00
2580-00.610.00
520459101
4
SHEET METAL SCREW 4.2X38 1182-00.600.02
1182-00.600.02
520341501
7
SHEET METAL SCREW 4.2X19 1182-00.600.02
2546-00.600.28
520452401
19
BENDING SAFETY SOCKET 2300-00.600.21
2300-00.600.21
520431101
31
ECCENTRIC GEAR 2578-00.690.00
2578-00.690.00
520458601
32
DISC 2580-00.600.52
2580-00.600.52
520459001
35
RONDELLE P8X14X0.5 2300-00.500.15
2300-00.500.15
520430401
37
SHEET METAL SCREW 4.8X19 2380-00.600.14
2380-00.600.14
520434401
38
SCREW 2300-00.550.00
2300-00.550.00
520430801
40
DISTANCE 2300-00.500.08
2300-00.500.08
520430301
41
SCREW 2300-00.510.04
2300-00.510.04
520430701
46
HEXAGON NUT 333-00.600.22
333-00.600.22
520299601
4146
HEDGE CLIPPER 2302-00.510.00
2302-00.510.00
520432001
GEAR 2580-00.900.01, not shown in image
2580-00.900.01, not shown in image
520459201
16,24
SWITCH 2586-00.600.85
2586-00.600.85
520459701
33,34
LIFTING ROD WITH BOLT 2300-00.800.01
2300-00.800.01
520431601
