Spare parts > Gardena > LAWN MOWERS > HATTRICK-MULCHCUT HB 40 HATTRICK-MULCHCUT HB 40, Art. 4010-20, until 2005 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

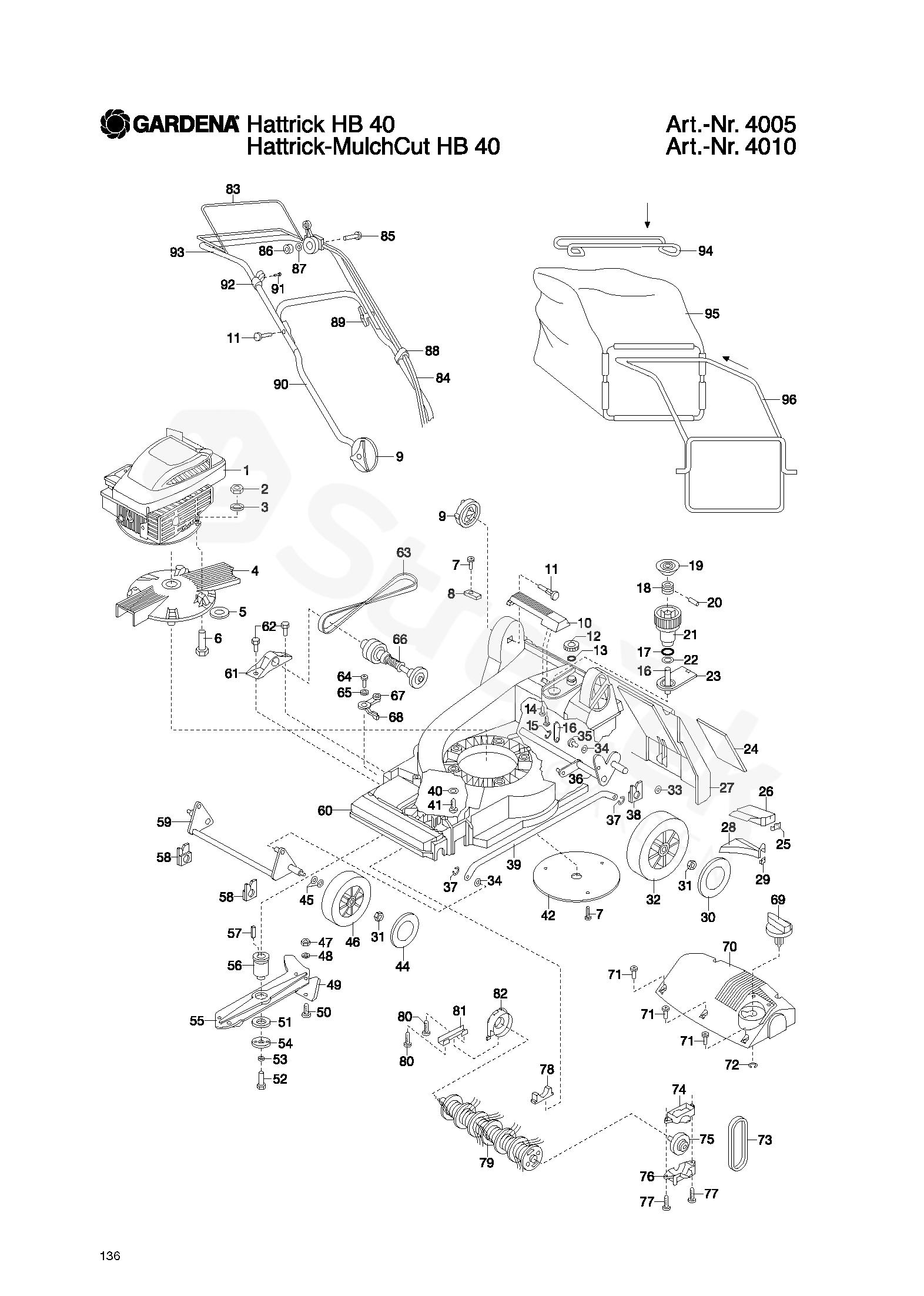

HATTRICK-MULCHCUT HB 40 HATTRICK-MULCHCUT HB 40, Art. 4010-20, until 2005
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HATTRICK-MULCHCUT HB 40, Art. 4010-20, until 2005
7 SCREW 853-00.002.16
853-00.002.16 		520321701
8 CLAMPING PART 4001-00.900.01
4001-00.900.01 		520504301
9 TENSION LEVER 4001-00.900.21
4001-00.900.21 		520505701
11 TRUSS- HEAD SCREW 78420-00.600.34
78420-00.600.34 		520624301
12 DRIVE - DRUM 4001-00.900.02
4001-00.900.02 		520504401
13 O-RING 12,1X2,7 991-00.003.02
991-00.003.02 		520337401
17 O-RING 36X2 1550-00.000.17
1550-00.000.17 		520394001
21 ADJUSTMENT BUTTON 78440-00.600.61
78440-00.600.61 		520624801
25 CLIP 4001-00.900.24
4001-00.900.24 		520506001
27 REAR COVER 4001-00.900.07
4001-00.900.07 		520504801
28 BARRIER 4001-00.900.25
4001-00.900.25 		520506101
29 CLAMP FOR BARRIER 4000-00.900.33
4000-00.900.33 		520501601
32 WHEEL 195 BACK 4001-00.900.08
4001-00.900.08 		520504901
36 REAR AXLE 4001-00.900.10
4001-00.900.10 		520505001
37 LOCKWASHER 4038-00.600.67
4038-00.600.67 		520530301
46 WHEEL 165 FRONT 4001-00.900.15
4001-00.900.15 		520505301
47 HEXAGON NUT 2610-00.008.13
2610-00.008.13 		520466101
48 WASHER 2440-00.900.10
2440-00.900.10 		520444501
50 OVAL HEAD SCREW 78600-00.600.43
78600-00.600.43 		520626001
51 FRICTION DISC 78540-00.600.02
78540-00.600.02 		520625401
52 SCREW 4005-00.900.07
4005-00.900.07 		520510901
53 WASHER 78540-00.600.36
78540-00.600.36 		520625701
54 WASHER 78540-00.600.30
78540-00.600.30 		520625501
56 BLADE FLANGE 4005-00.900.08
4005-00.900.08 		520511001
58 BEARING 78600-00.600.12
78600-00.600.12 		520625901
63 V-BELT. LONG 4001-00.900.26
4001-00.900.26 		520506201
64 SHEET METAL SCREW 4.8X19 2380-00.600.14
2380-00.600.14 		520434401
66 PRIMARY SHAFT. CPL 4001-00.900.29
4001-00.900.29 		520506401
73 V-BELT. SHORT 4000-00.900.40
4000-00.900.40 		520502201
75 DRIVEN SHAFT. CPL. 4000-00.900.42
4000-00.900.42 		520502401
76 COVERING 4000-00.900.41
4000-00.900.41 		520502301
79 AERATOR FOR HATTRICK 40 4097-00.901.00
4097-00.901.00 		520546801
80 SCREW 853-00.002.16
853-00.002.16 		520321701
82 END SHIELD 4000-00.900.45
4000-00.900.45 		520502601
84 GAS- AND BRAKE CORD CPL. WITH LEVER 4005-00.900.15
4005-00.900.15 		520511501
86 HEXAGON NUT 312-00.600.12
312-00.600.12 		520297601
89 WING NUT 4070-00.900.34
4070-00.900.34 		520545201
91 SCREW 882-00.007.11
882-00.007.11 		520327501
96 FENDER 4001-00.900.35
4001-00.900.35 		520506901
4750 BLADE 4099-00.701.00
4099-00.701.00 		520546901
MULCHCUT-APLICATION 4009-00.900.02, not shown in image
4009-00.900.02, not shown in image 		520512801
2,31 HEXAGON NUT 2610-00.008.13
2610-00.008.13 		520466101
49,55 BLADE HOLDER 78440-00.600.75
78440-00.600.75 		520625201
55,4750 BLADE HOLDER 4009-00.900.01
4009-00.900.01 		520512701
