DUO-POMP 5000/3 SGP DUO-POMP 5000/3 SGP, Art. 1471-20,
>
PRODUCT COMPLETE
Back to
DUO-POMP 5000/3 SGP
DUO-POMP 5000/3 SGP, Art. 1471-20,
PRODUCT COMPLETE
DUO-POMP 5000/3 SGP
DUO-POMP 5000/3 SGP, Art. 1471-20,

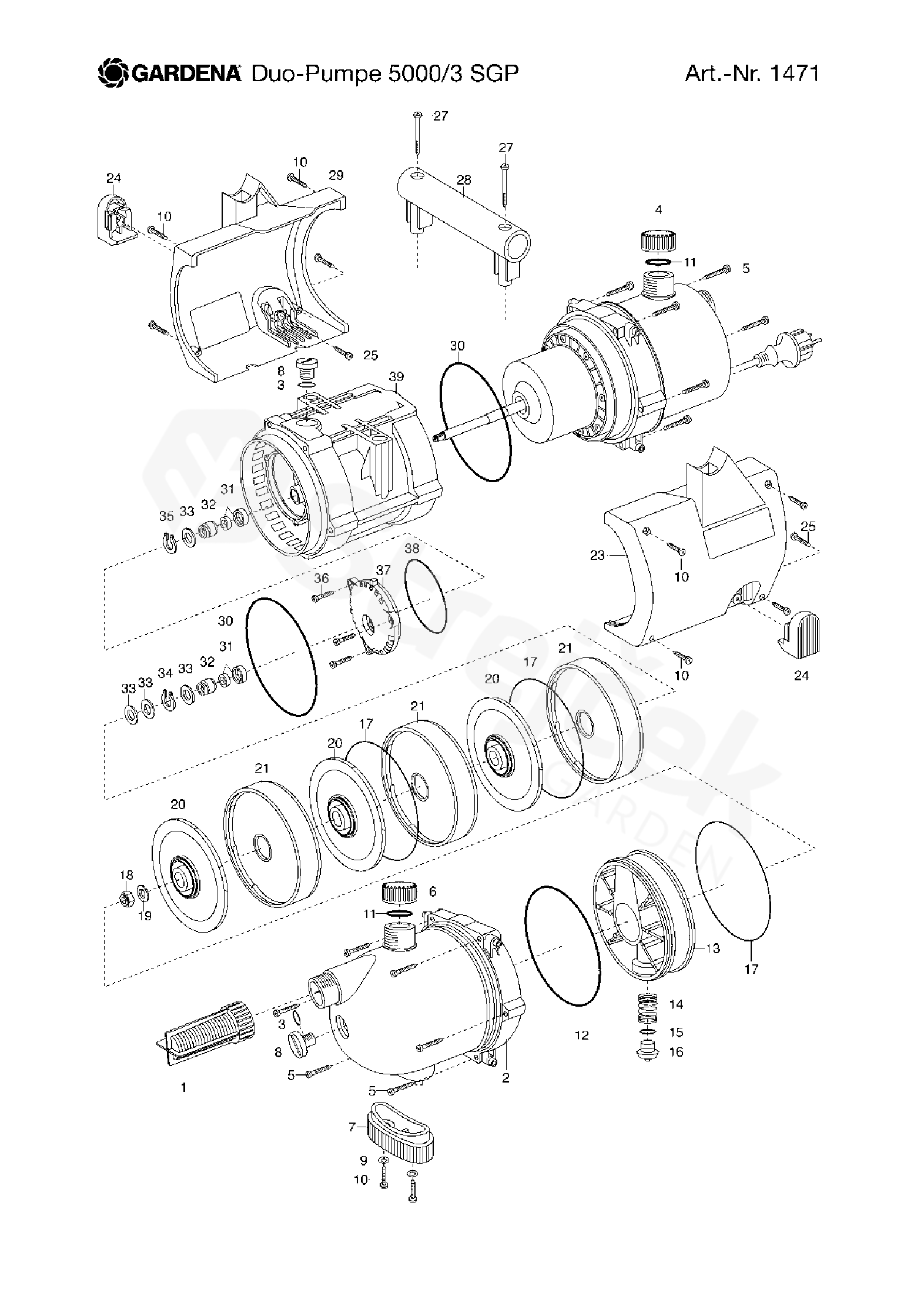

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
DUO-POMP 5000/3 SGP, Art. 1471-20,
1
FILTER 1414-00.000.01
1414-00.000.01
520357501
2
PUMP CAP 1471-00.900.01
1471-00.900.01
520375401
3
O-RING 1426-00.900.01
1426-00.900.01
520359801
4
SEALING CAP 1" 7860-00.600.01
7860-00.600.01
520569901
6
SCREW 1422-00.900.03
1422-00.900.03
520358201
8
LOCKING SCREW 1471-00.900.04
1471-00.900.04
520375501
11
O-RING 21.82X3.53 1481-00.900.25
1481-00.900.25
520379001
13
SUCTION VALVE 1485-00.900.08
1485-00.900.08
520381801
17
O-RING 1469-00.900.18
1469-00.900.18
520374801
18
CAP NUT 1469-00.900.22
1469-00.900.22
520375201
19
DISC 1469-00.900.21
1469-00.900.21
520375101
20
TURBINE 1485-00.900.07
1485-00.900.07
520381701
21
SEAT FOR TURBINE 1469-00.900.19
1469-00.900.19
520374901
27
SCREW 1469-00.900.12
1469-00.900.12
520374501
31
OPPOSITE RING. CPL. 1426-00.900.11
1426-00.900.11
520360701
32
SEAL 1426-00.900.10
1426-00.900.10
520360601
