Spare parts
>
Gardena
>
TRIMMERS/EDGERS
>
TURBOTRIMMER CLASSICCUT PLUS TURBOTRIMMER CLASSICCUT PLUS, Art. 2403-20, until 2008
>
PRODUCT COMPLETE
Back to
TURBOTRIMMER CLASSICCUT PLUS
TURBOTRIMMER CLASSICCUT PLUS, Art. 2403-20, until 2008
PRODUCT COMPLETE

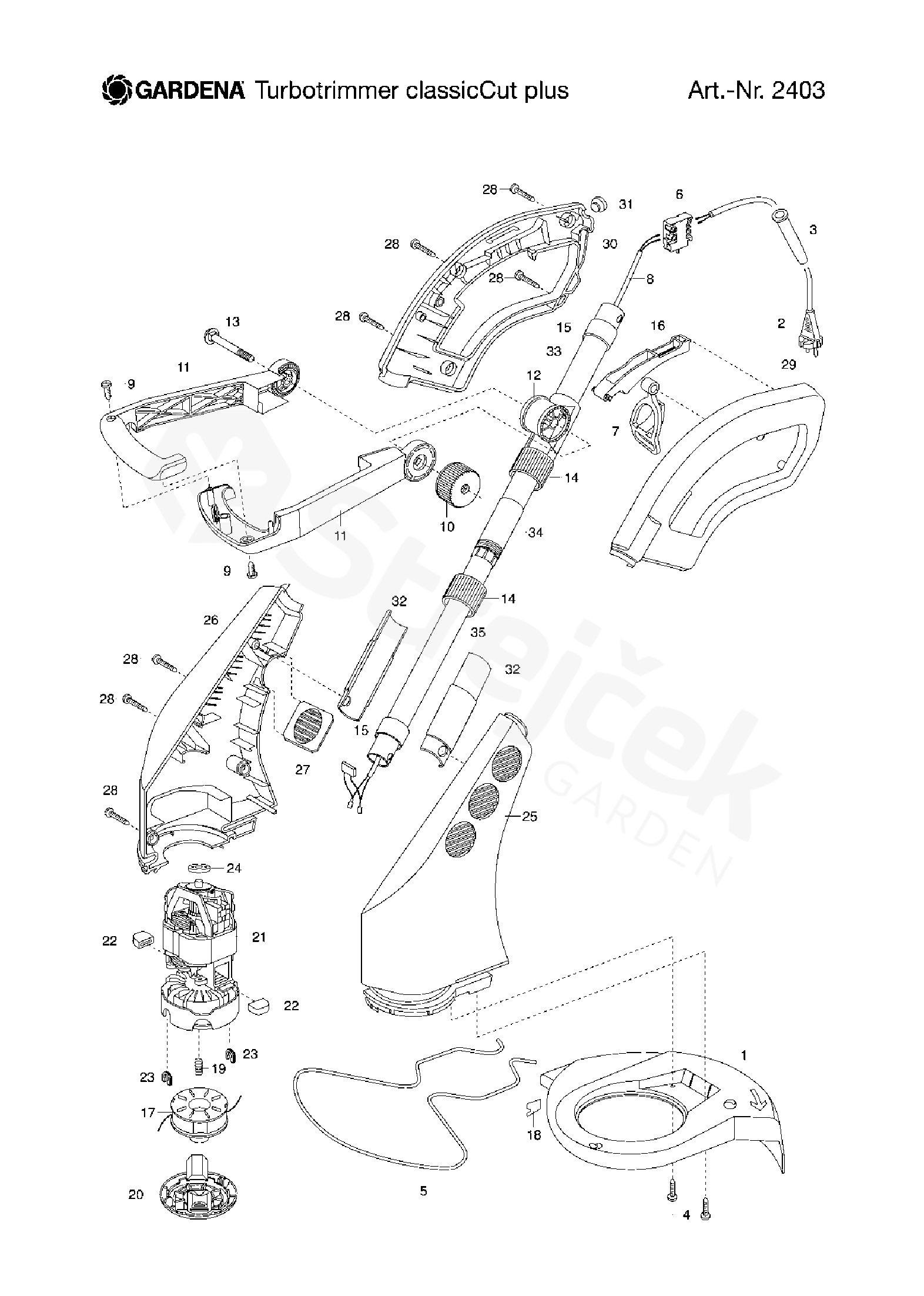

TURBOTRIMMER CLASSICCUT PLUS
TURBOTRIMMER CLASSICCUT PLUS, Art. 2403-20, until 2008
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBOTRIMMER CLASSICCUT PLUS, Art. 2403-20, until 2008
1
COVERING 2402-00.710.00
2402-00.710.00
520437801
2
MAINS LEAD 2300-00.600.21
2390-00.074.00
520435301
3
BENDING SAFETY SOCKET 2300-00.600.21
2300-00.600.21
520431101
4
SCREW 2110-00.600.40
2110-00.600.40
520426501
5
PLANT GUARD 2402-00.600.49
2402-00.600.49
520437201
6
SWITCH 2402-00.600.52
2402-00.600.52
520437401
9
SHEET METAL SCREW 4.2X19 1182-00.600.02
2546-00.600.28
520452401
11
EXTENSION HANDLE LARGE 2404-00.610.01
2404-00.610.01
520439001
14
LOCK NUT 2404-00.610.11
2404-00.610.11
520439101
15
HUB CAP 2404-00.600.88
2404-00.600.88
520438901
17
DOUBLE REEL. CPL. 2403-00.610.00
2403-00.610.00
520438201
18
BLADE 2555-00.600.23
2555-00.600.23
520453601
19
PRESSURE SPRING 2555-00.600.73
2555-00.600.73
520454301
20
COVER 2403-00.600.06
2403-00.600.06
520438101
22
RUBBER BEARING. BELOW 2555-00.600.33
2555-00.600.33
520453801
24
RUBBER BEARING. UP 2402-00.600.51
2402-00.600.51
520437301
28
SHEET METAL SCREW 4.2X19 1182-00.600.02
2546-00.600.28
520452401
19,21,23
MOTOR ASSY 2403-00.799.00
2403-00.799.00
520438301
