Gardena
>
TRIMMERS/EDGERS
>
EDGING ACCU SHEARS ACCU 60 EDGING ACCU SHEARS ACCU 60, Art. 8801, until 2010
>
PRODUCT COMPLETE
Back to
EDGING ACCU SHEARS ACCU 60
EDGING ACCU SHEARS ACCU 60, Art. 8801, until 2010
PRODUCT COMPLETE
EDGING ACCU SHEARS ACCU 60
EDGING ACCU SHEARS ACCU 60, Art. 8801, until 2010

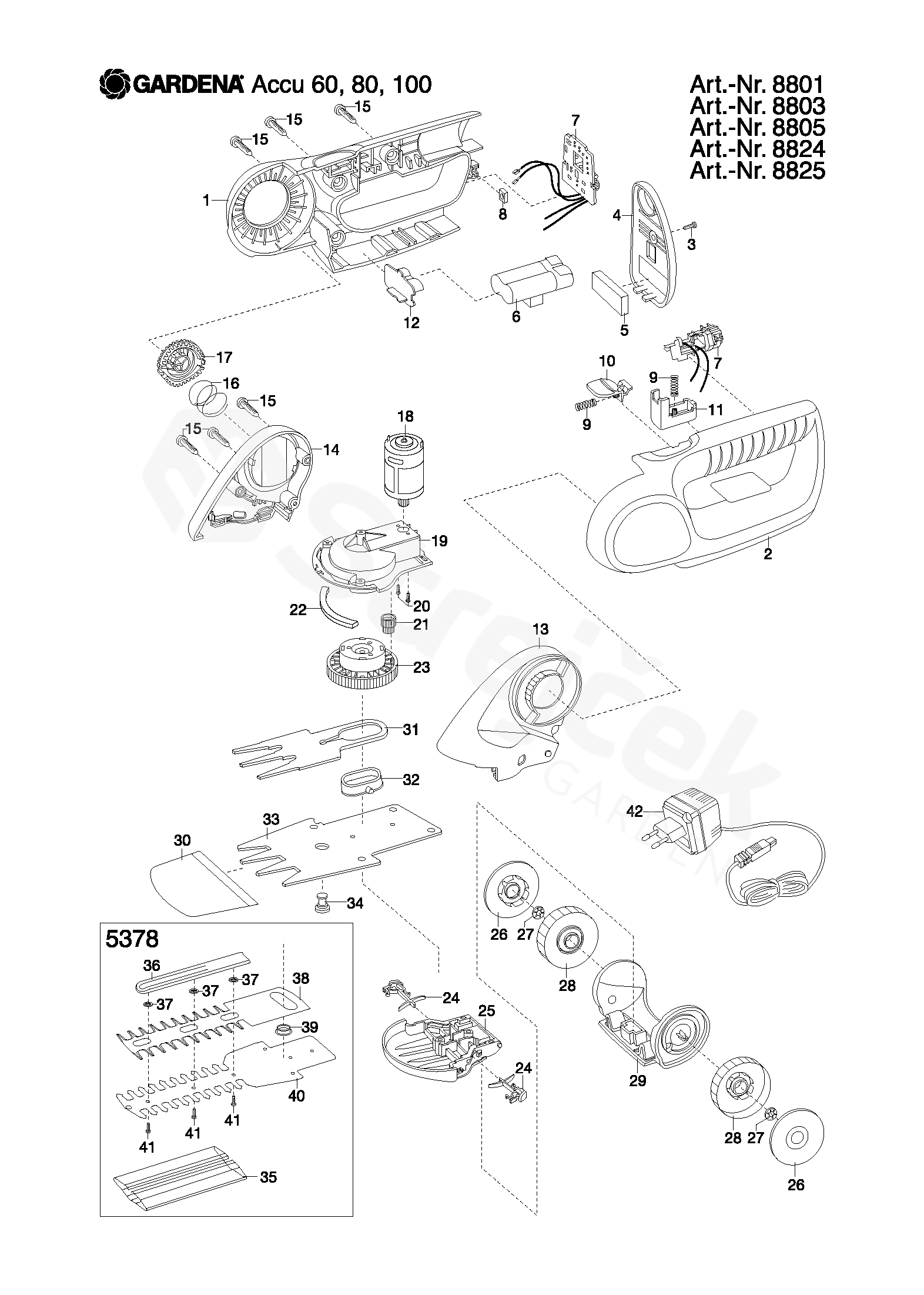

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
EDGING ACCU SHEARS ACCU 60, Art. 8801, until 2010
3
SCREW 2500-00.600.48
2500-00.600.48
520450101
6
ACCU 1. CPL. 8800-00.640.00
8800-00.640.00
520607101
7
CABLE. CPL. ACCU 100 8805-00.730.00
8805-00.730.00
520609601
8
NUT 2500-00.600.41
2500-00.600.41
520449901
15
SHEET METAL SCREW 4.2X19 1182-00.600.02
2546-00.600.28
520452401
16
PRESSURE SPRING 2179-00.600.65
2179-00.600.65
520428401
20
SCREW 2500-00.600.46
2500-00.600.46
520450001
21
GEAR WHEEL 2500-00.600.32
2500-00.600.32
520449701
22
STRIP
2320-00.000.29
520432501
23
WRAP-SPRING CLUTCH - EXCENTER
8800-00.610.00
520606901
26
WHEEL COVER 8804-00.600.26
8804-00.600.26
520608401
27
LOCKWASHER 2165-00.600.27
2165-00.600.27
520427501
30
BLADE PROTECTION
2345-00.610.01
520433501
42
PLUG 8805-00.650.00
8805-00.650.00
520609401
BATTERY CHARGER 8805-28.650.00, not shown in image
8805-28.650.00, not shown in image
510411501
24,25
RUNNER / SKID 8804-00.720.00
8804-00.720.00
520608901
26,27,28,29
AXLE. CPL. 8804-00.710.00
8804-00.710.00
520608801
30,31,32,33,34
BLADE 2345-00.610.00
2345-00.610.00
520433401
4,5
BATTERY COVER, CPL. 8804-00.800.46
8804-00.800.46
520609201
