Gardena
>
TRIMMERS/EDGERS
>
EDGING ACCU SHEARS ACCU 90 EDGING ACCU SHEARS ACCU 90, 8804, until 2006
>
PRODUCT COMPLETE
Back to
EDGING ACCU SHEARS ACCU 90
EDGING ACCU SHEARS ACCU 90, 8804, until 2006
PRODUCT COMPLETE
EDGING ACCU SHEARS ACCU 90
EDGING ACCU SHEARS ACCU 90, 8804, until 2006

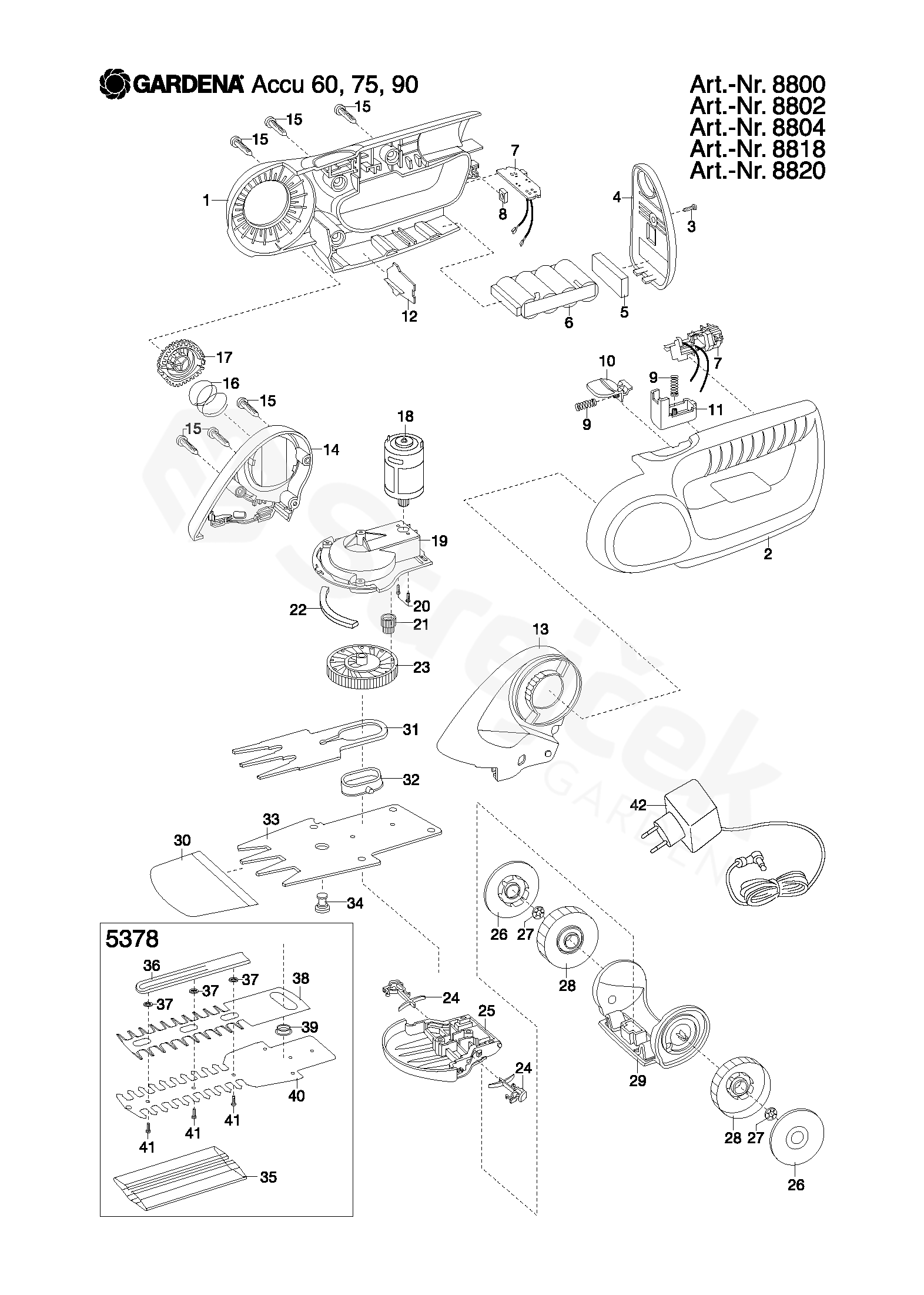

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
EDGING ACCU SHEARS ACCU 90, 8804, until 2006
3
SCREW 2500-00.600.48
2500-00.600.48
520450101
6
ACCU 90 CPL. 8804-00.630.00
8804-00.630.00
520608501
7
CABLE 8804-00.730.00
8804-00.730.00
520609001
8
NUT 2500-00.600.41
2500-00.600.41
520449901
15
SHEET METAL SCREW 4.2X19 1182-00.600.02
2546-00.600.28
520452401
16
PRESSURE SPRING 2179-00.600.65
2179-00.600.65
520428401
18
MOTOR ASSY 2510-00.610.00
2510-00.610.00
520451201
20
SCREW 2500-00.600.46
2500-00.600.46
520450001
21
GEAR WHEEL 2500-00.600.32
2500-00.600.32
520449701
22
STRIP
2320-00.000.29
520432501
23
WRAP-SPRING CLUTCH - EXCENTER
8800-00.610.00
520606901
26
WHEEL COVER 8804-00.600.26
8804-00.600.26
520608401
27
LOCKWASHER 2165-00.600.27
2165-00.600.27
520427501
30
MESSERSCHUTZ 2346-00.610.02
2346-00.610.02
523833401
42
BATTERY CHARGER 8804-00.650.00
8804-00.650.00
520608701
24,25
RUNNER / SKID 8804-00.720.00
8804-00.720.00
520608901
26,27,28,29
WHEEL SET 8893-00.630.00
8893-00.630.00
576768501
30,31,32,33,34
BLADE 2346-00.610.00
2346-00.610.00
520433801
4,5
BATTERY COVER, CPL. 8804-00.800.46
8804-00.800.46
520609201
