Spare parts - Partlist - COMFORT WALL-MOUNTED HOSE BOX 15 ROLL-UP AUTOMATIC COMFORT WALL-MOUNTED HOSE BOX 15 ROLL-UP AUTOMATIC, Art. 8022, since 2013 - PRODUCT COMPLETE

Everything for your machines

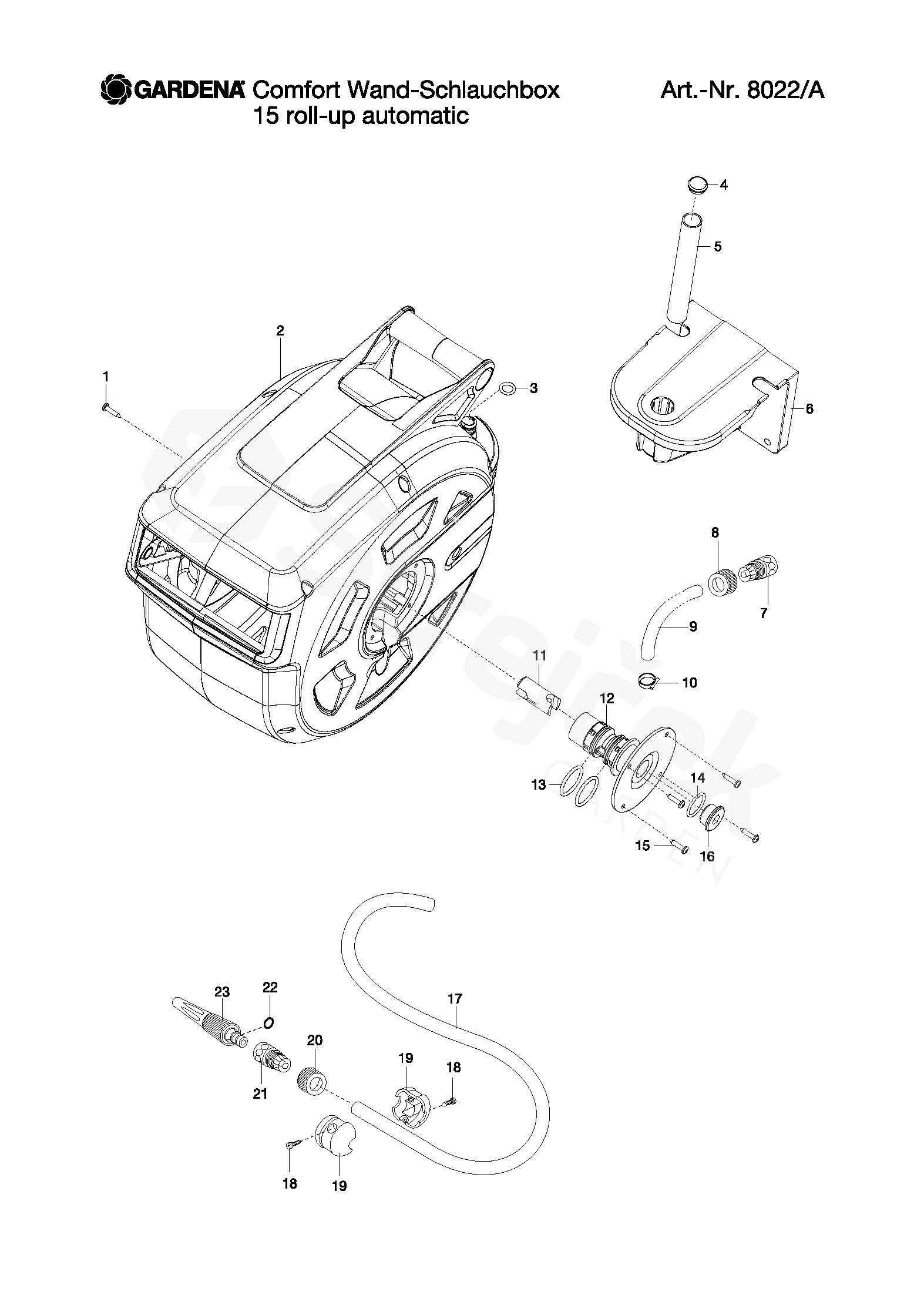

COMFORT WALL-MOUNTED HOSE BOX 15 ROLL-UP AUTOMATIC COMFORT WALL-MOUNTED HOSE BOX 15 ROLL-UP AUTOMATIC, Art. 8022, since 2013

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For COMFORT WALL-MOUNTED HOSE BOX 15 ROLL-UP AUTOMATIC, Art. 8022, since 2013

1	SCREW 8022-00.600.75 8022-00.600.75	585012001
4	PLUG 8022-00.600.42 8022-00.600.42	585010401
6	WALL BRACKET 8022-00.600.41 8022-00.600.41	585010301
10	CLIP 8022-00.600.79 8022-00.600.79	585012401
11	PRESSURE PIPE 8022-00.600.01 8022-00.600.01	581104901
12	AXE 8022-00.600.52 8022-00.600.52	585010601
13	O-RING 8022-00.600.46 8022-00.600.46	588564201
14	O-RING 20X2 1670-00.600.06 1670-00.600.06	520401401
15	SCREW 8022-00.600.76 8022-00.600.76	585012101
16	PLUG 8022-00.600.54 8022-00.600.54	585011301
18	SCREW 2648-00.600.89 2648-00.600.89	523908001
19	STOPPER 2648-00.600.62 2648-00.600.62	581368601
22	O-RING 10,5X2,7 900-00.101.06 900-00.101.06	520331701
	ACCESSORY BAG 2648-00.770.00 2648-00.770.00, not shown in image	520475701
21,20	WATER-STOP 913-00.640.00 913-00.640.00	520332301
22,23	GUN 8114-00.600.00 8114-00.600.00	524212101
3,22	O-RING 10,5X2,7 900-00.101.06 900-00.101.06	520331701
4,5	TUBE 8022-00.720.00 8022-00.720.00	586740101
7,8	HOSE CONNECTOR 915-00.600.00 915-00.600.00	520332501
714,16	HOSE 8022-00.715.00 8022-00.715.00	585959101
8,20	LOCK NUT SYSTEM 1/2" 911-00.000.13 911-00.000.13	520332101
