ENGINE TRANSMISSION KOHLER COURAGE 15 HP, SV470-0002, SV470-0006, 2004-01
>
IGNITION SYSTEM
Back to
ENGINE TRANSMISSION
KOHLER COURAGE 15 HP, SV470-0002, SV470-0006, 2004-01
IGNITION SYSTEM
ENGINE TRANSMISSION
KOHLER COURAGE 15 HP, SV470-0002, SV470-0006, 2004-01

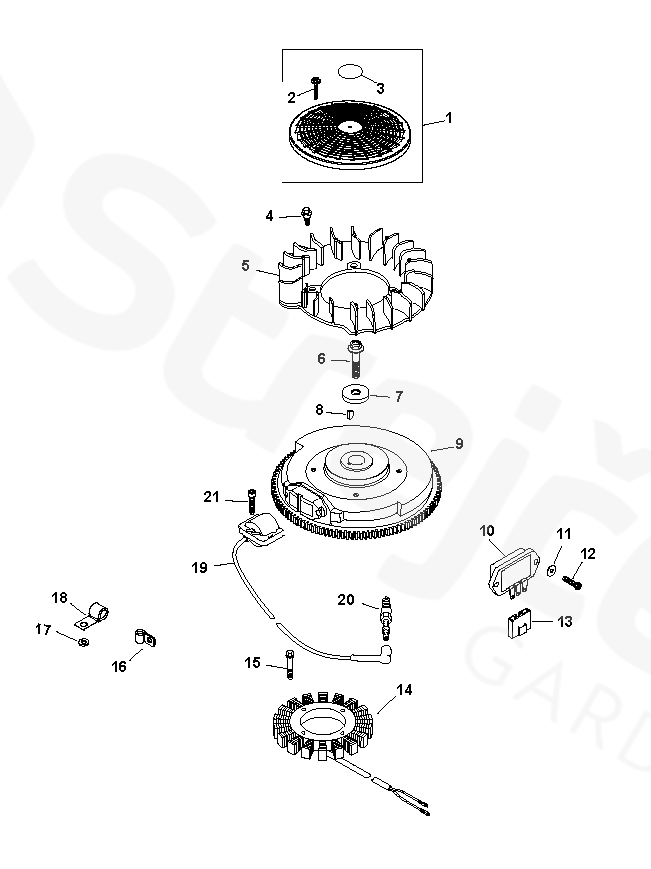

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
KOHLER COURAGE 15 HP, SV470-0002, SV470-0006, 2004-01
1
COVER
531029727
2
SCREW
531029924
3
DECAL
531029753
4
BOLT
531029731
5
FLYWHEEL
544956701
6
SCREW
531029573
7
WASHER
531029574
8
KEY
531029511
9
FLYWHEEL
531029921
10
CONTROL
531029585
11
WASHER
531029729
12
SCREW
531029739
13
CONNECTION
531029583
14
STATOR
531029582
15
SCREW
531029581
16
CLIP
531029747
17
WASHER
531029748
18
CLIP
531029923
19
IGNITION MODULE
531029976
20
SPARK PLUG
531029975
21
SCREW
531029579
WIRE
NOT SHOWN
531029754
