Jonsered
>
Leaf Blowers
>
B2126 B2126 (ROW), 2008-03
>

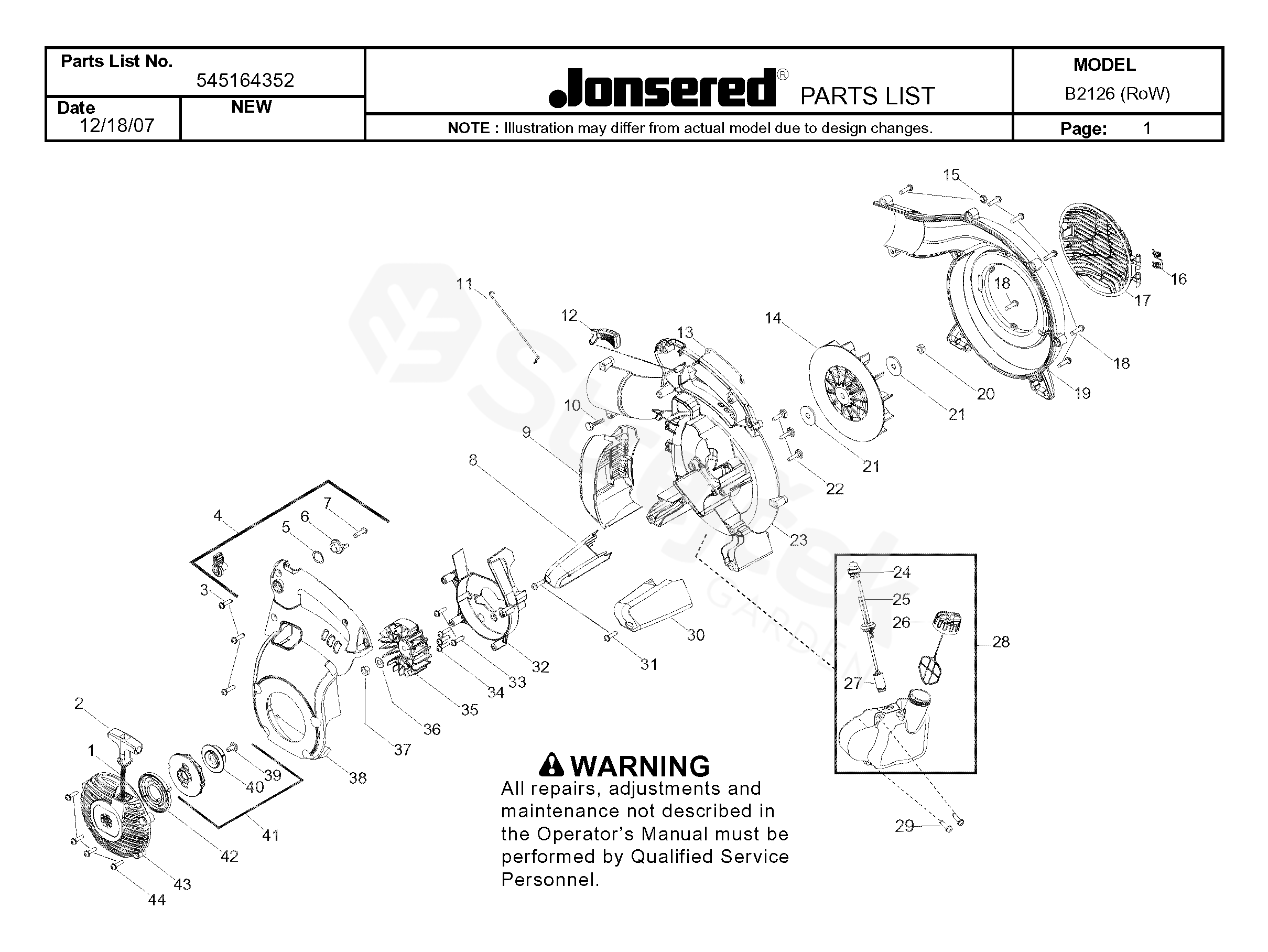

HOUSING
Back to
B2126
B2126 (ROW), 2008-03
HOUSING
B2126
B2126 (ROW), 2008-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
B2126 (ROW), 2008-03
1
KIT
545081817
2
HANDLE
545043205
3
SCREW
530015814
4
CONTROL
545008020
5
PODLOŽKA Washer - Wave
530015147
6
RATCHET CRUISE CONTROL
545111501
7
SCREW
530015814
8
FOOT
545140302
9
MUFFLER COVER
545157902
10
SCREW
545003502
11
LANKO Wire - Linkage
545111301
12
THROTTLE
545111602
13
LANKO Wire - Handle ground
545131701
14
IMPELLER
545173201
15
MATICE Nut - Blower tube
530015197
16
PRUŽINA Spring - Vac door
545111101
17
COVER
545111204
18
SCREW
530015814
19
HOUSING
545113003
20
MATICE Nut - Impeller
545147101
21
PODLOŽKA Washer - Impeller
545164501
22
SCREW FUEL TANK RETAINER
530016445
23
HOUSING
545110003
24
PURGE
530047721
25
KIT
545081841
26
TANK CAP
545073101
27
FILTER
530095646
28
FUEL TANK ASSY
545108902
29
SCREW
530015814
30
FOOT
545140402
31
SCREW
530015814
32
SCROLL, FLYWHEEL
545132801
33
SCREW
530015814
34
SCREW
530015810
35
FLYWHEEL ASSY
545088801
36
PODLOŽKA Washer
530015828
37
MATICE
530016134
38
COVER
545108803
39
SCREW
545112801
40
HUB
545140801
41
KIT
545081818
42
PRUŽINA
530042095
43
HOUSING
545111802
44
SCREW
530015810
