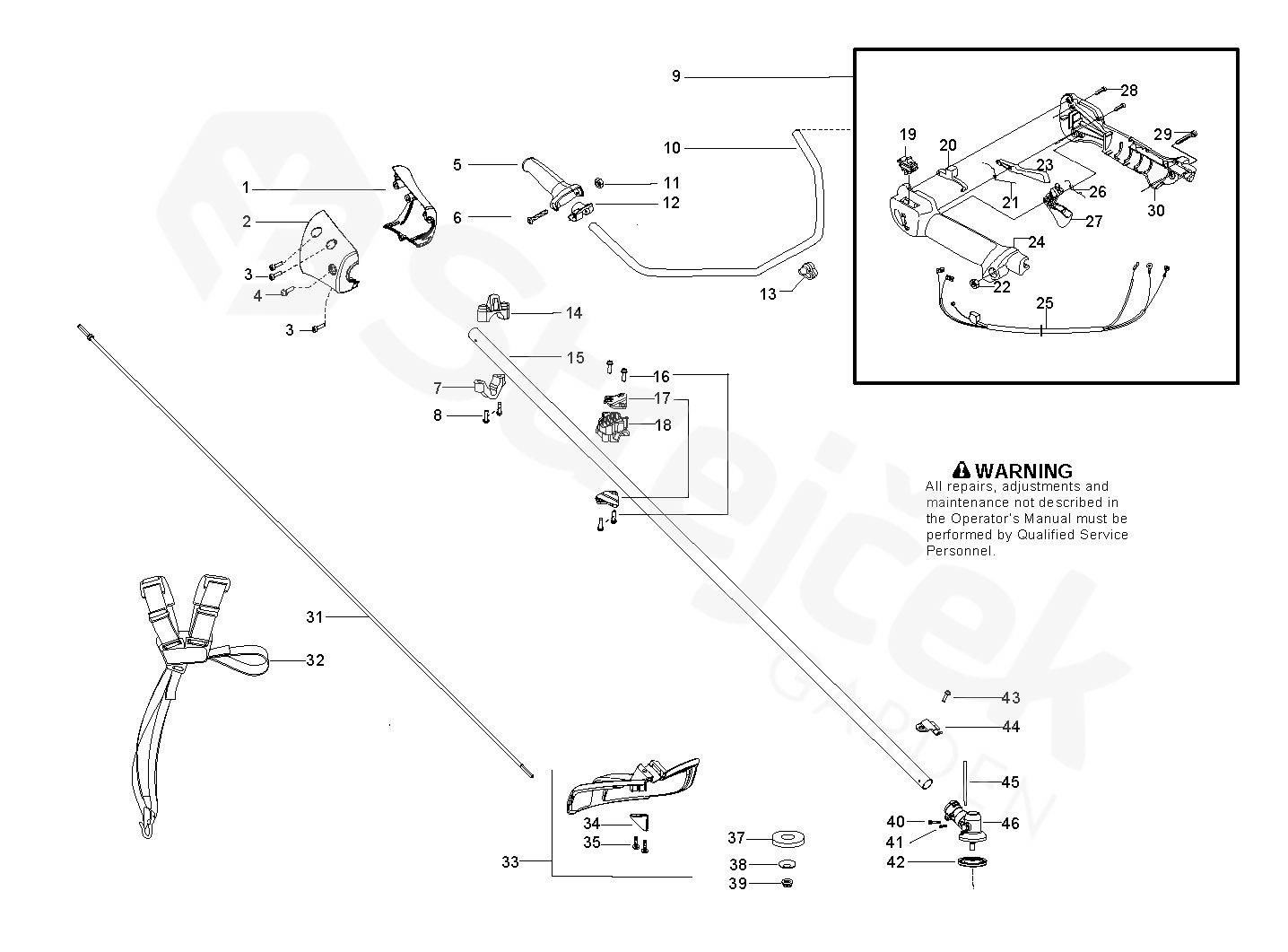

Spare parts - Partlist - BC2128 BC2128, 952715763, 2010-08, EU_AU - SHAFT & HANDLE

Everything for your machines

BC2128 BC2128, 952715763, 2010-08, EU_AU

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For BC2128, 952715763, 2010-08, EU_AU

1	CONE If serial number 2010-72N and lower, please use the following parts: 545036402 If serial number 2010-72N and lower, please use the following parts: 545036402	574810702
2	CONE If serial number 2010-72N and lower, please use the following parts: 545036502 If serial number 2010-72N and lower, please use the following parts: 545036502	574810302
3	SCREW If serial number 2010-72N and lower, please use the following parts: 530016448	530016449
4	SCREW If serial number 2010-72N and lower, please use the following parts: 530016449	530015805
5	HANDLE	537172810
6	SCREW IHSCFM	503200245
7	CLAMP	545056601
8	SCREW	530015940
9	THROTTLE ASSY	545125502
10	HANDLEBAR	502199503
11	HEXAGON NUT	731231401
12	BRACKET	537172903
13	SKOBA	502211201
14	CLAMP	545113301
15	KIT	575776301
16	SCREW	530015814
17	BRACKET	530058563
18	BRACKET	545058502
19	SWITCH	537419001
20	STARTER THROTTLE LOC	537160704
21	PRUŽINA	537174301
22	HEXAGON NUT	503221013
23	THROTTLE LOCKOUT	506495102
24	HANDLE HALF	537160205
25	ASSEMBLY	545125801
26	SPRING THROTTLE TRIG	537174201
27	THROTTLE CONTROL	506495002
28	SCREW IHSCT	503216618
29	SCREW IHSCFM	503200735
30	HANDLE HALF	537160304
31	HRÍDEL	545007507
32	HARNESS	544845802
33	GRASS BLADE GUARD	545081703
34	HADIČKA	530052286
35	SCREW	530015814
37	OPĚRNA MISKA	503890101
38	OPĚRANÁ PŘÍRUBA	537285601
39	MATICE	503856301
40	SCREW	530016014
41	SCREW	545003902
42	DRIVER ASSY	537234901
43	SCREW	530015771
44	BRACKET	530057554
45	STOP	502285901
46	BEVEL GEAR	530096295
	NÁSTRČNÝ KLÍČ	502114602
